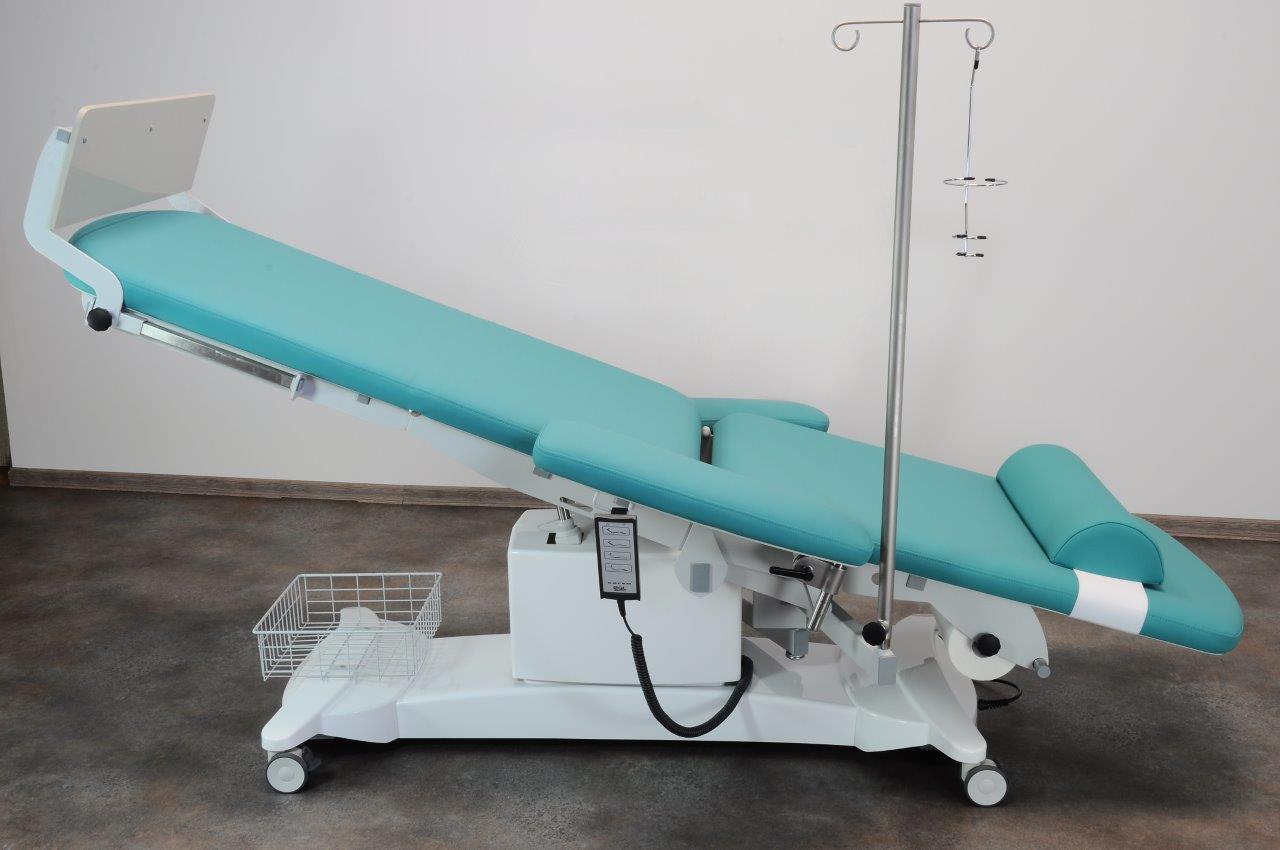

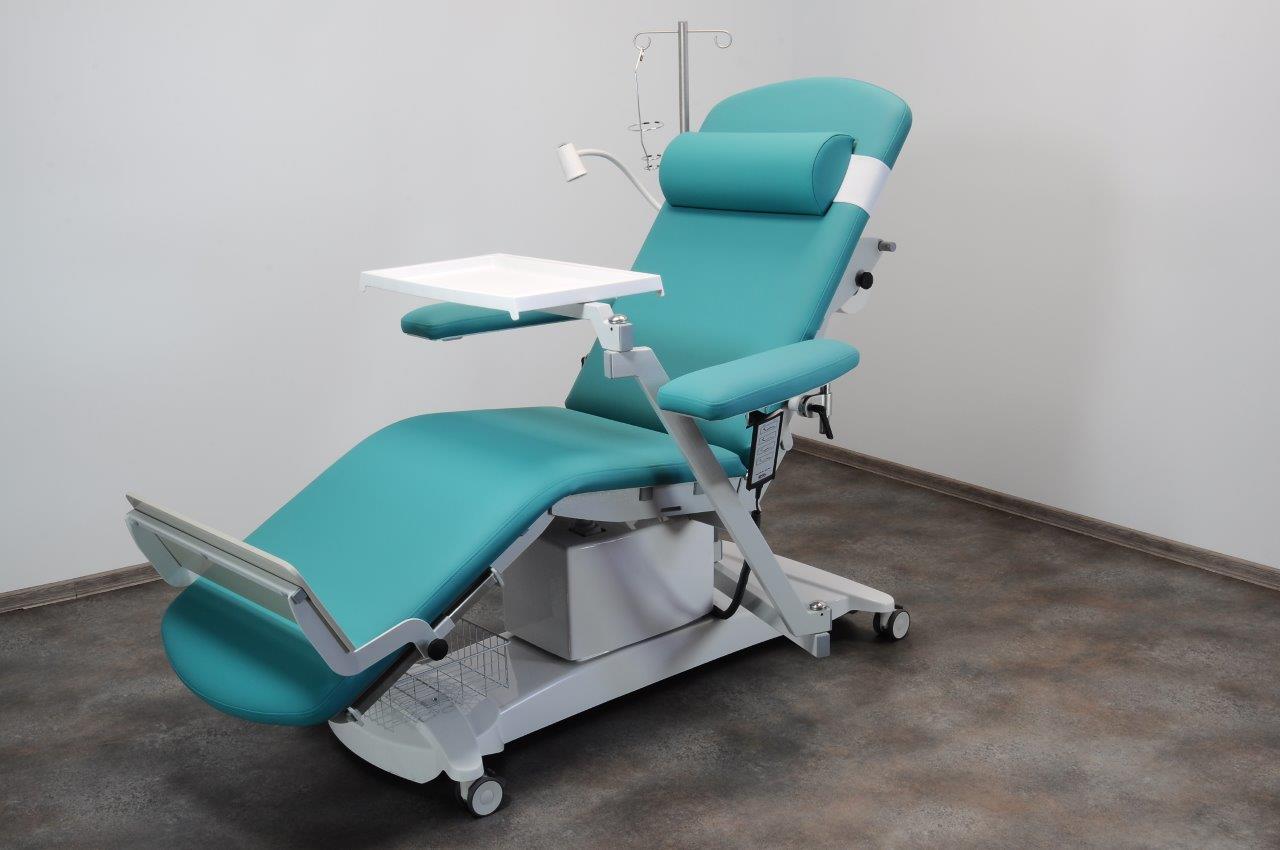

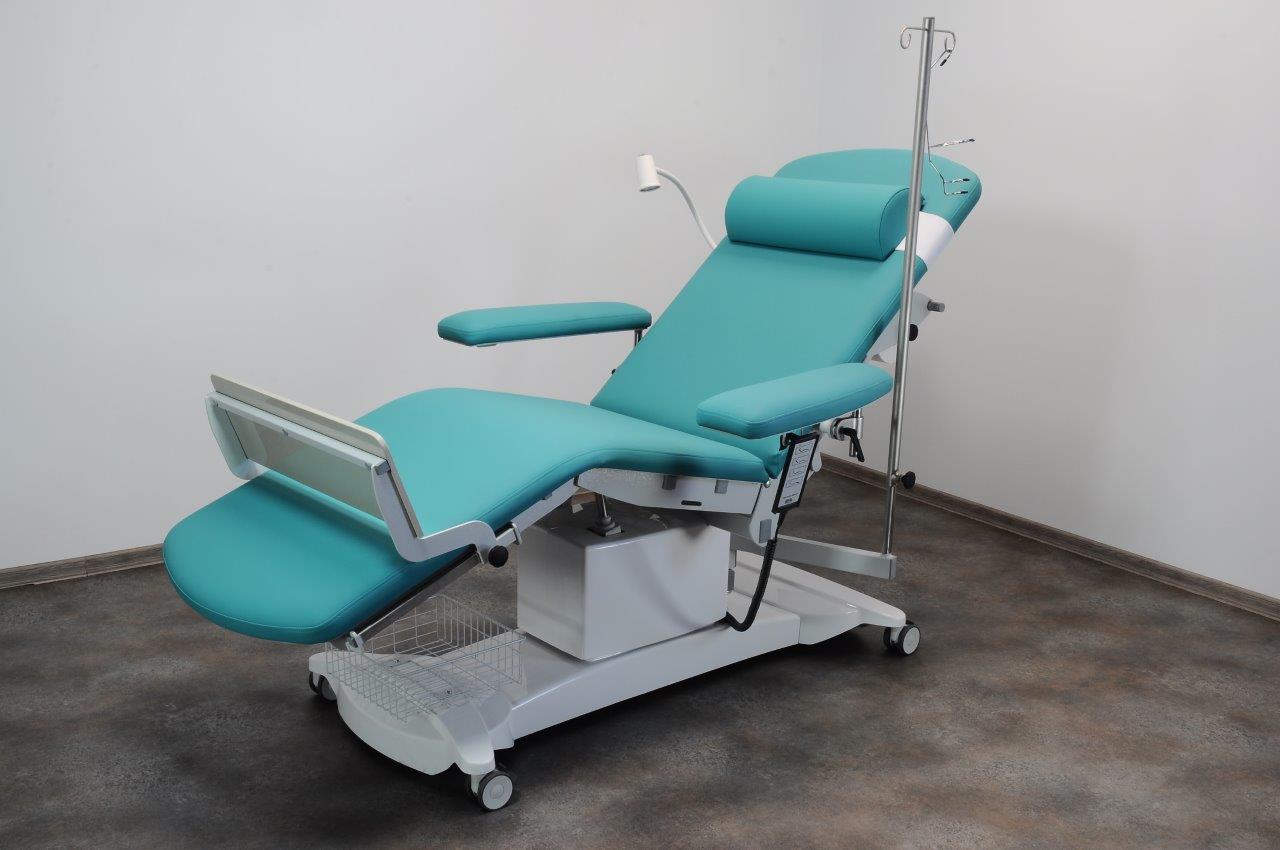

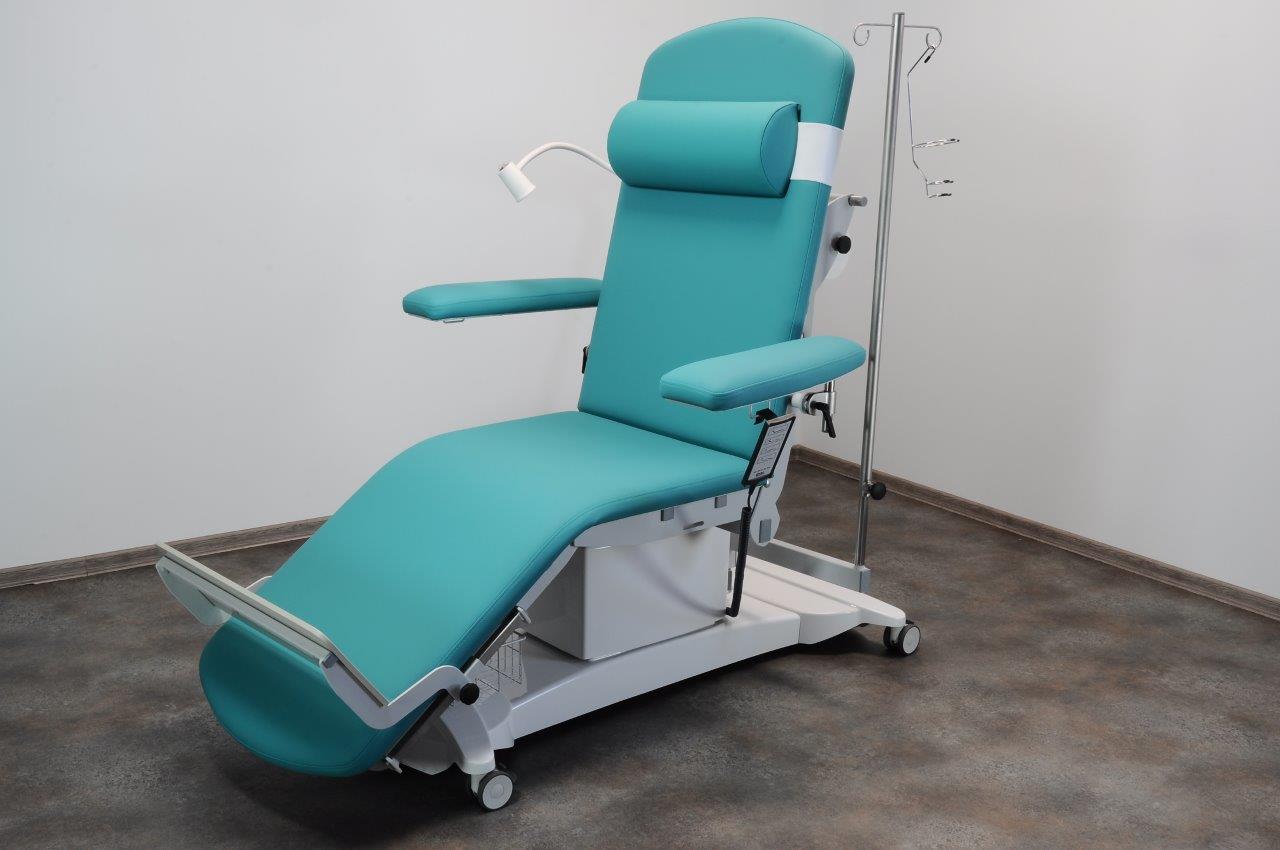

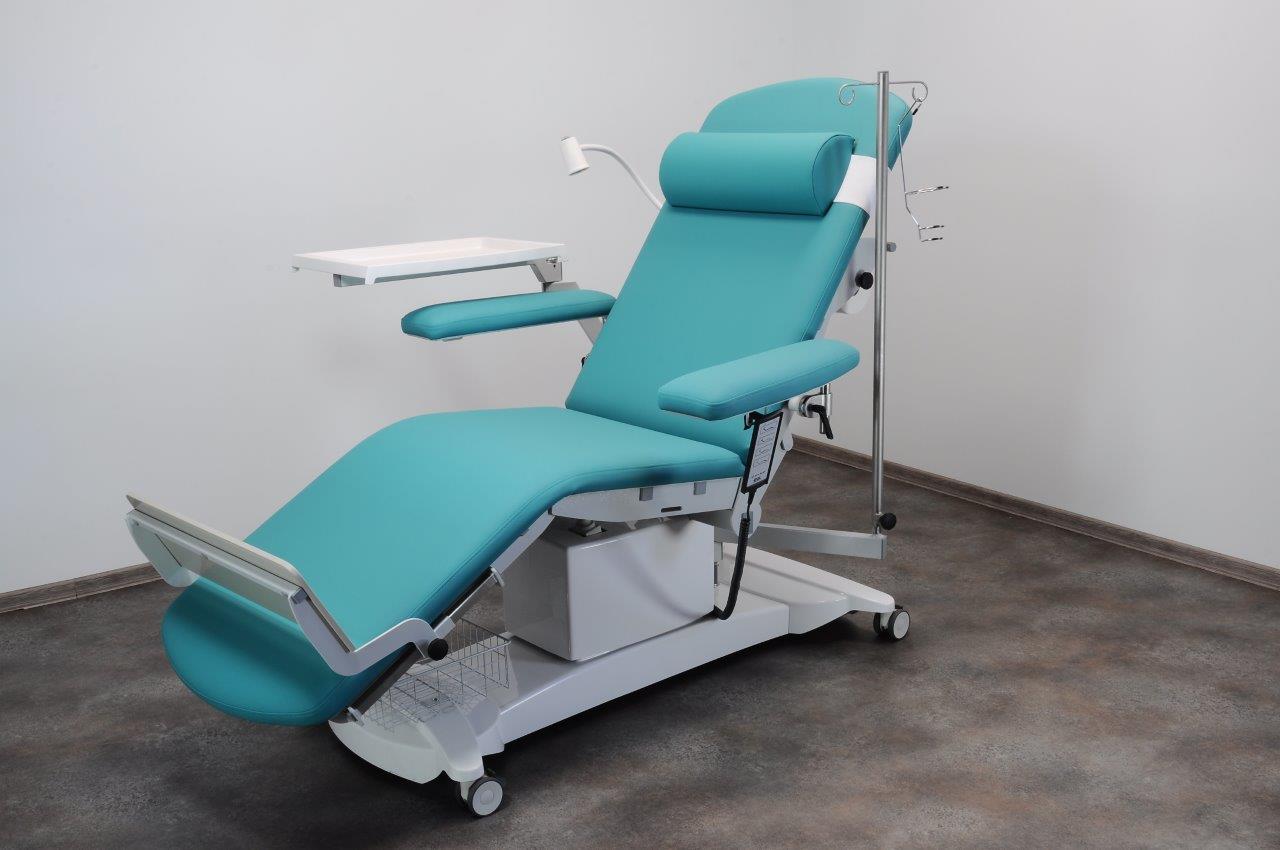

GOLEM DIA – transfusion and dialysis chair

Configure product

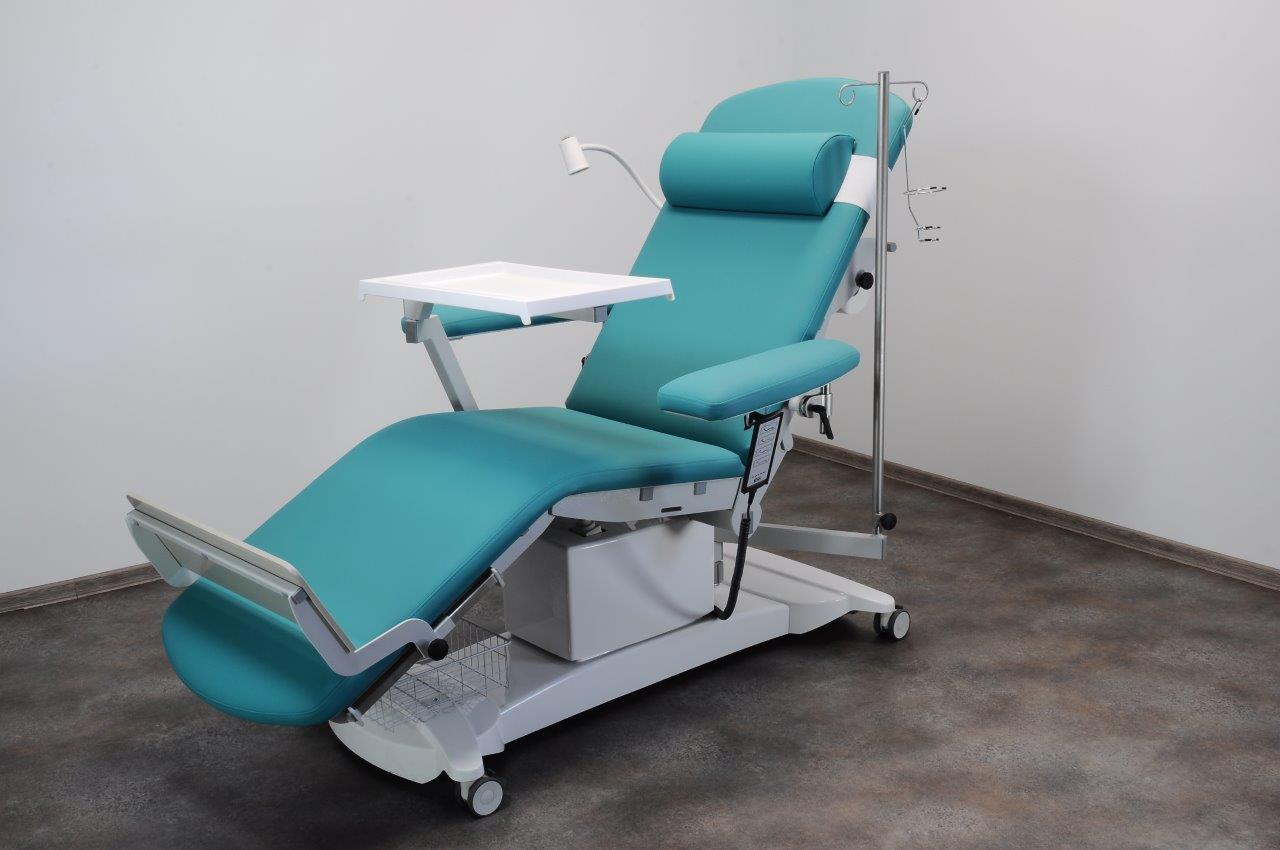

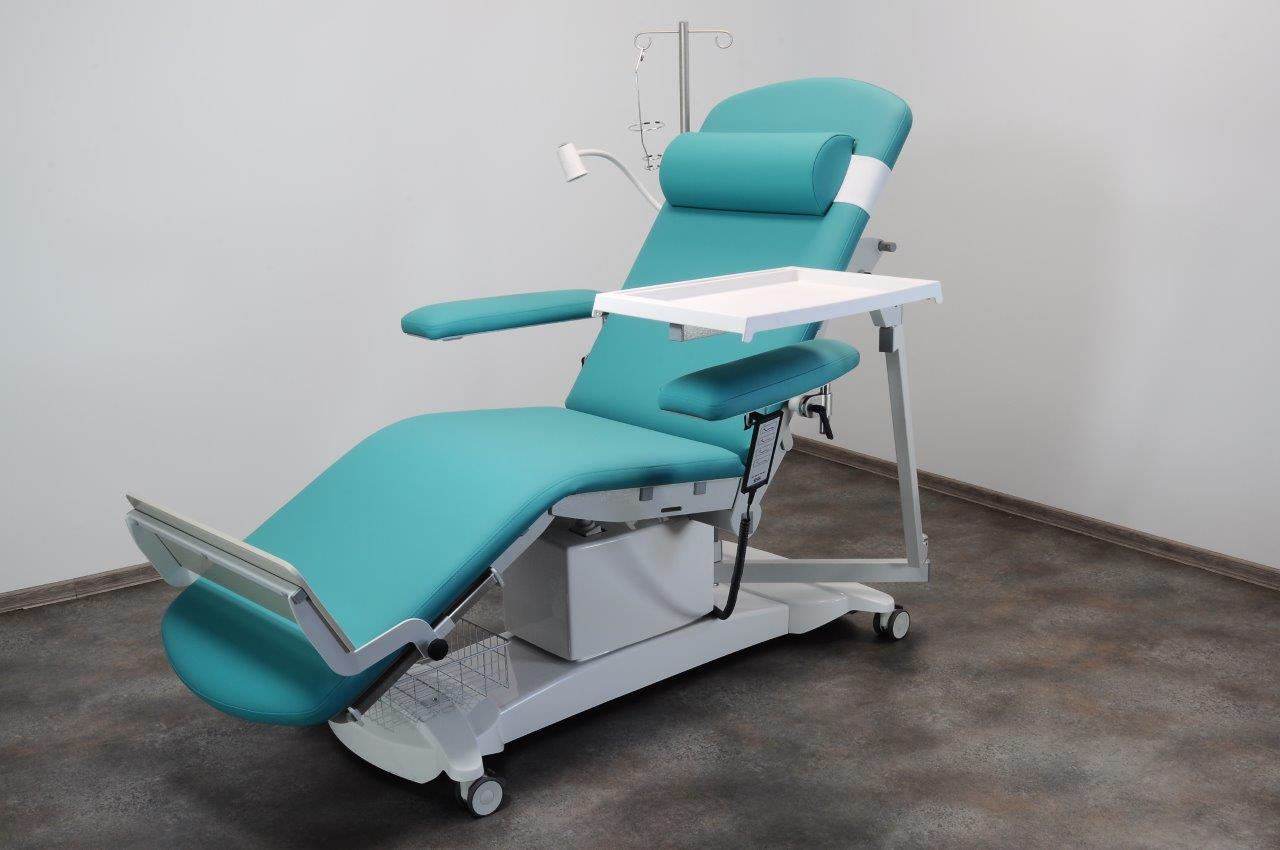

Armchair is the optimal solution for long lasting

stay of patient during transfusion
or dialysis. Comfortable armchair for all
patient positions. Travelling version with
75 mm braked wheels. Modern design with
soft upholstery and white washable plastic
covers. The three-segment work area with
overall dimensions 640 × 2 200 mm is
covered with artificial leather in color of
your choice. Working area is divided into
backrest, seat and leg segment. Patient
comfort will also provide a headrest
whose position can be adjust for patient
needed. Artificial leather is washable and
disinfectable with a certificate for use in
healthcare.
Standard equipment is both side use
infusion stand, height adjustable foot
support, holder of paper rolls, a basket for
personal things of a patient and a handle
for a more comfortable transport.

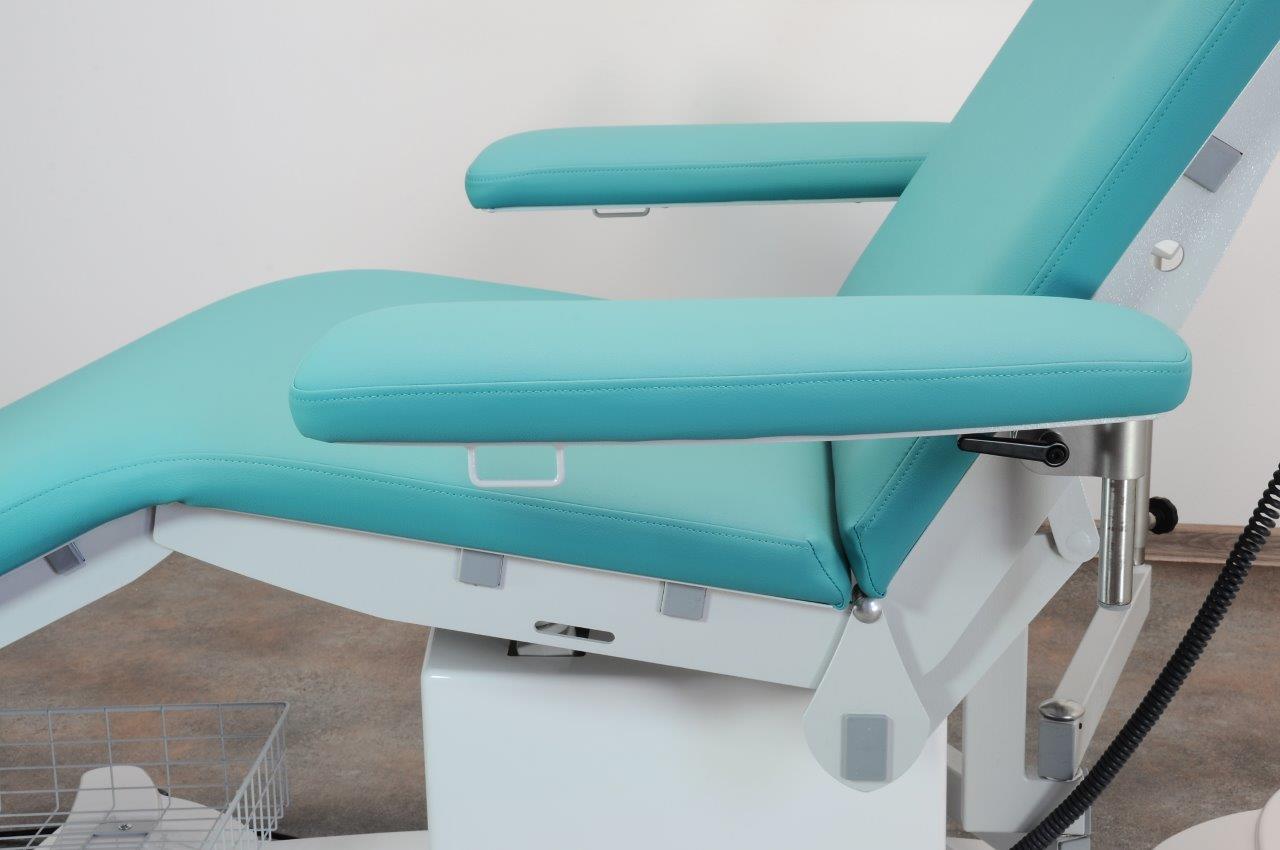

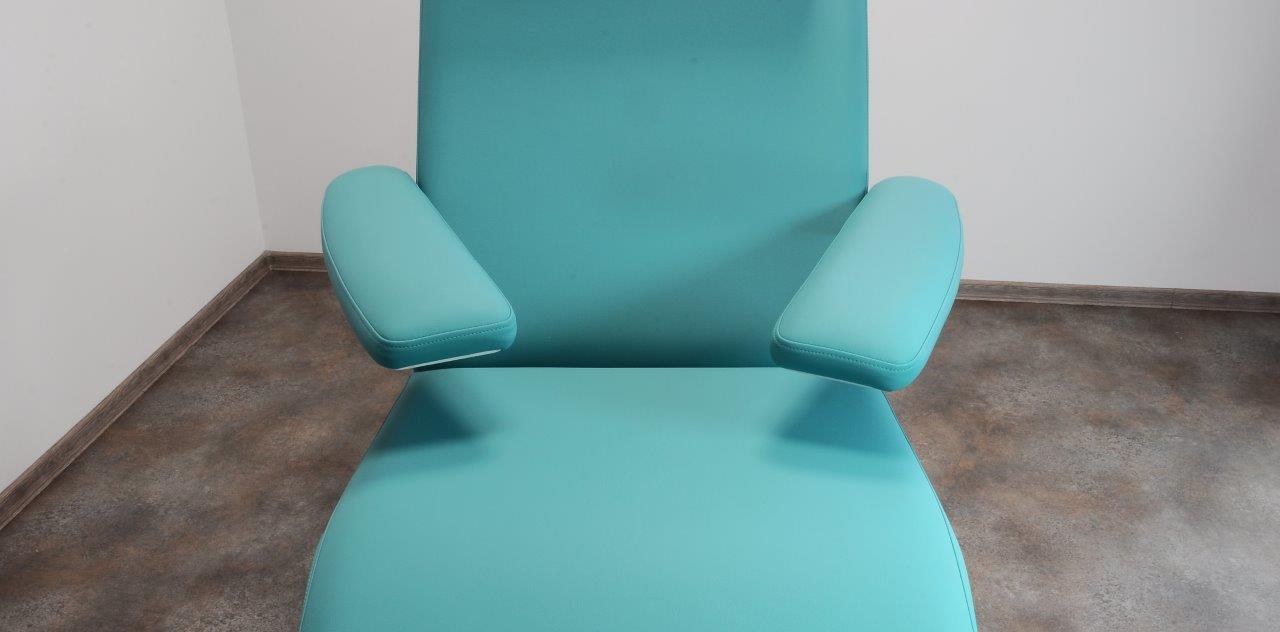

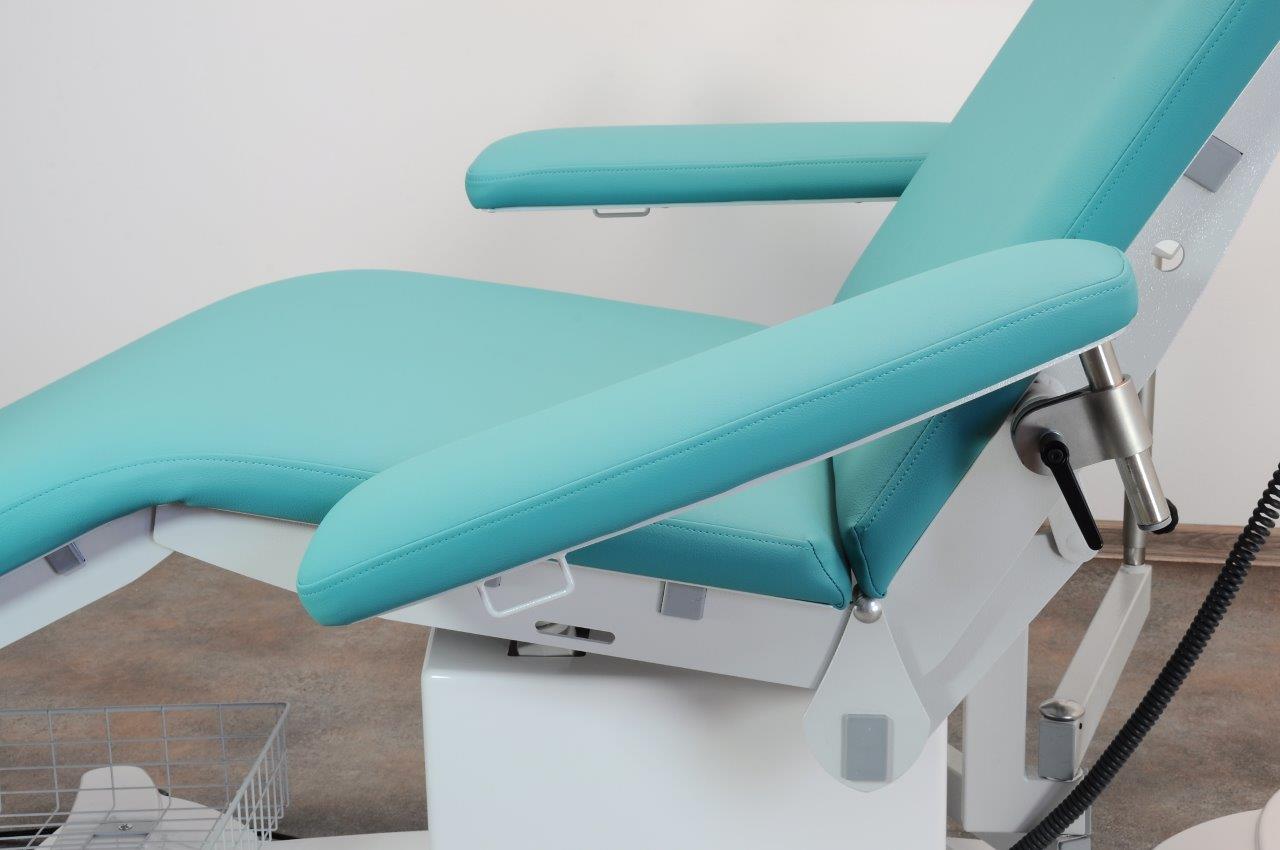

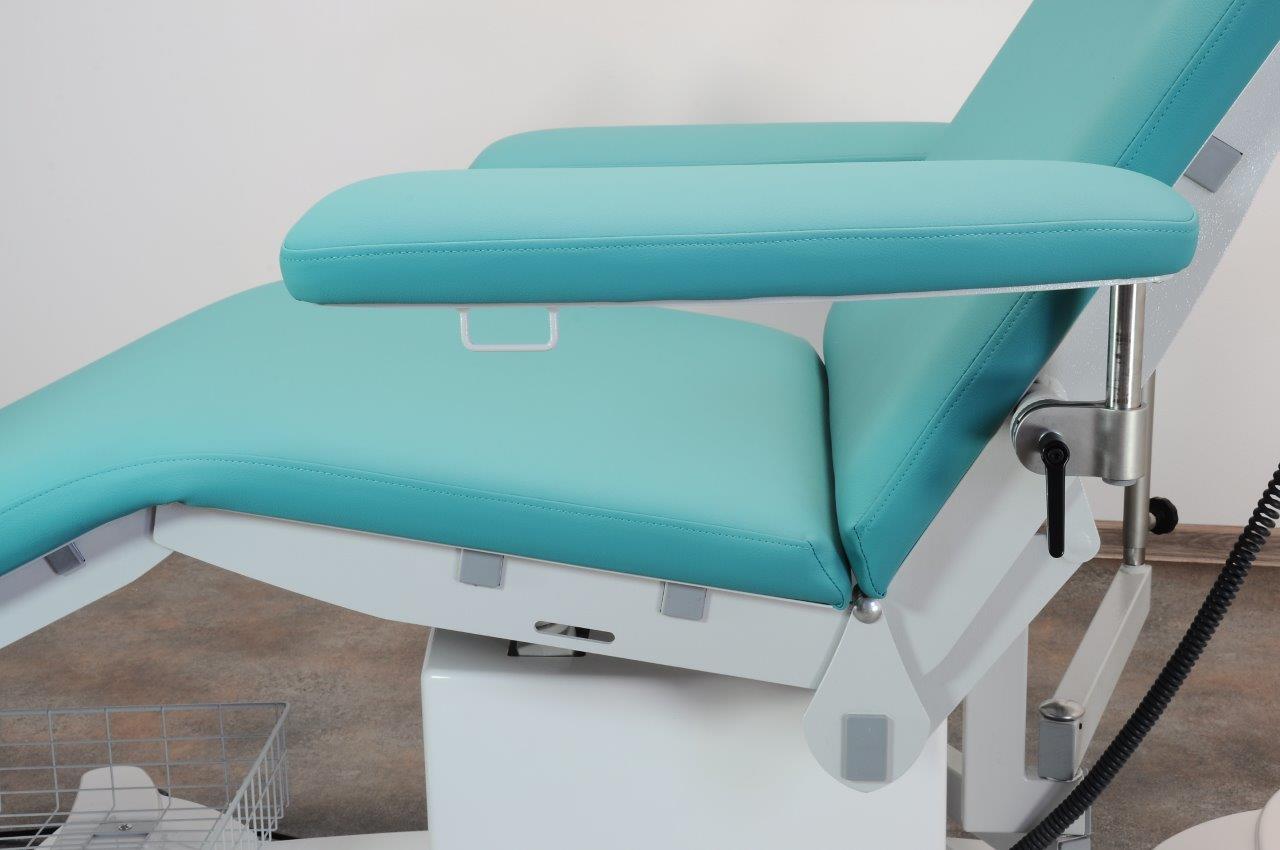

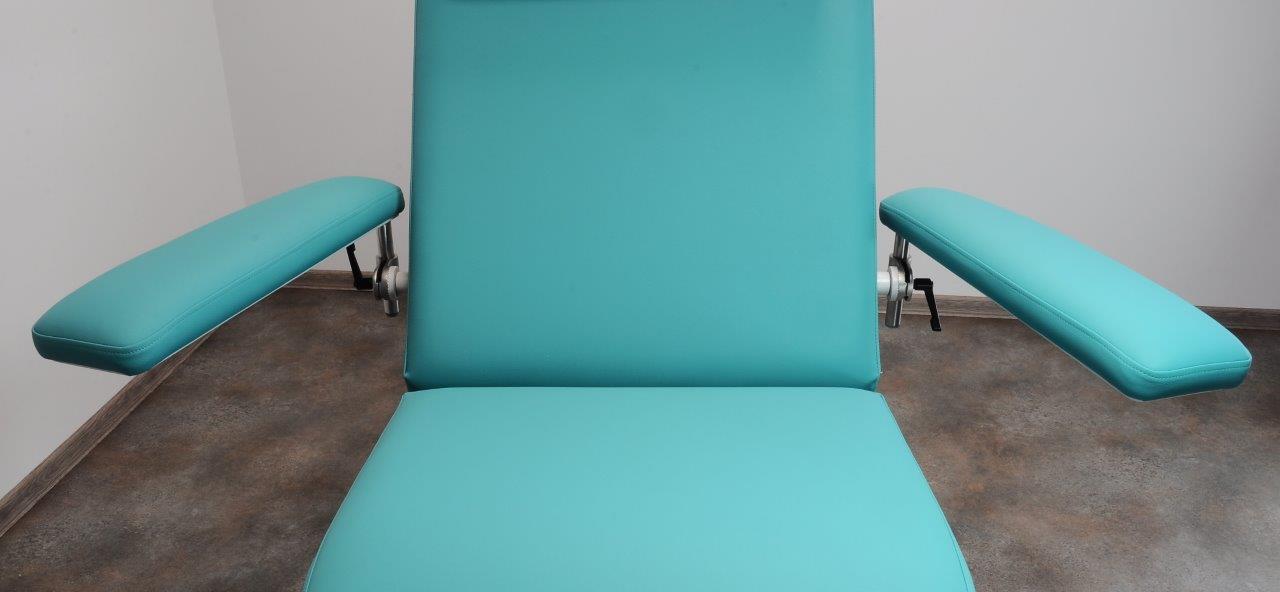

The armchair has removable washable
infusion armrests that can be adjusted
vertically in all directions and inclinations.
Special mechanism ensures that the
selected position of the support will be
retained even when changed inclination of
the backrest.
The installation dimensions of the armchair
are approx. 990 × 1 500 mm in the sitting
position, 990 × 2 200 mm in the lying
position (including armrests). Clearance
profile without armrests is 750 mm.
Load weight capacity 150 kg. Weight of
chair 80 – 110 kg



Product configurator GOLEM DIA – transfusion and dialysis chair

Name Picture ID Select
GOLEM DIA - transfusion and dialysis chair

Fixed height 560 mm, back inclination adjustable by electric drive -13 °
to + 75 °, foot segment adjustable by electric drive + 20 ° to -40 °, seat
inclination (Trendelenburg) adjustable by electric drive 0 ° to 20 °, drive
control by hand pilot.

G 09 02
GOLEM DIA E - transfusion and dialysis chair

Height adjustable by electric drive 560 - 760 mm, adjustable back inclination
electric drive -13 ° to + 75 °, electrically adjustable foot segment + 20 ° to -40 °,
Trendelengurg position adjustable by electric drive 0 ° to 20 °, drive control
by hand pilot

G 09 03

Sampler

1B


2C


2D


3F


4B


5C


6D


5D


9B


9C


11H


11K


12D


11A


12H


13A


2A


9D


9E


Sampler S1

S1


S2


S3


S4


S5


S6


S7


S8



Basic information











Billing address










Delivery address












Basic information







Contact person











Billing address










Delivery address











* Required fields
Delivery time is 1-2 months, please contact your distributor for official offer include all details.
