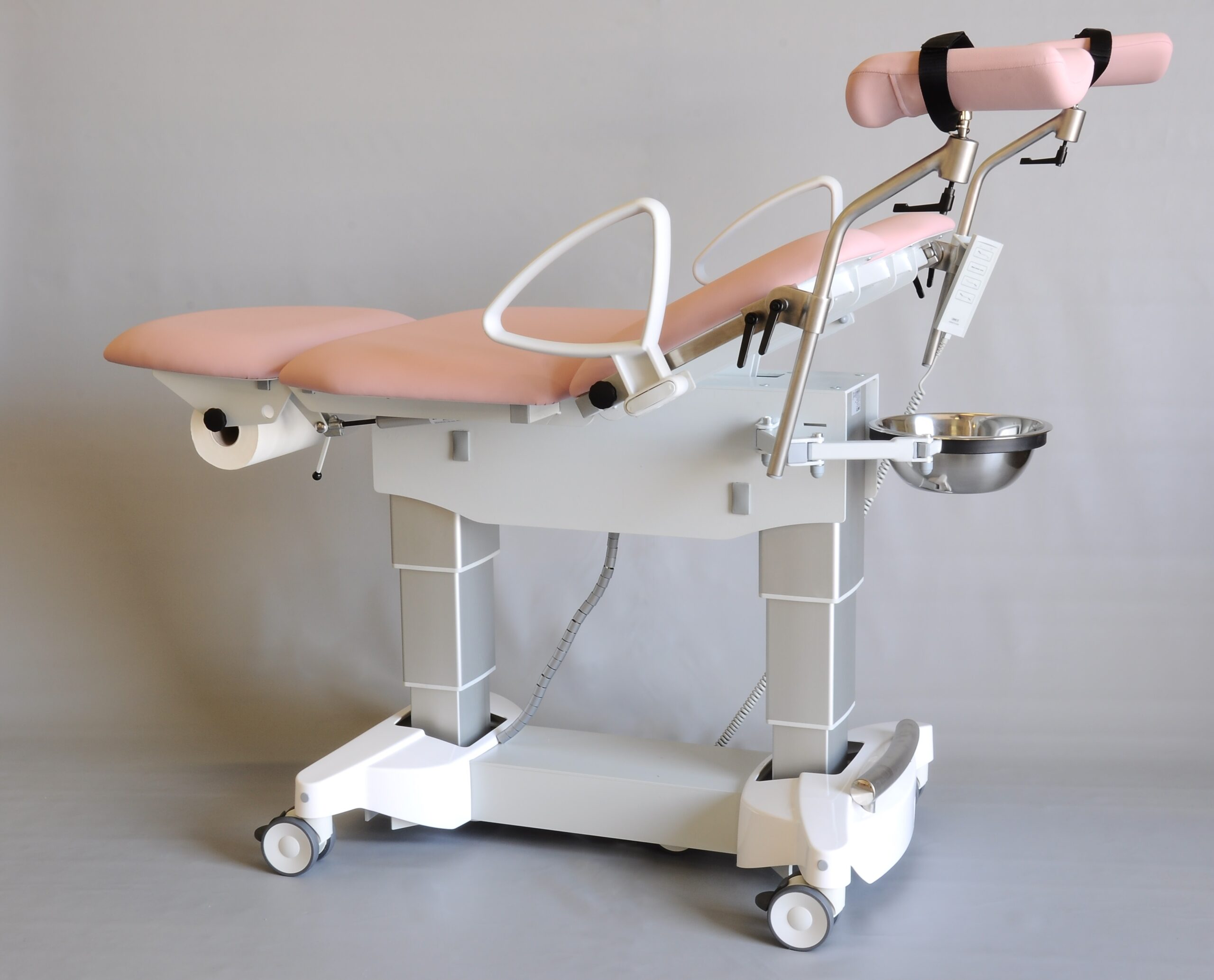

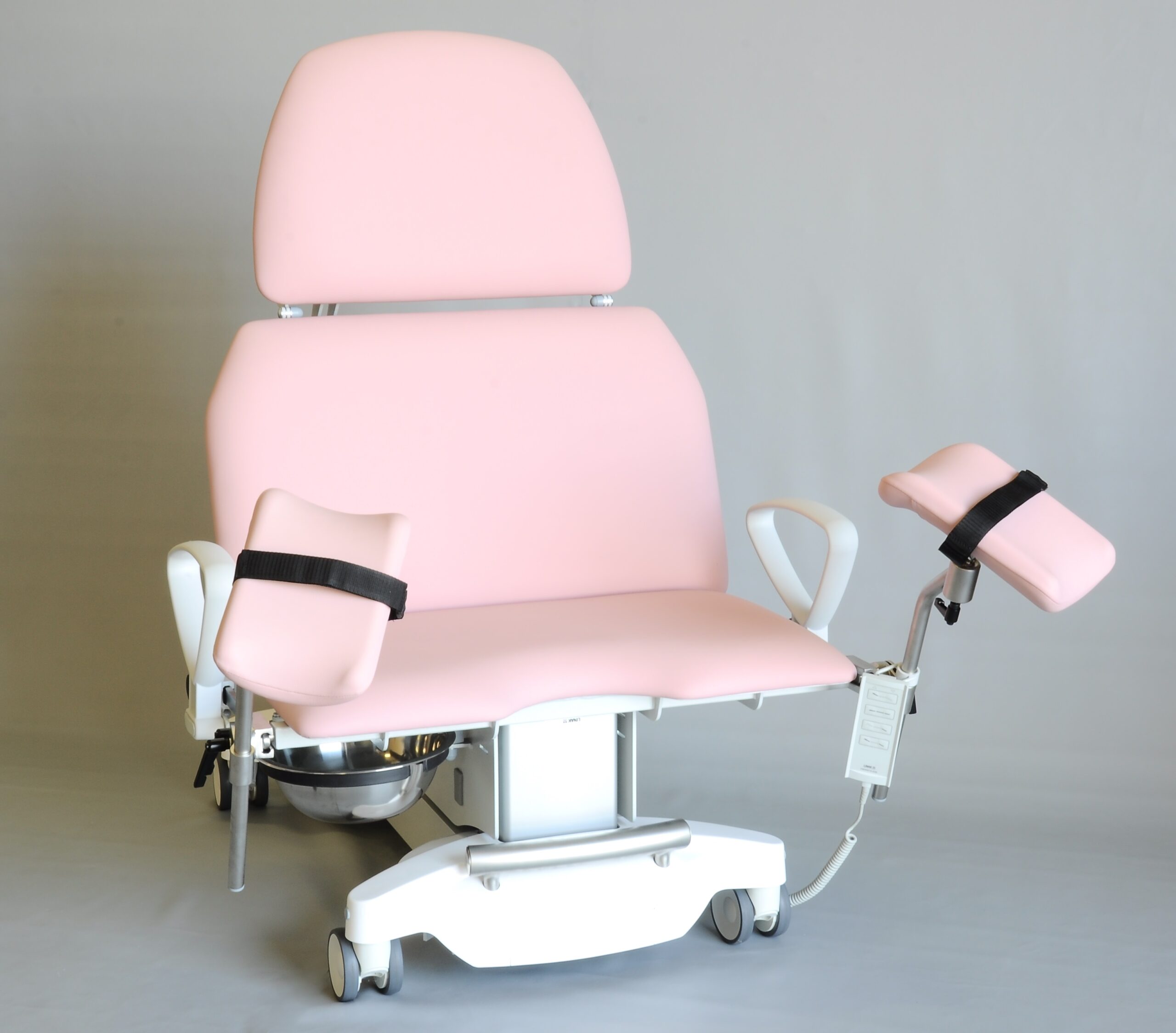

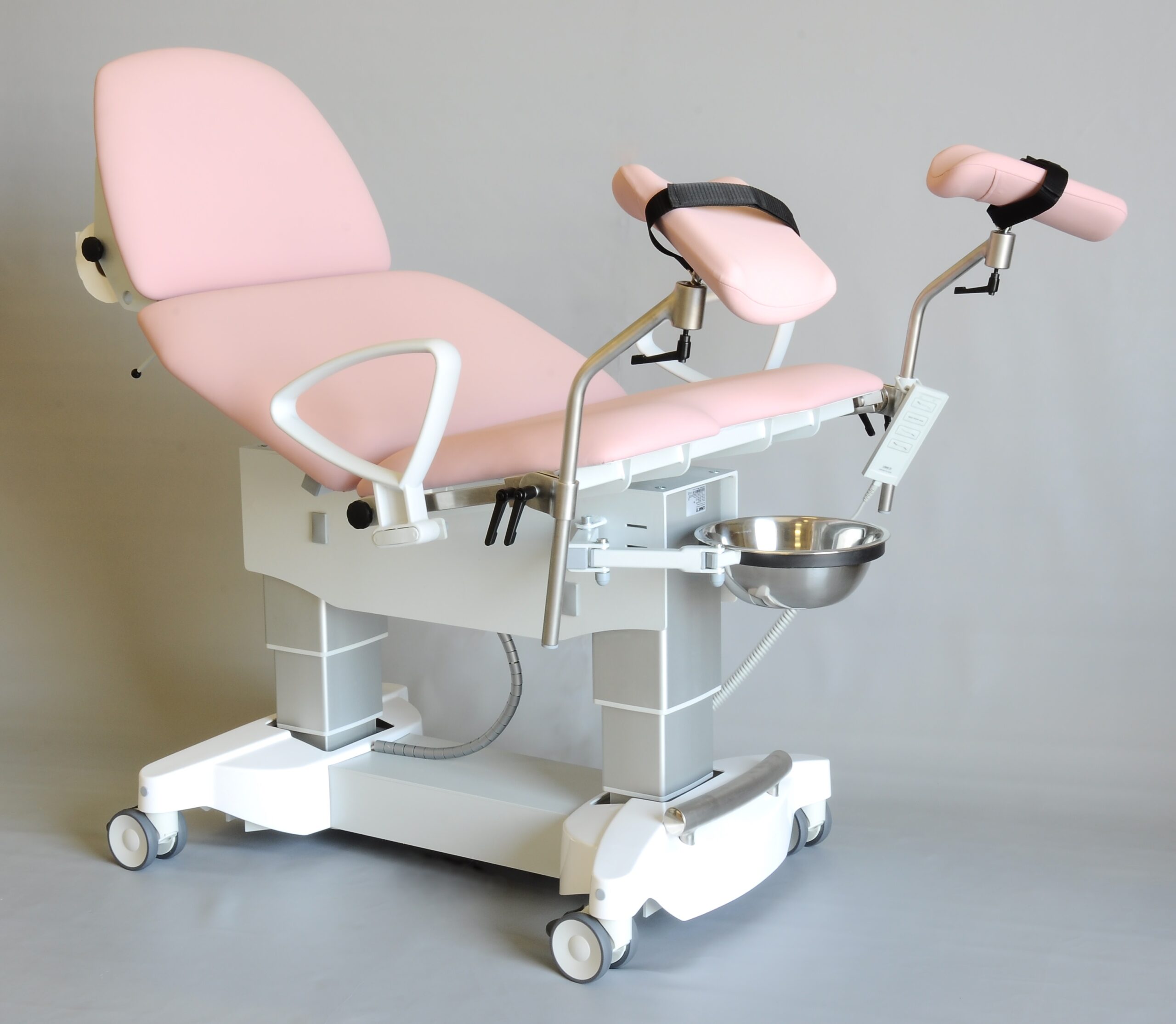

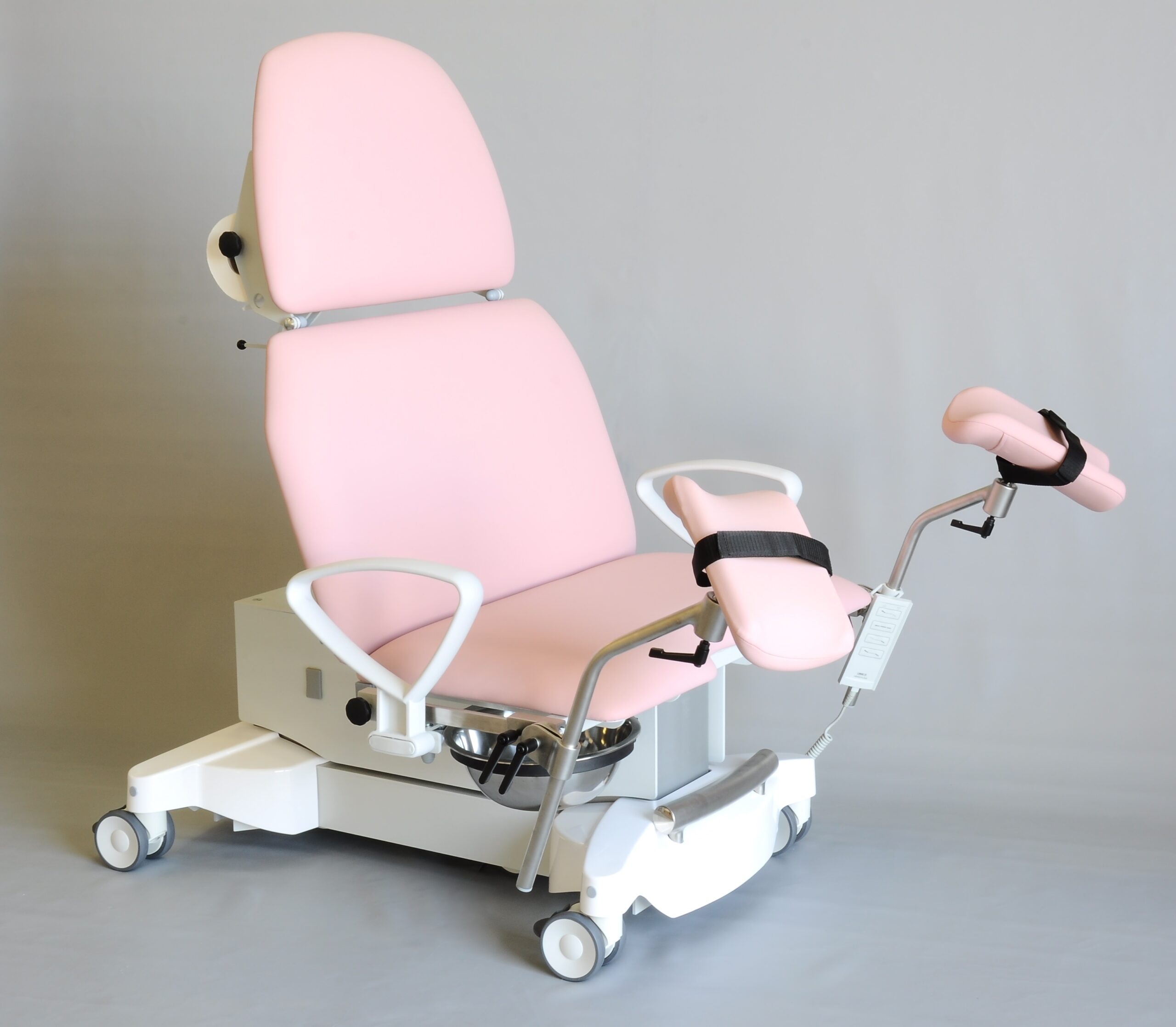

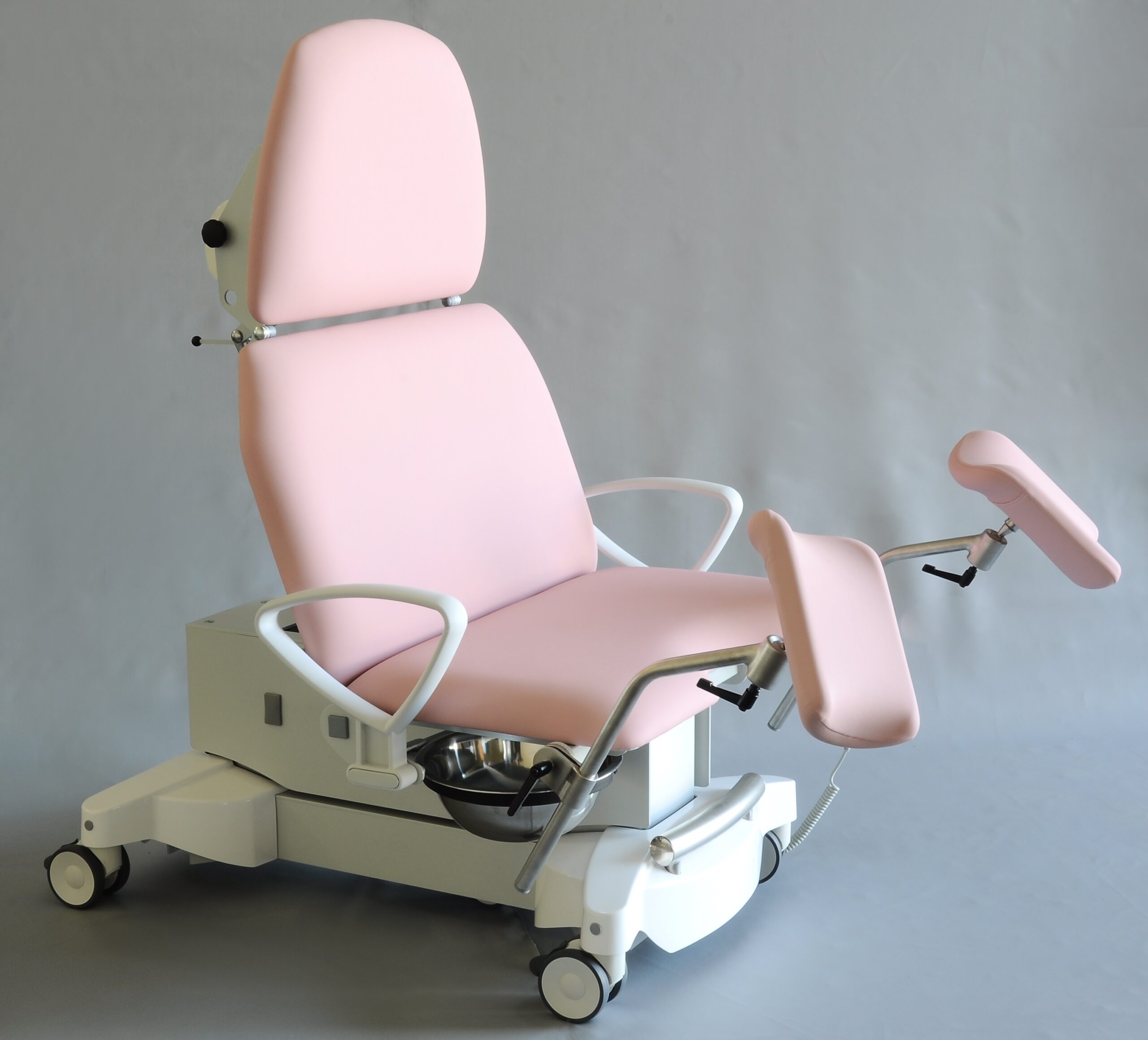

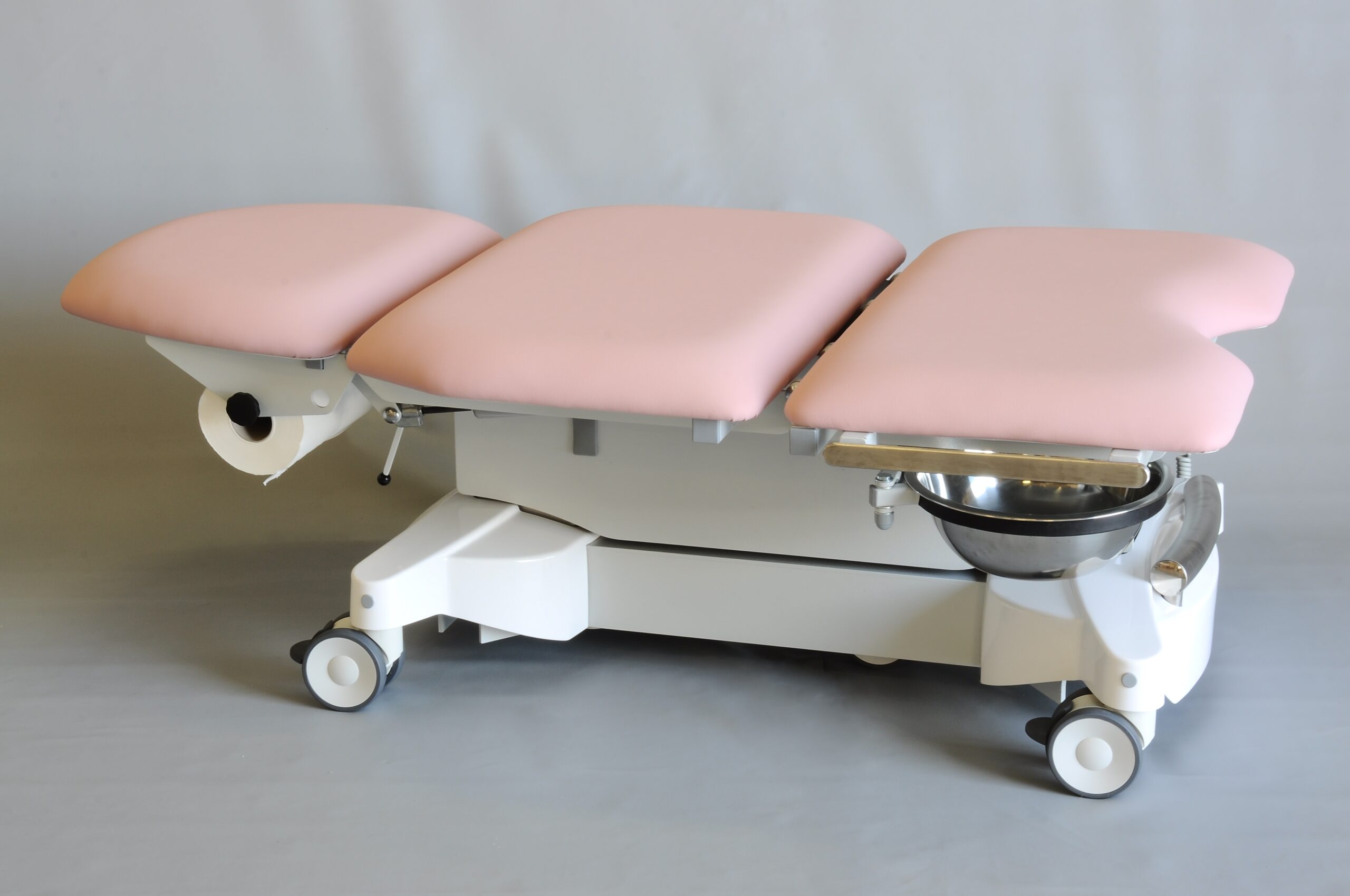

GOLEM 6ET version 250 for bariatric patients

table for gynaecology and urology GOLEM 6ET version 250

Gynecology chair for bariatric patients

Download PDF brochure GOLEM model 250

The modified version of the successful GOLEM 6ET table is designed primarily for the examination and intervention of bariatric patients, for whom it is intended mainly due to its increased load capacity, extended working surface and minimum entry height of 450 mm. Thanks to this, it is possible to enter a person directly from a wheelchair. Thanks to the sophisticated design, it is still possible to lift the patient up to a height of over 1,000 mm (front end of the seat).

The design of the table in this version is adapted for the comfort of the person being examined as well as the staff.

The table base is equipped with high quality braked wheels with increased load capacity. This makes the table completely stable during performance, yet it can be moved around if necessary without any effort from staff. Covering the base with plastic covers makes maintenance very simple.

The 820 mm wide work surface is covered with seamless leatherette in the colour of your choice and divided into a seat with a gyn opening, a backrest and a headrest. The lengths of the segments are: seat 470 mm, backrest 520 mm, head 430 mm, making a total length of 1 420 mm.

The table is fully equipped with: polyurethane goepels or heel support (according to your request) with articulated grip and fixing to the EURO rails along the seat (these are part of the standard equipment), removable patient handles with fixing to the EURO rails along the seat, doctor’s footrest, stainless steel bowl, paper roll holder. All elements can be easily and conveniently adjusted for patient and staff comfort.

After removing the guns and handrails, the patient can also enter the table from the side even lying position!

Weight of the table is 120 kg, load capacity 250 kg.

Table dimensions are approx. 1 000 x 1 500 mm.

Height is adjustable by electric drive 450-850 mm,

backrest tilt adjustment by electric actuator 0°+ 70°,

seat tilt adjustment (Trendelenburg) with electric actuator 0°+ 25°,

gas spring adjustment of the head section inclination ± 25°.

All electric drives are controlled by a hand control and position changes can be made even under full load.

Each table can be supplemented with additional accessories according to your wishes:

EURO rails around the backrest                                                                   code Nr. D 04 10

LED lamp on flexible neck                                                                             code Nr. D 06 05

colposcope holder for left/right hand of the doctor                                  code Nr D 06 80

bowl with drain and hose                                                                                code Nr. D 06 08

bowl with drain, hose and waste container                                                 code No. D 06 09

Accessories for mounting on EURO rails:

hand holder during infusion                                                                            code Nr. D 06 12

infusion holder                                                                                                    code Nr. D 06 13

mouthpiece holder                                                                                             code Nr. D 06 14

fastening strap                                                                                                    code Nr. D 06 15
