GOLEM 6ET model 200 for disabled, invalid, amputees and elderly patients

Configure product

table for gynaecology and urology GOLEM 6ET model 200

Specially designed to provide medical care for disabled, invalid, amputees and elderly patients

Download PDF brochure GOLEM 6ET model 200

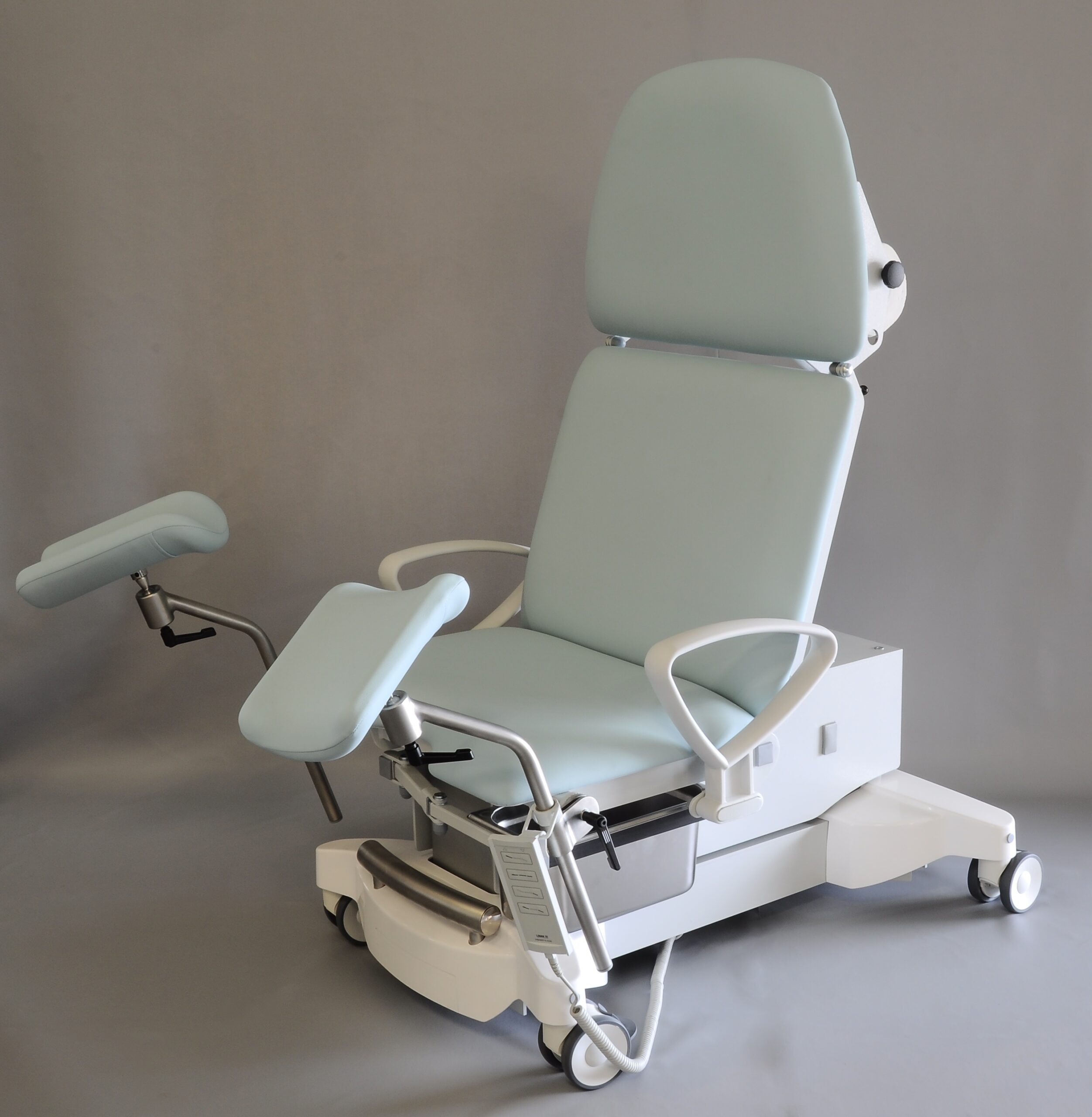

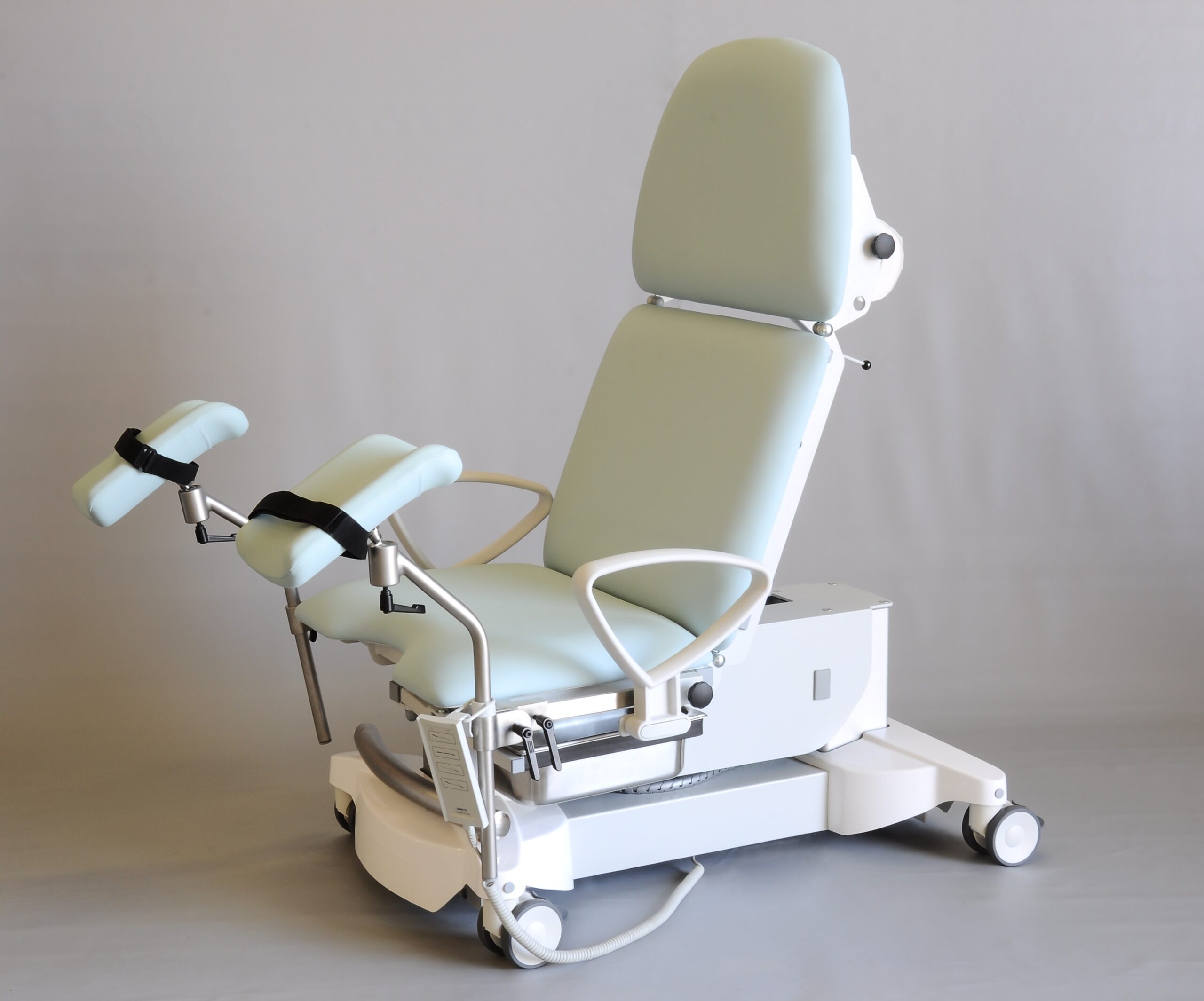

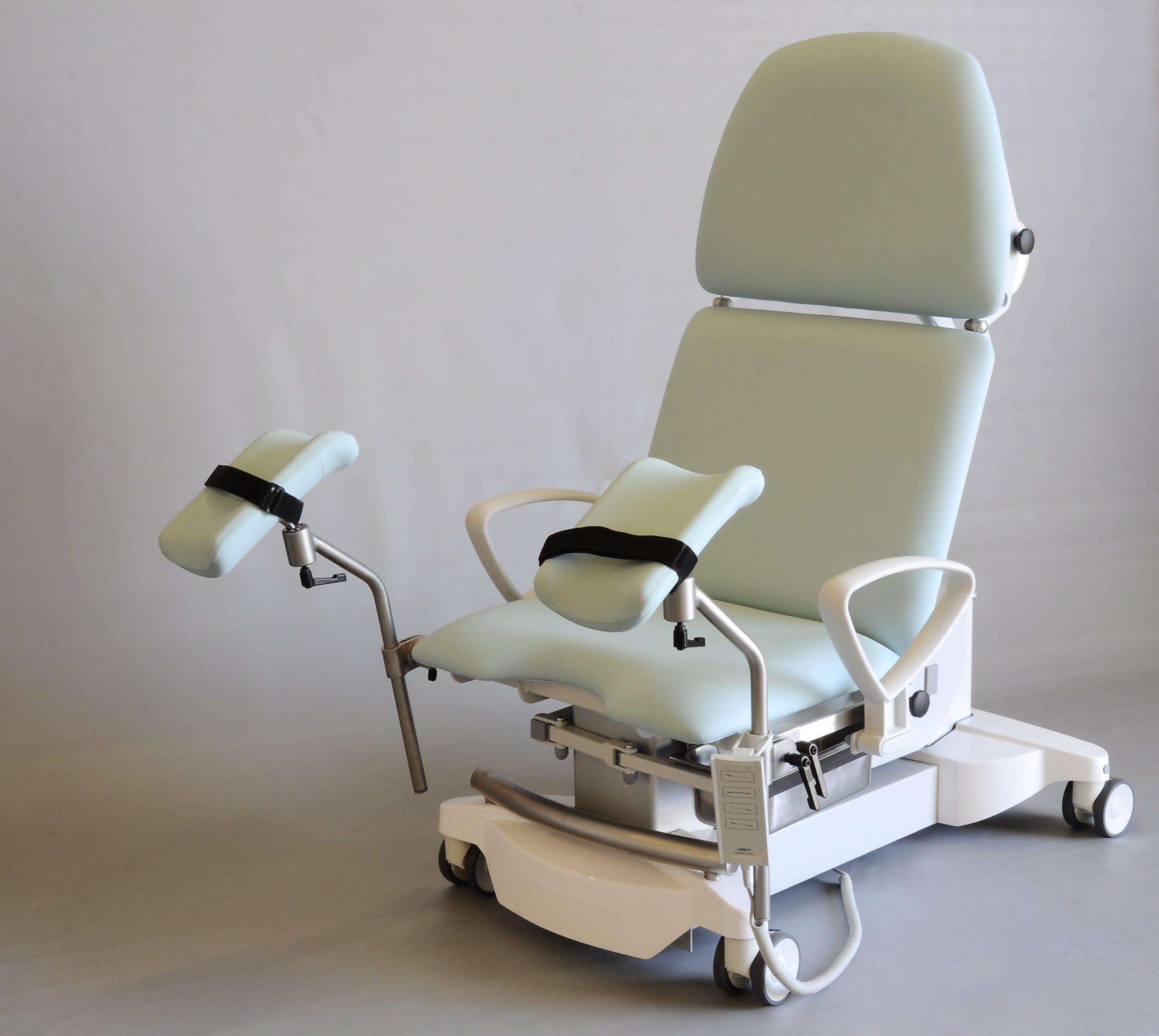

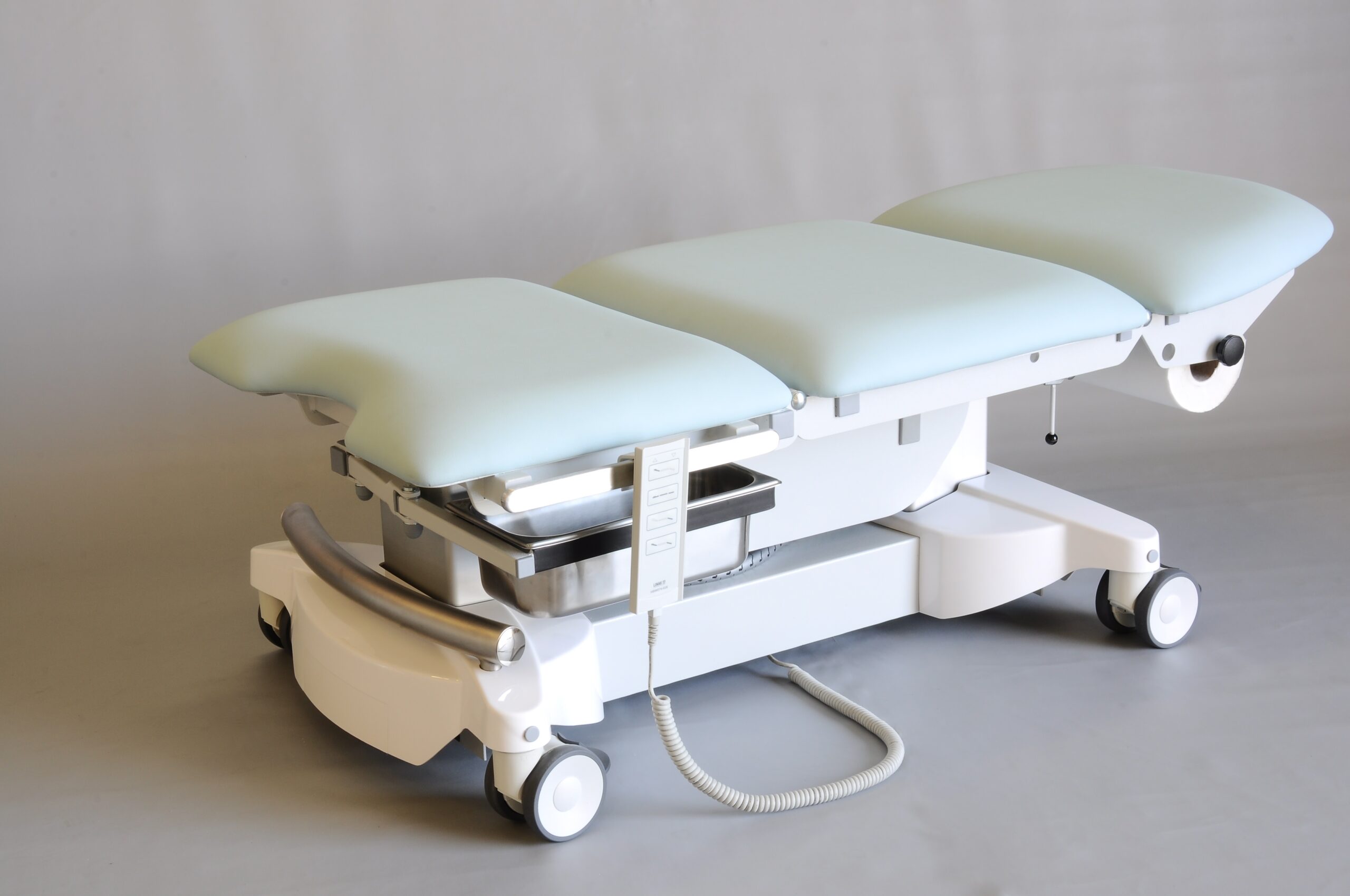

The modified version of the GOLEM 6ET table is designed primarily for examinations and interventions of the physically handicapped, for which it is mainly intended with its minimum entry height of 450 mm. This enables the person to enter directly from a wheelchair. Thanks to the sophisticated design, the patient can still be lifted up to a height of over 1,000 mm (front end of the seat).

The design of the table in this version is adapted for the comfort of the person being examined as well as the staff.

The table base is equipped with high quality braked wheels with increased load capacity. This makes the table completely stable during performance, yet it can be moved around if necessary without any effort from staff. Covering the base with plastic covers makes maintenance very simple.

The 620 mm wide work surface is covered with seamless leatherette in the colour of your choice and divided into a seat with gyn opening, a backrest and a headrest. The lengths of the segments are: seat 470 mm, backrest 520 mm, head 430 mm, making a total length of 1 420 mm.

The table is fully equipped with: polyurethane goepels or heel support (according to your request) with articulated grip and fixing to the EURO rails along the seat (these are part of the standard equipment), removable patient handles with fixing to the EURO rails along the seat, doctor’s footrest, stainless steel bowl, paper roll holder. All elements can be easily and conveniently adjusted for patient and staff comfort.

After removing the goeppels support and handrails, the patient can also enter the table from the side even lying position!



Weight of the table is 110 kg, load capacity 200 kg.

Table dimensions are approx. 800 x 1 500 mm.

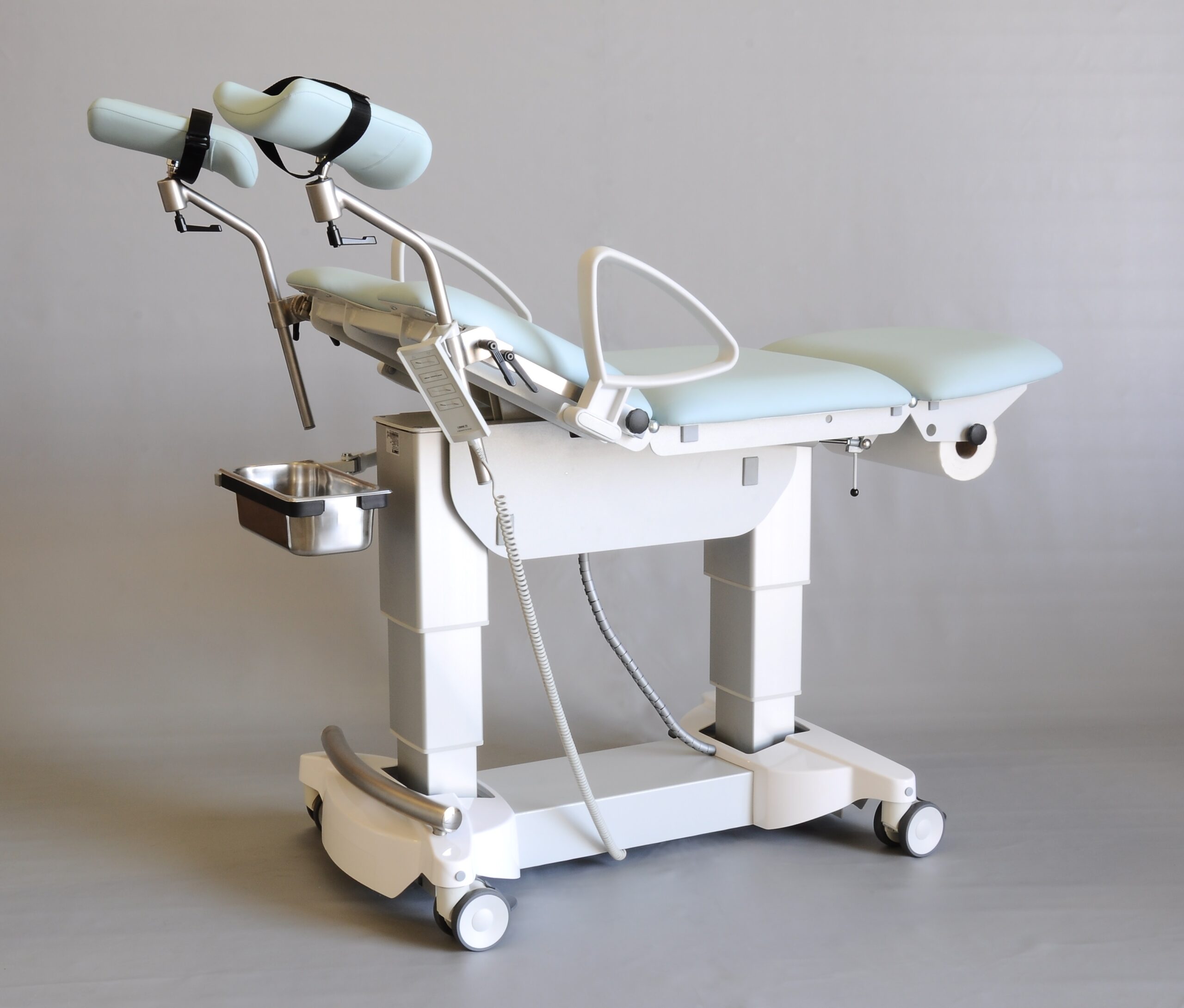

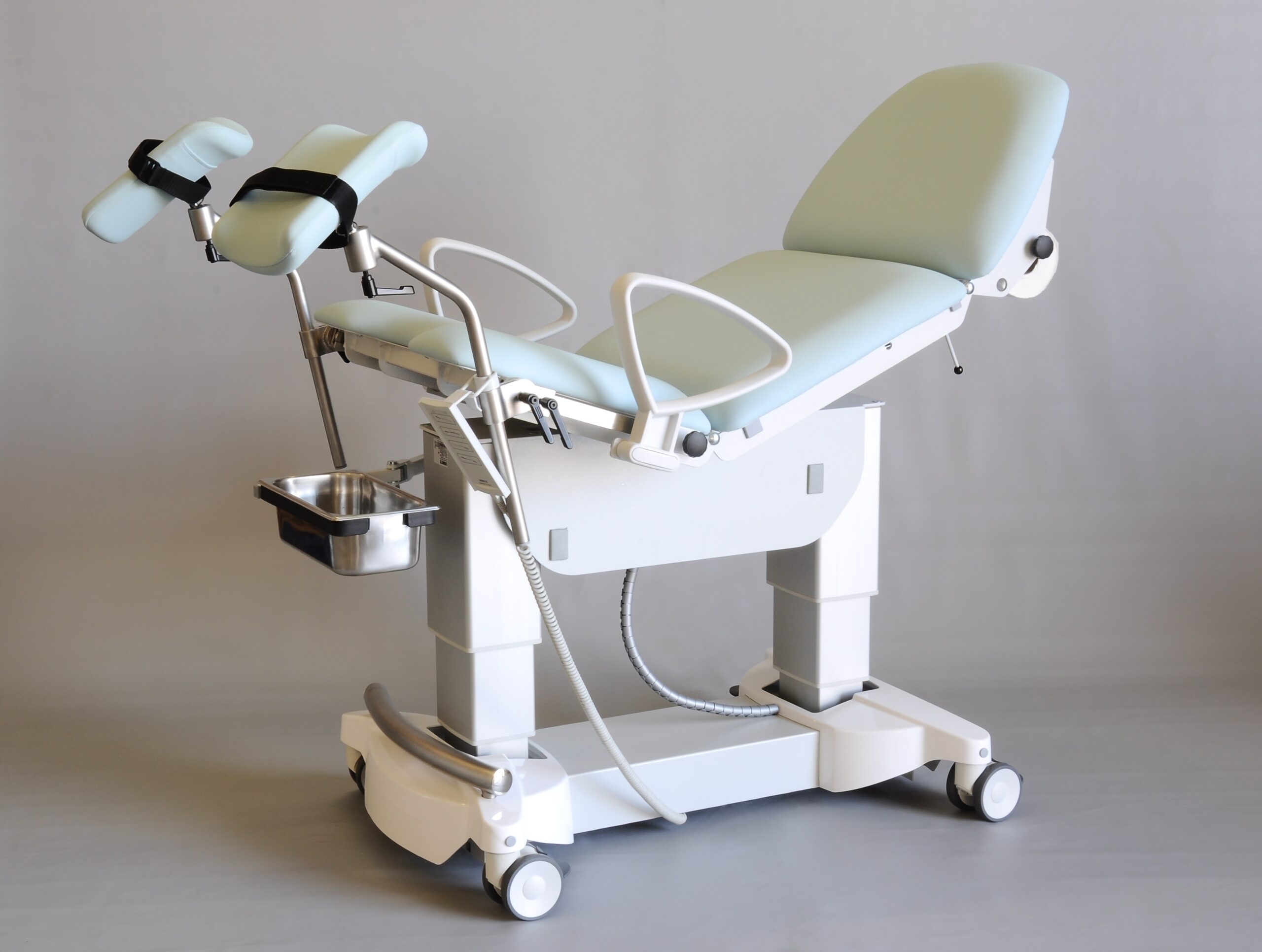

Height is adjustable by electric drive 450-850 mm,

backrest tilt adjustment by electric actuator 0°+ 70°,

seat tilt adjustment (Trendelenburg) with electric actuator 0°+ 25°,

gas spring adjustment of the head section inclination ± 25°.

All electric drives are controlled by a hand control and position changes can be made even under full load.



Each table can be supplemented with additional accessories according to your wishes:

EURO rails around the backrest                                                                 code Nr. D 04 10

LED lamp on flexible holder                                                                          code Nr. D 06 05

colposcope holder for left/right hand of the doctor                         code Nr D 06 80

bowl with outlet and hose                                                                              code Nr. D 06 08

bowl with outlet, hose and waste container                                        code No. D 06 09



Accessories for mounting on EURO rails:

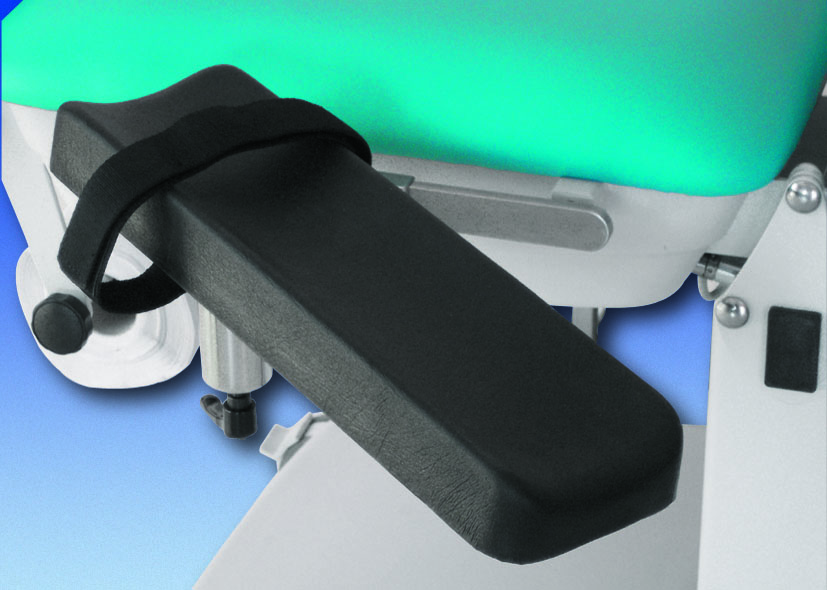

hand holder during infusion                                                                          code Nr. D 06 12

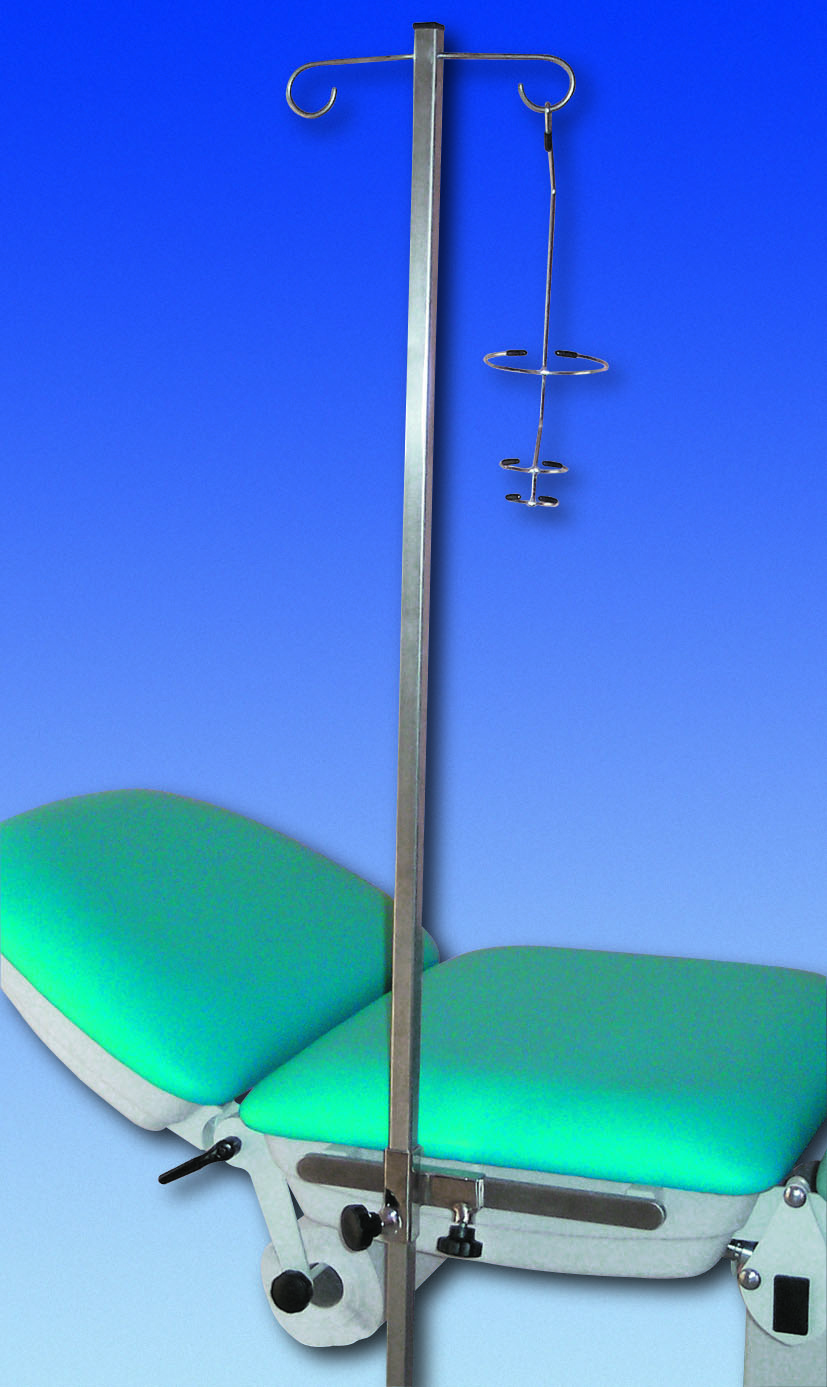

infusion holder                                                                                                    code Nr. D 06 13

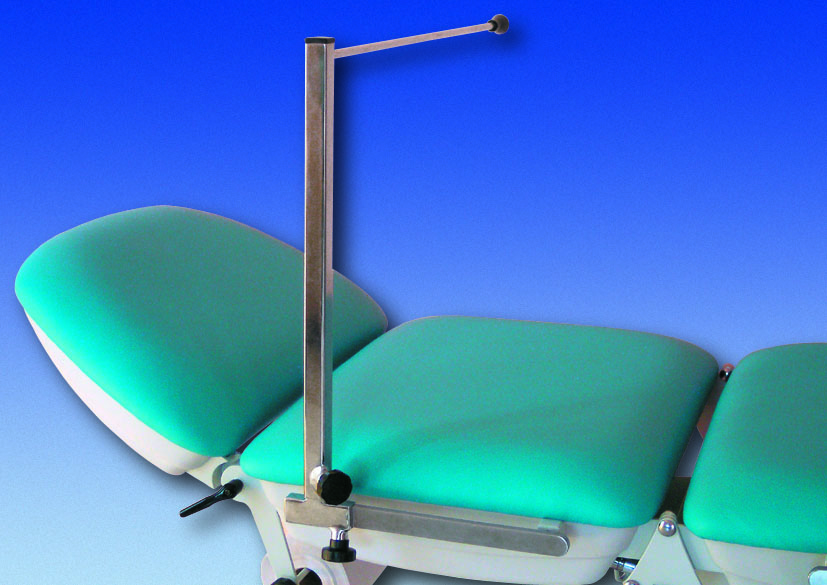

mouthpiece holder                                                                                            code Nr. D 06 14

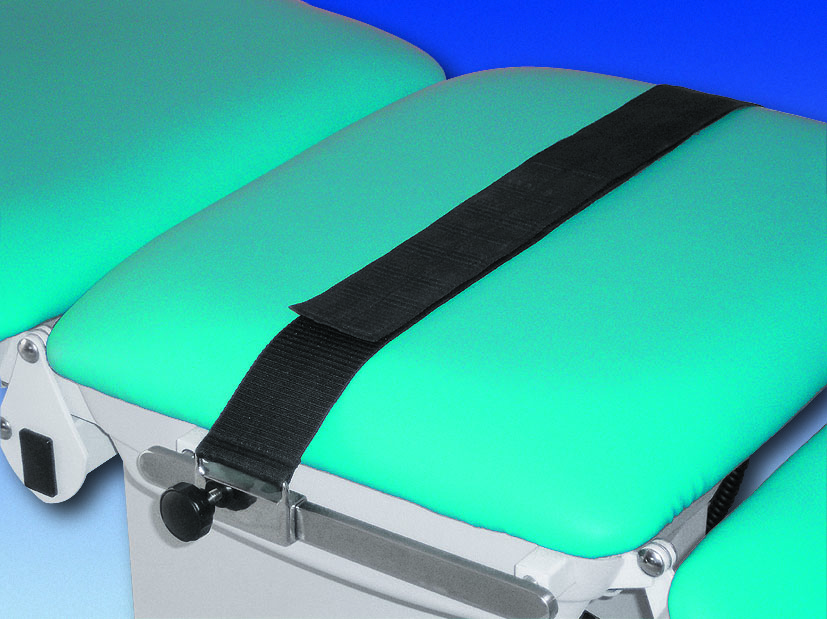

fastening strap                                                                                                    code Nr. D 06 15

Product configurator GOLEM 6ET model 200 for disabled, invalid, amputees and elderly patients

Name Picture ID Select
GOLEM 6ET model 200

A modified version of the GOLEM 6ET with a reduced entry height of 450 mm and a load capacity of 200 kg. Complete equipment: braked wheels, EURO rails along the seat, removable goepels or heel supports, removable patient handrails, foldable head segment, stainless steel bowl, paper roll holder, hand control.

Goeppels leg supports
D 06 01
Heel supports
D 06 02
LED lamp
D 06 05
Stainless steel bowl
Stainless steel bowl with outlet and hose
D 06 08
Stainless steel bowl with outlet, hose and waste container
D 06 09
Without EUROrails around back segment
EUROrails around back segment
Hand holder during infusion
D 06 12
Infusion holder
D 06 13
Mounthpiece holder
D 06 14
Fastening strap
D 06 15
Without colposcope holder
Colposcope holder LUTECH
Colposcope holder OPTOMIC
D 06 80
Colposcope holder ZEISS
D 06 81
Colposcope holder LEICA
D 06 82
Colposcope holder LEISEGANG
D 06 83

Sampler

1B


2C


2D


3F


4B


5C


6D


5D


5E


9B


9C


11H


11K


12D


11A


12H


13A


2A


9D


9E


Sampler S1

S1


S2


S3


S4


S5


S6


S7


S8



Basic information











Billing address










Delivery address












Basic information







Contact person











Billing address










Delivery address











* Required fields
Delivery time is 1-2 months, please contact your distributor for official offer include all details.
