GOLEM – birth table

Golem Birth table G 06 60 (4)Golem Birth table G 06 60 (3)Golem Birth table G 06 60Golem Birth table G 06 60 (2)Golem Birth table G 06 60 (5)Golem Birth table G 06 60 (6)Golem Birth table G 06 60 (7)Golem Birth table G 06 60 (12)Golem Birth table G 06 60 (8)Golem Birth table G 06 60 (10)Golem Birth table G 06 60 (11)Golem Birth table G 06 60 (9)
Configure product

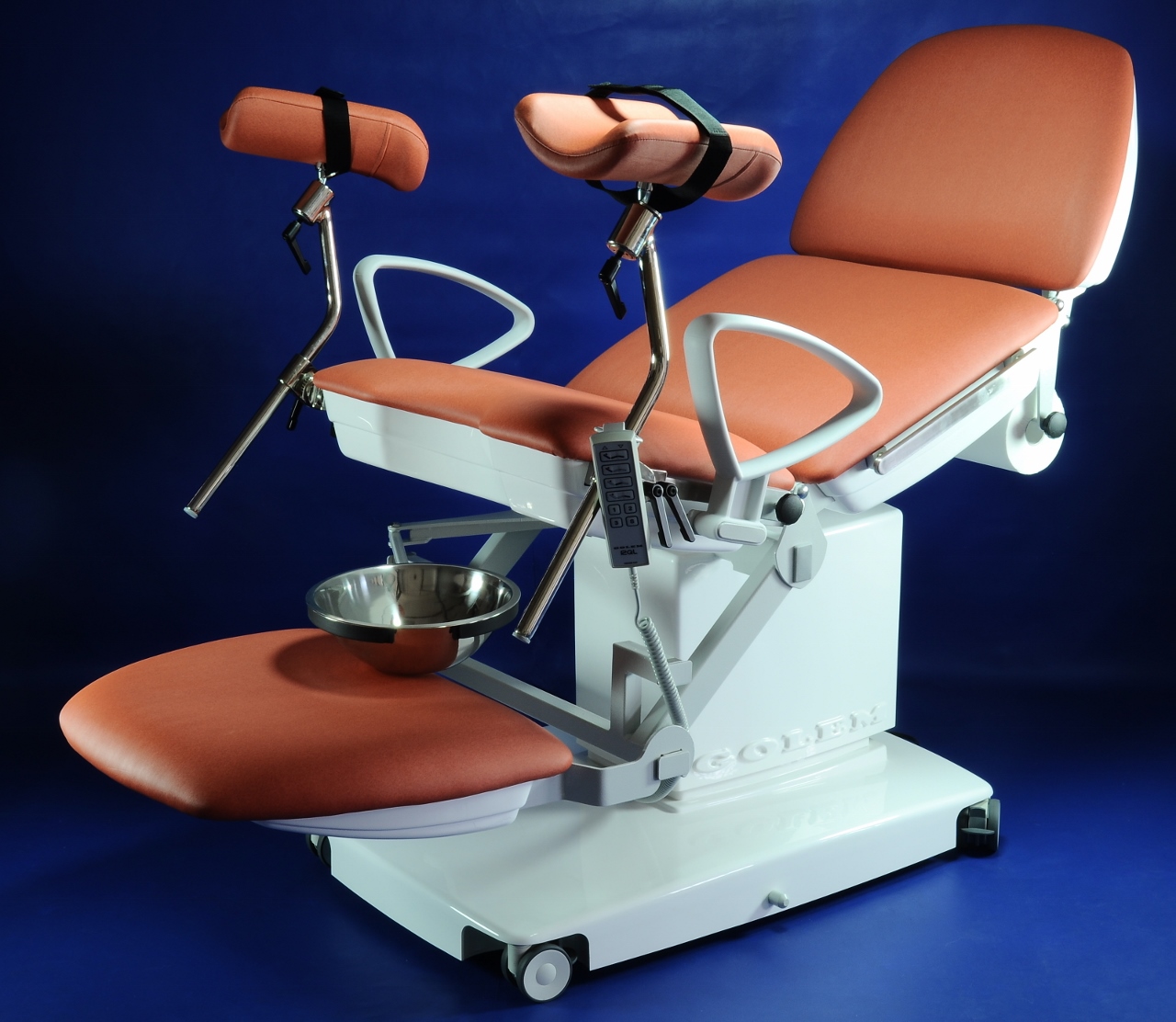

Optimally meeting all requirements of birth assistants and the mother, the GOLEM birth table enables birth in the standard position, with bent knees or in the knee-breast position, as well as necessary procedures.

A high level of the operator’s and mother’s safety and operating hygiene is ensured by covering of all parts of the table with grey plastic casings. The table is mobile and it features comfortable seamless washable upholstery in a colour of your choice. The table surface with a width of 600 mm is divided into a leg, middle, back and manually adjustable head segment. The positions, including an anti-shock position (Trendelenburg), are set by electric drives and can be set even if the table is fully loaded. The carrying capacity of the table is 150 kg. The table is equipped with electronics enabling the user to program 3 operating positions that are automatically set using a respective pedal. This feature allows for easy switching between table positions without time delays.

The optimal dividing of the surface allows for easy setting of the table to the position for birth and stitching and, after the leg segment is installed, to the lying position, in which a flat surface of 1 800 mm in length is created. The leg segment can be pushed to the low position before birth. Lengths of the segments: seat 400 mm, backrest 500 mm, head 400 mm, additional legs 500 mm.

The table is fully equipped by EUROrails for the fastening of accessories around the seat and backrest, removable polyurethane Goepel leg supports with a jointed fixture and fastening straps, foot step with a non-slip finish, stainless bowl, removable hand rails for the mother, paper roll holder to be used for the whole surface, the backrest and the seat, or for the seat only, infusion holder, hand holder used during infusion. All elements can be easily and comfortably adjusted and removed from the table, which means that the patient can also get on from the side.

Electric drive adjustable height of 640 – 940 mm, electric drive adjustable back tilt of 0°+ 80°, manually adjustable head segment tilt of +- 30°, electric drive adjustable seat (Trendelenburg) tilt of 0°+ 30°. The table is equipped with electronics enabling the user to program 3 operating positions that are automatically set using a respective button. This feature allows for easy switching between the initial and operating positions of the table without time delays.

The build-in dimensions of the table are approx. 800 x 1 400 mm.

The weight of the table is 118 kg, the carrying capacity is 150 kg.



Brochure GOLEM birth table (PDF)

Product configurator GOLEM – birth table

Name Picture ID Select
Birth table GOLEM (with wheels)

(3 electromotors + 3 memories of working positions)

G 06 60
Power supply using built-in batteries with a fully automatic charger
D 06 40

Sampler

1B


2C


2D


3F


4A


5B


5C


6D


8D


9B


9C


11H


11K


12D


12E


12F


13A


2A


9D


9E


Sampler S1

S1


S2


S3


S4


S5


S6


S7


S8



(download PDF version of your configuration)
