Golem 6ET – TREATMENT chair for gynaecology and urology

Golem 6ET treatment gynecology tableGolem 6ET treatment (G 06 07) + braked wheels + Stainless stell trayGolem 6ET treatment gynecology tableGolem 6ET treatment gynecology tableGolem 6ET treatment gynecology tableGolem 6ET treatment gynecology tableGolem 6ET treatment gynecology tableGolem 6ET treatment gynecology tableGolem 6ET treatment gynecology tableGolem 6ET treatment gynecology tableGolem 6ET treatment gynecology tableGolem 6 ET drawing (with additional leg segment)
Configure product

All functions of the gynaecology chair GOLEM 6 TREATMENT series necessary for ambulatory care and, in addition to that, they allow for minor procedures.

A high level of operator and patient safety is ensured by covering of all parts of the table with grey plastic casings.

The 600 mm wide operating surface is covered with seamless artificial leather in a colour of your choice; it is divided into a seat with an opening and a seat backrest with a head segment.  All electric drives are operated manually and the positions can be changed even if the table is fully loaded. Lengths of the segments: seat 400 mm, backrest 500 mm, head 400 mm, additional legs 500 mm.

All versions are always fully equipped:

EUROrails for the fastening of accessories around the seat and backrest, removable polyurethane Goepel leg supports or heel supports (depending on your request) with a jointed fixture, foot step with a non-slip finish, stainless bowl, removable hand rails for the patient, and a paper roll holder to be used for the whole surface, the backrest and the seat, or for the seat only.

All elements can be easily and comfortably adjusted and removed from the table, which means that the patient can also get on from the side.

The weight of the table is 92 -106 kg depending on version; the carrying capacity is 150 kg.

The build-in dimensions of the table are approx. 800 x 1 400 mm.

Each version can be further equipped with accessories for procedures according to your request.



Brochure GOLEM 6ET treatment table for gynaecology and urology (PDF)



Product configurator Golem 6ET – TREATMENT chair for gynaecology and urology

Name Picture ID Select
GOLEM 6 (1 electromotor)

Electric drive adjustable height of 640 - 940 mm, manually adjustable back tilt of 0°+ 80° and head segment tilt of +- 30°, fixed seat.

G 06 05
Golem 6E (2 electromotors)

Electric drive adjustable height of 640 - 940 mm, electric drive adjustable back tilt of 0°+ 80°, manually adjustable head segment tilt of +- 30°, fixed seat.

G 06 06
Golem 6ET (3 electromotors + 3 memories of operation positions)

Electric drive adjustable height of 640 – 940 mm, electric drive adjustable back tilt of 0°+ 80°, manually adjustable head segment tilt of +- 30°, electric drive adjustable seat (Trendelenburg) tilt of 0°+ 30°. The table is equipped with electronics enabling the user to program 3 operating positions that are automatically set using a respective button. This feature allows for easy switching between the initial and operating positions of the table without time delays.

G 06 07

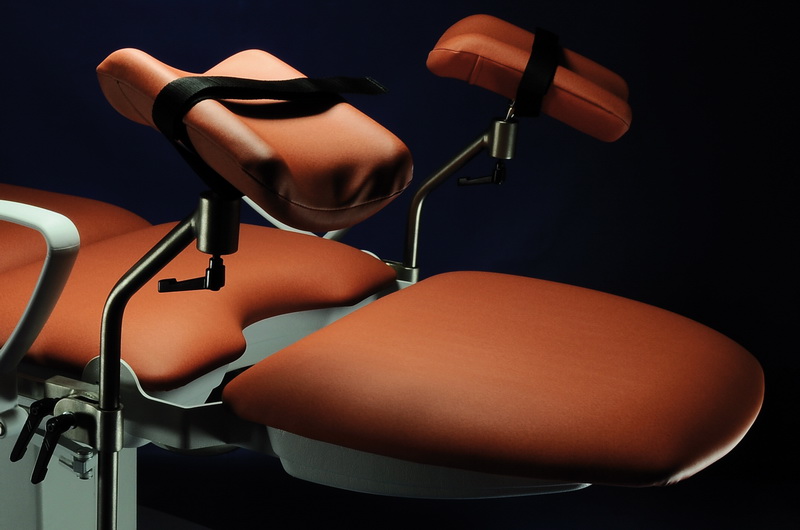

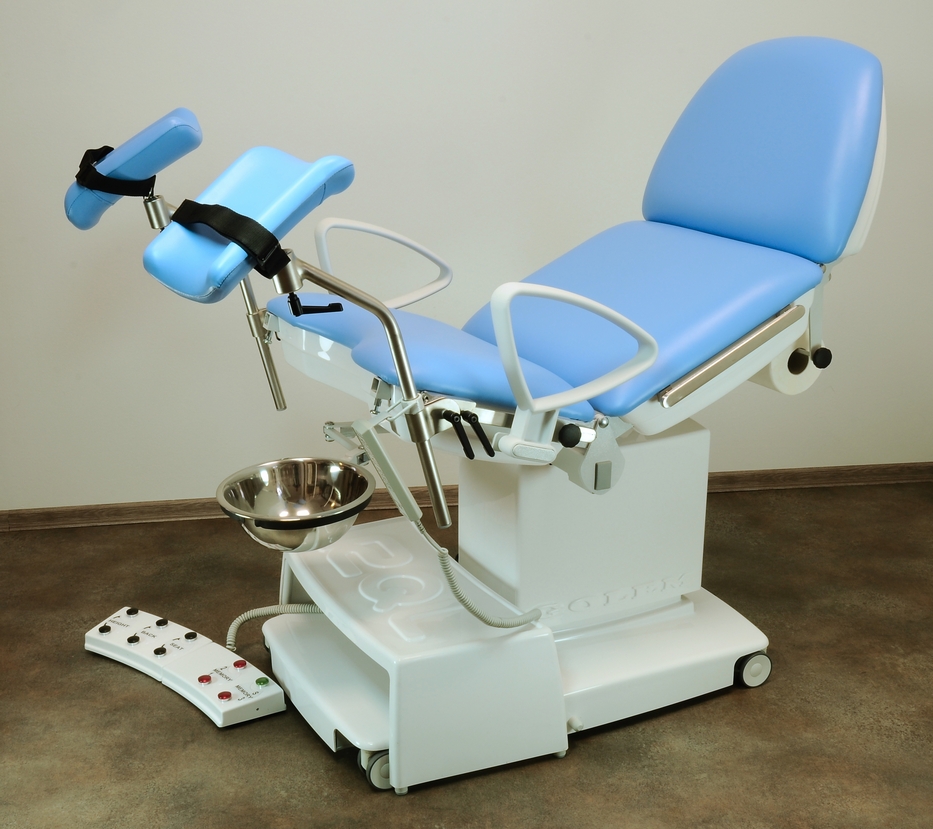

Goeppels leg supports
D 06 01

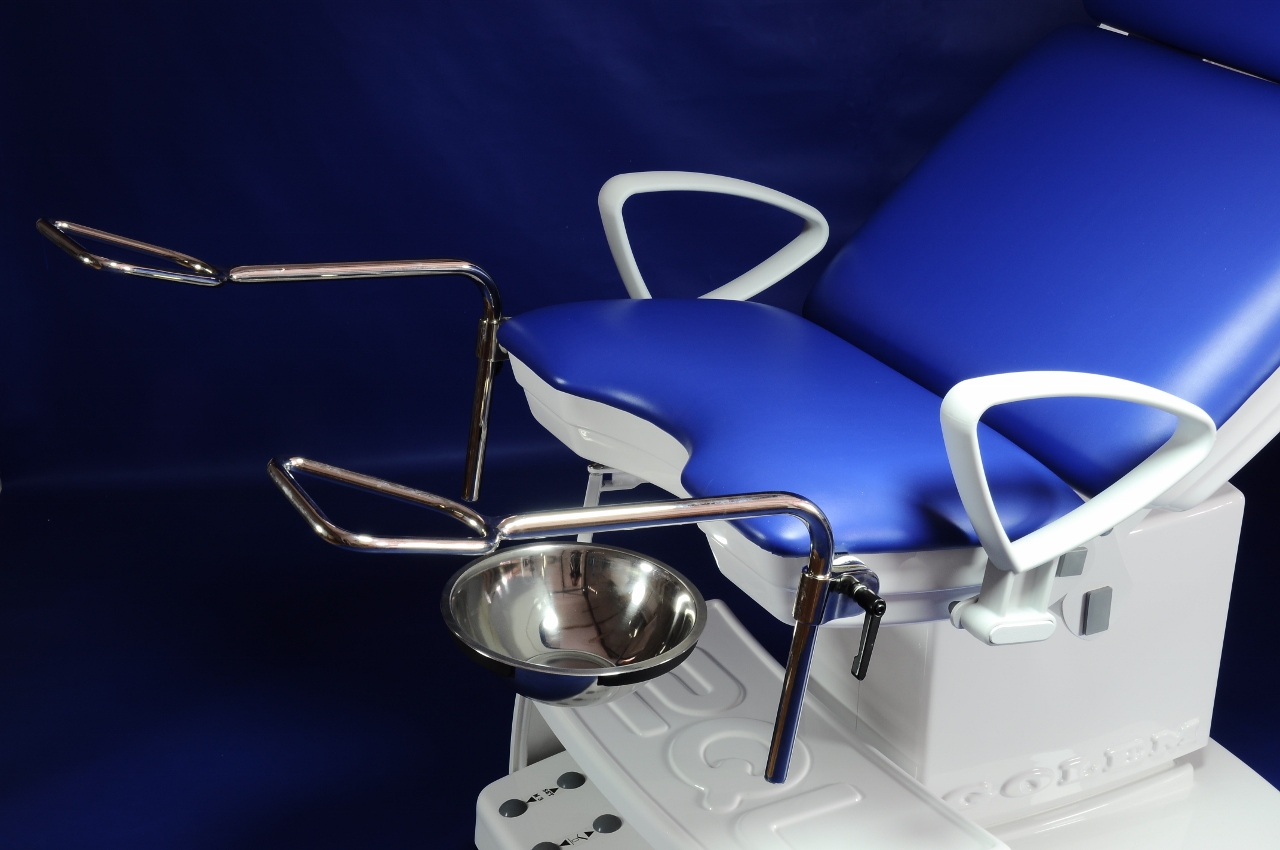

Heel supports
D 06 02
Stationary lower frame with adjustable legs
D 04 99
Braked wheels Ø 75 mm
D 06 03
Additional leg segment
D 06 04

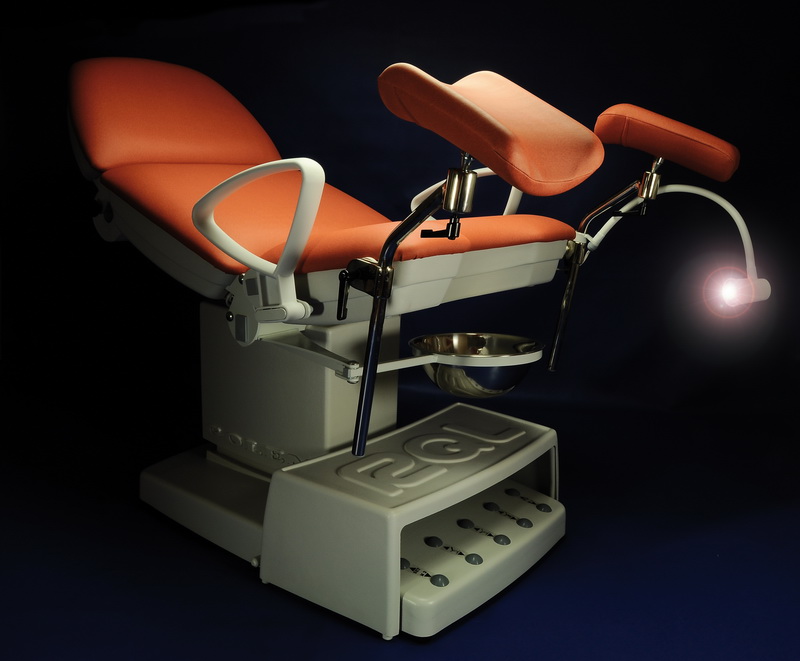

Halogen lamp
D 06 05
Without colposcope holder

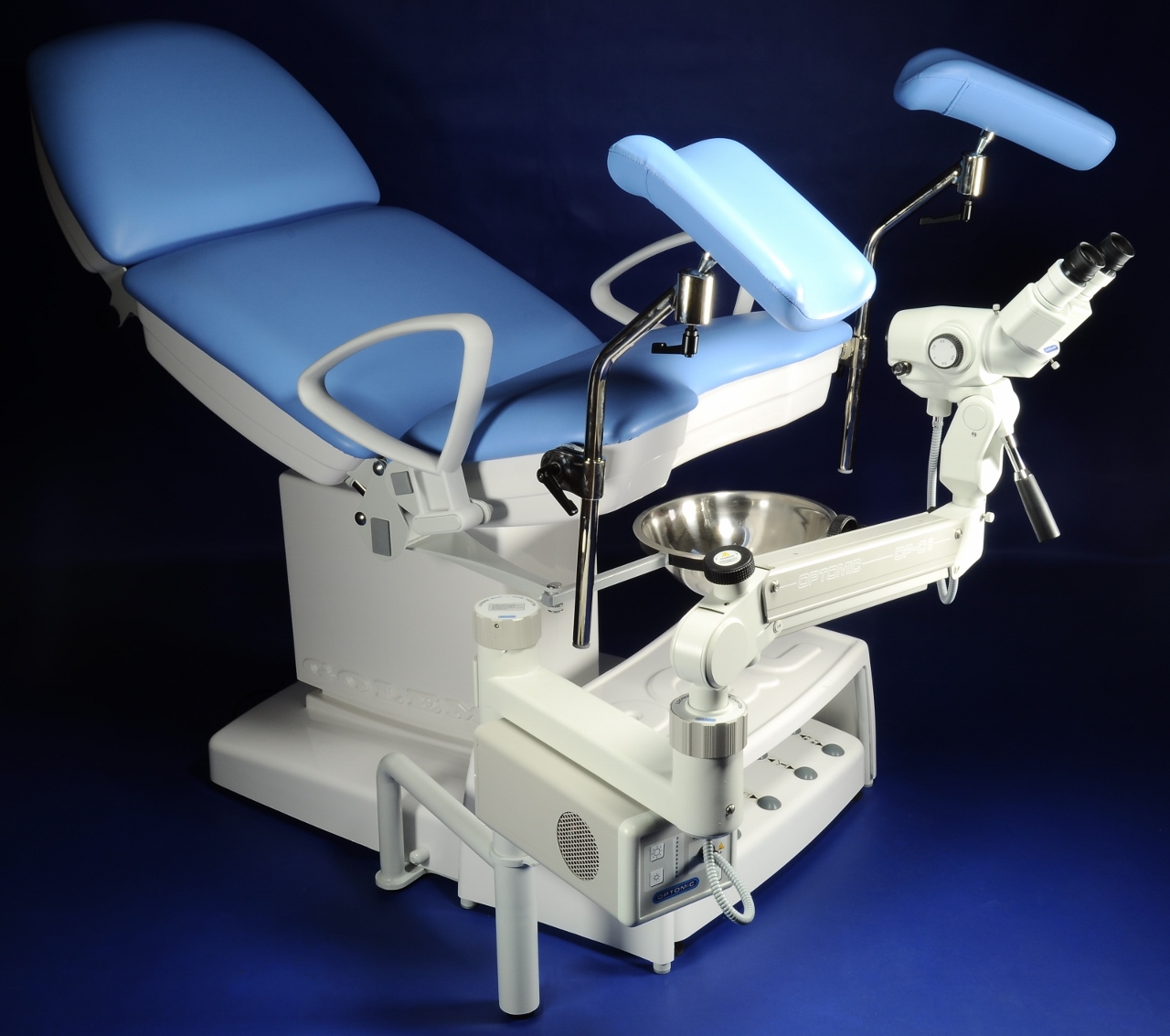

Colposcope holder OPTOMIC
D 06 80
Colposcope holder ZEISS
D 06 81
Colposcope holder LEICA
D 06 82
Colposcope holder LEISEGANG
D 06 83

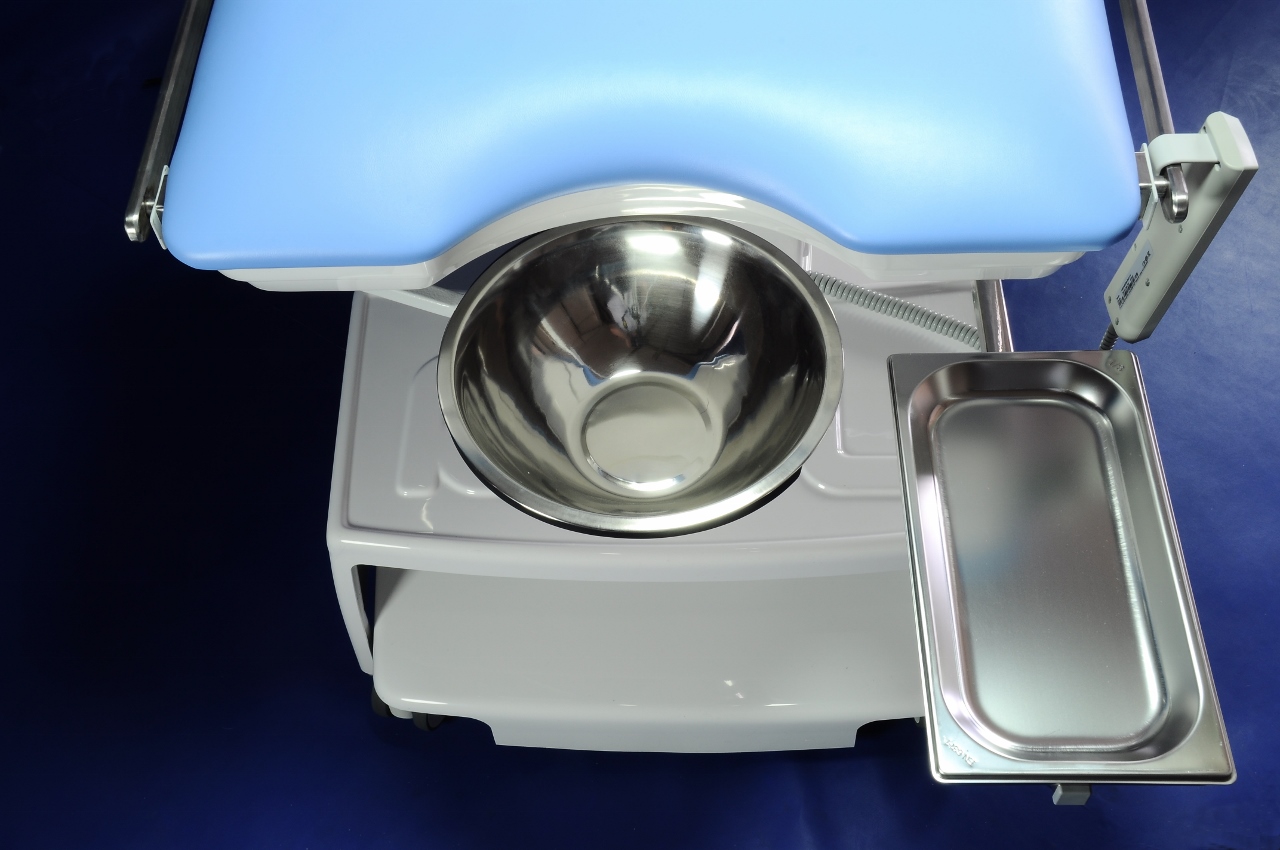

Stainless steel bowl
Stainless steel bowl with outlet and hose
D 06 08
Stainless steel bowl with outlet, hose and waste container
D 06 09
Stainless steel tray for instruments
D 06 10
Hand control

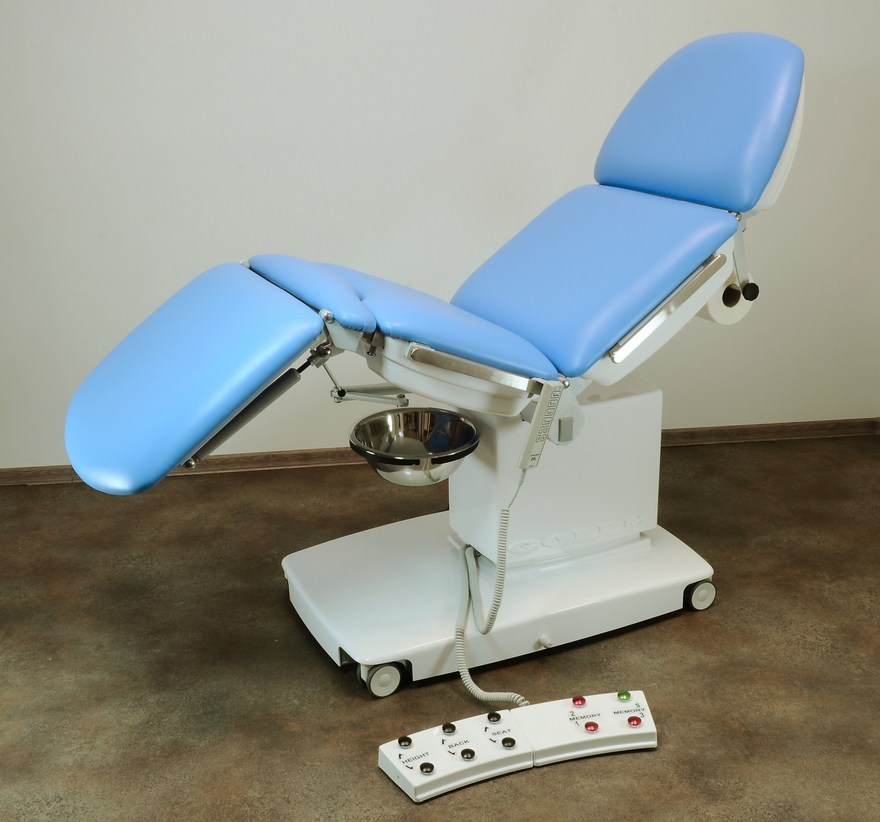

Separate pedal board on cable
D 06 30
EUROrails around seat and back segment
Hand holder during infusion
D 06 12

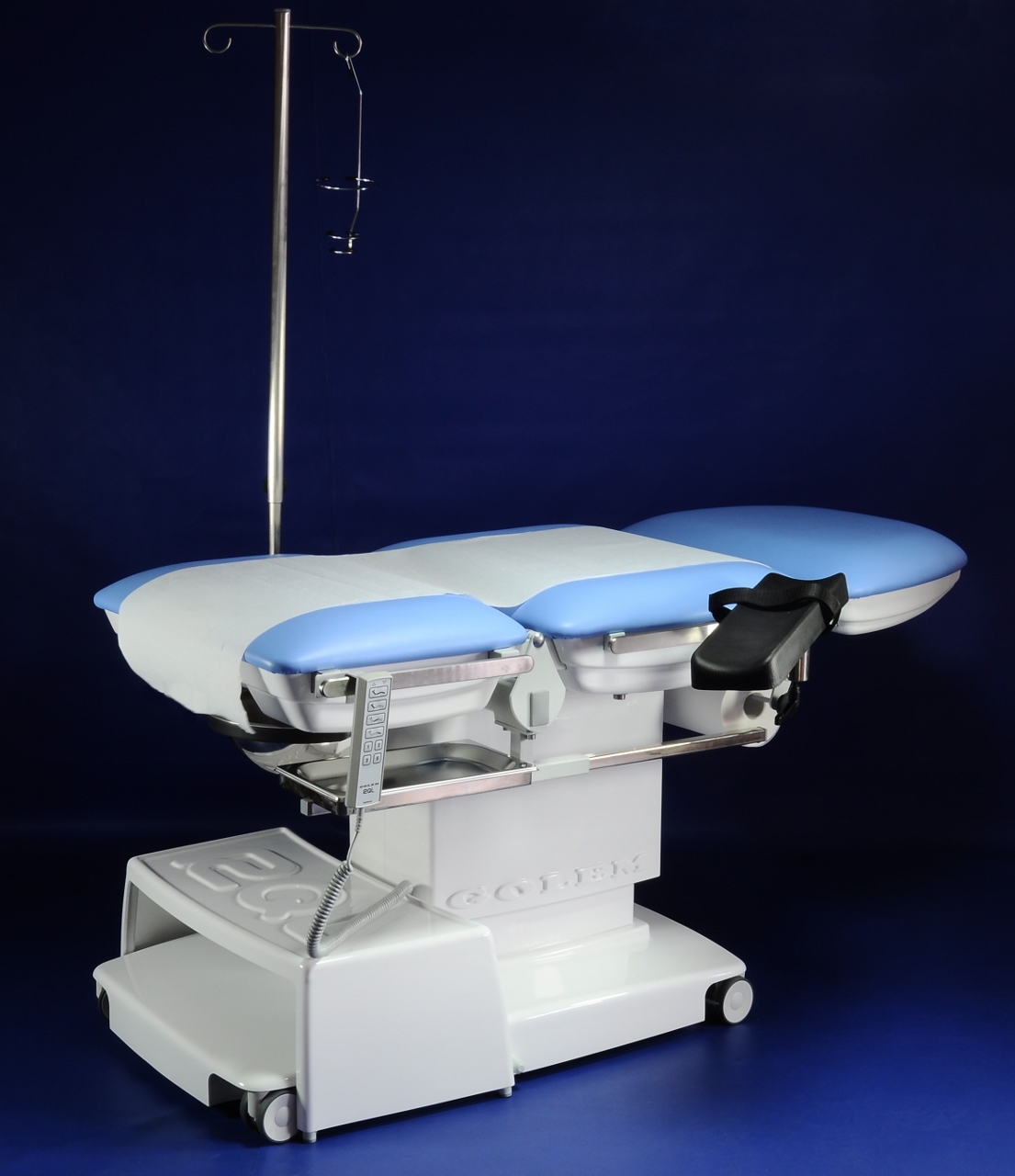

Infusion holder
D 06 13
Mounthpiece holder
D 06 14
Fastening strap
D 06 15

Sampler

1B


2C


2D


3F


4A


5B


5C


6D


8D


9B


9C


11H


11K


12D


12E


12F


13A


2A


9D


9E


Sampler S1

S1


S2


S3


S4


S5


S6


S7


S8



(download PDF version of your configuration)

Basic information











Billing address










Delivery address












Basic information







Contact person











Billing address










Delivery address











* Required fields
Delivery time is 6 weeks, please contact your distributor for official offer include all details.
