GOLEM U – table for ultrasonic examinination

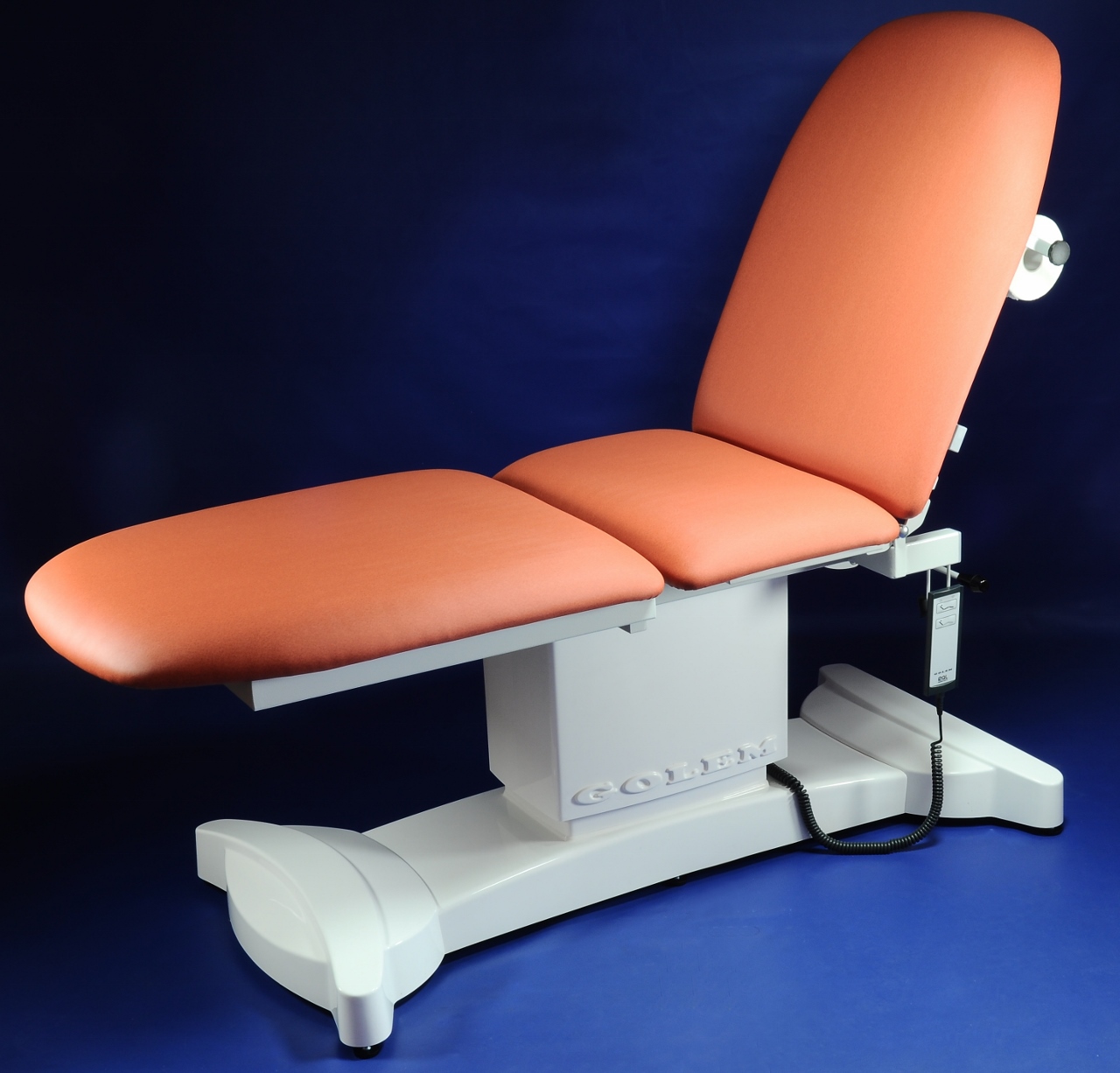

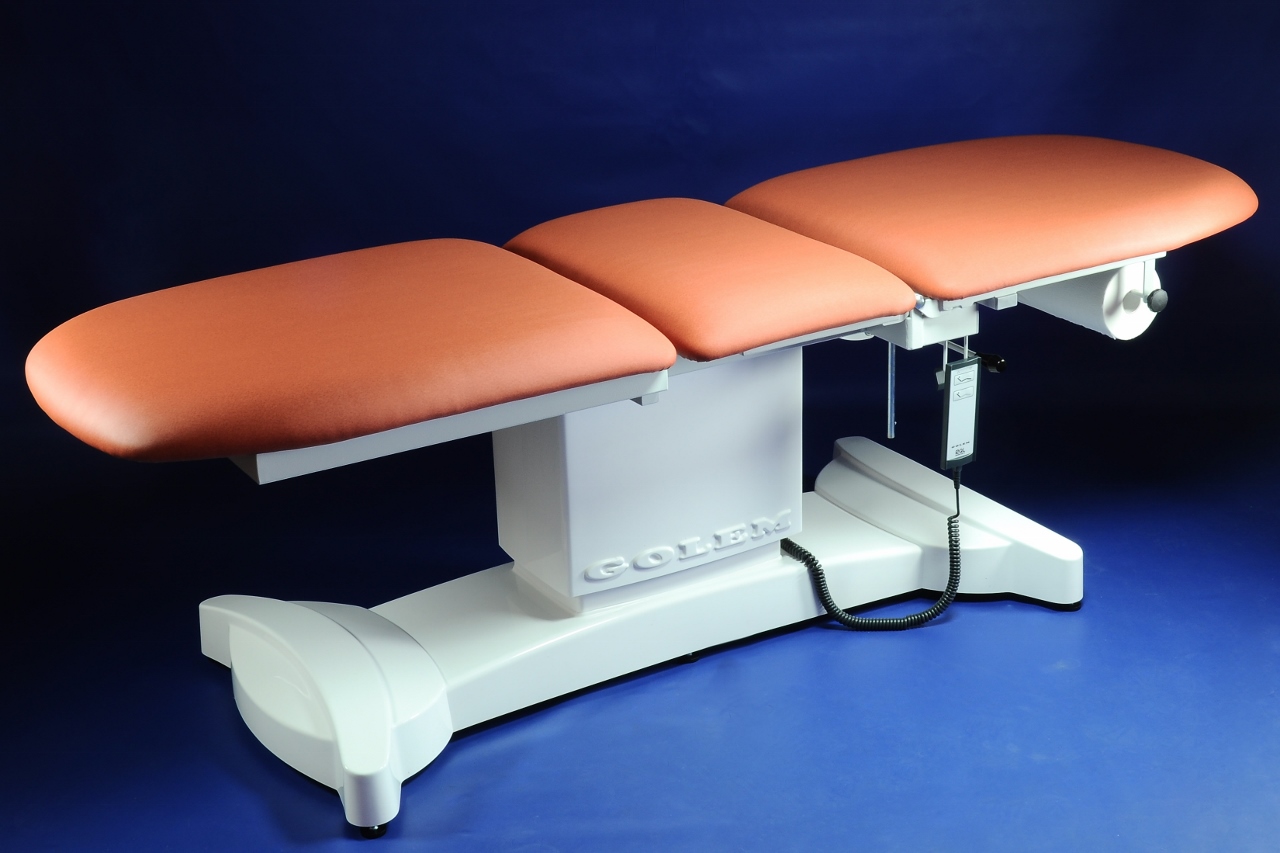

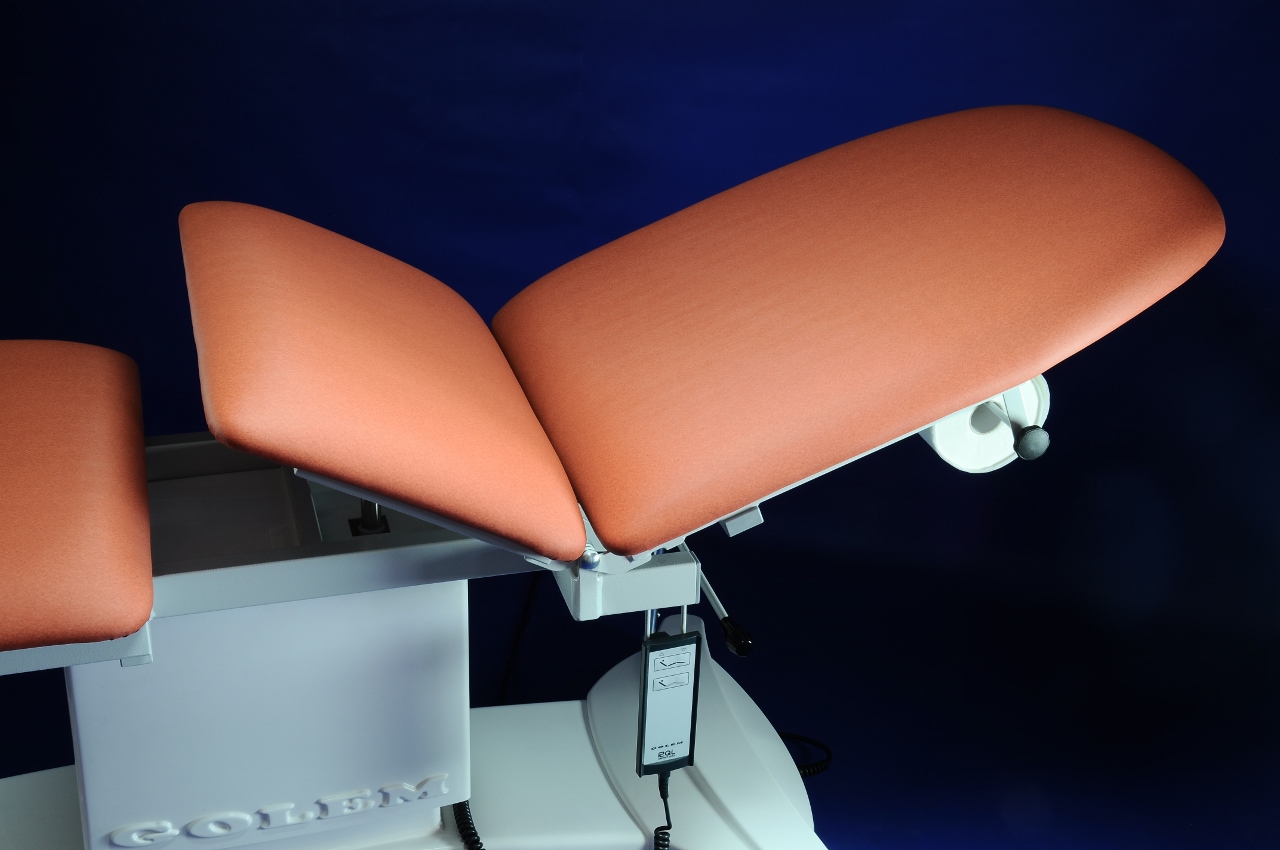

Golem UE (G 06 52) (3) (1280x979)Golem UE (G 06 52) (1280x1226)Golem UE (G 06 52) (2) (1280x853)Golem UE (G 06 52) (4) (1280x850)Golem UE (G 06 52) (5) (1280x850)Golem UE (G 06 52) (6) (1280x850)
Configure product

An elegant and practical solution for ambulance examination in gynaecological offices. Not only facilitating ultrasonic examination for both the doctors and patients, they are also suitable for standard examinations in the lying position. The shape, dividing, and setting of individual segments allow for comfort even if a vaginal probe is used.

A high level of operator and patient safety and operating hygiene is ensured by the covering of the bottom frame and moving mechanism of the table with washable plastic covers.

The 630 x 2 000 mm operating surface is covered with artificial leather in a colour of your choice; it is divided into a back segment, seat, and leg segment. The back segment tilt can be adjusted; the seat tilt is always adjustable by electric drive; the leg segment remains fixed. All electric drives are operated manually and the positions can be changed even if the table is fully loaded.

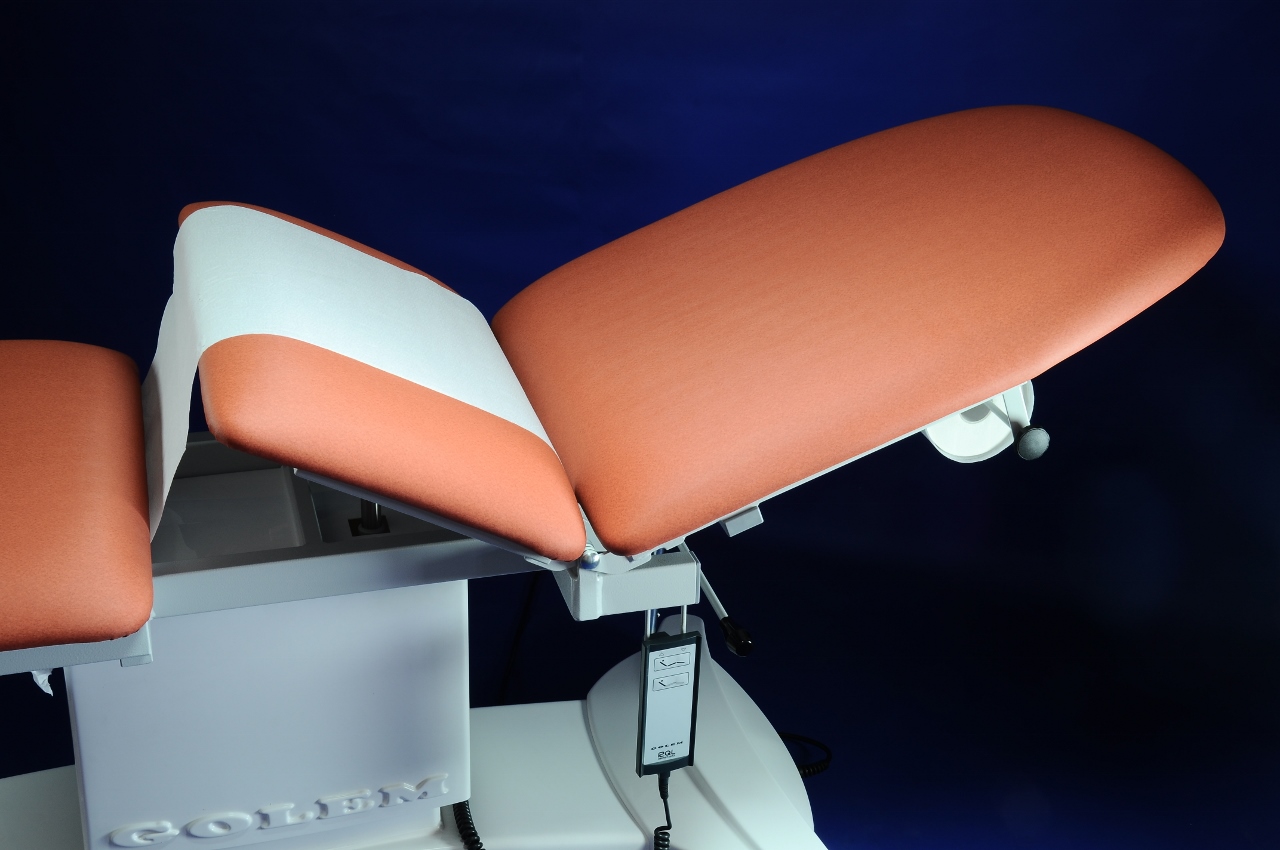

The basic version is stationary and has a paper roll holder under the head. The paper can be used for the seat, seat and backrest, or for the whole table.

The build-in dimensions of the table are approx. 630 x 2 000 mm.

The weight of the table is 65 – 94 kg, the carrying capacity is 150 kg.



Brochure GOLEM U table for ultrasonic examination (PDF)

Product configurator GOLEM U – table for ultrasonic examinination

Name Picture ID Select
GOLEM UP

Fixed height 600 mm, electric drive adjustable seat tilt of 0°to +30°, manually adjustable backrest.

G 06 50
GOLEM U

Electric drive adjustable height of 600 - 900 mm, electric drive adjustable seat tilt of 0°to +30°, manually adjustable backrest.

G 06 51
GOLEM UE

Electric drive adjustable height of 600 - 900 mm, electric drive adjustable seat tilt of 0°to +30°, electric drive adjustable back tilt of 0° to 70°.

G 06 52
Stationary version with adjustable pegs
Braked wheels Ø 75 mm
D 06 03
Manually adjustable head segment
D 06 20
Removable Goepel leg supports with a jointed fixture
D 06 21
Hand control
Separate pedal panel instead of manual control
D 06 31

Sampler

1B


2C


2D


3F


4A


5B


5C


6D


8D


9B


9C


11H


11K


12D


12E


12F


13A


2A


9D


9E


Sampler S1

S1


S2


S3


S4


S5


S6


S7


S8



(download PDF version of your configuration)

Basic information











Billing address










Delivery address












Basic information







Contact person











Billing address










Delivery address











* Required fields
Delivery time is 6 weeks, please contact your distributor for official offer include all details.
