GOLEM PROKTOLOG – proctologic table

DSC_5092DSC_5097DSC_5089DSC_5088DSC_5090DSC_3154 (1280x882)DSC_3155 (1280x951)DSC_3153 (1280x731)DSC_3160 (1280x851)DSC_3163 (1280x785)DSC_3162 (1280x779)DSC_3158 (1280x860)DSC_3156 (1280x741)proktolog
Configure product

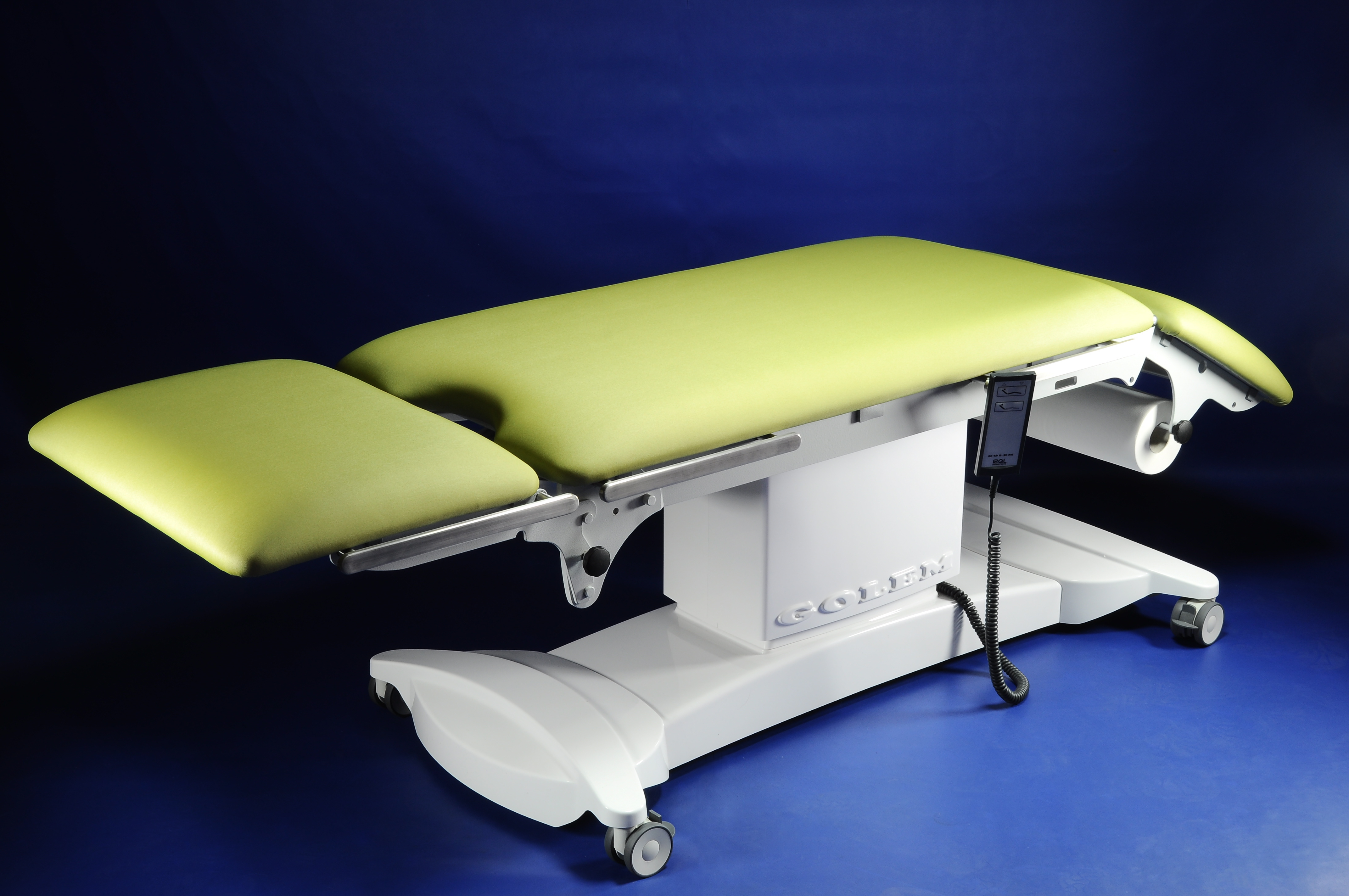

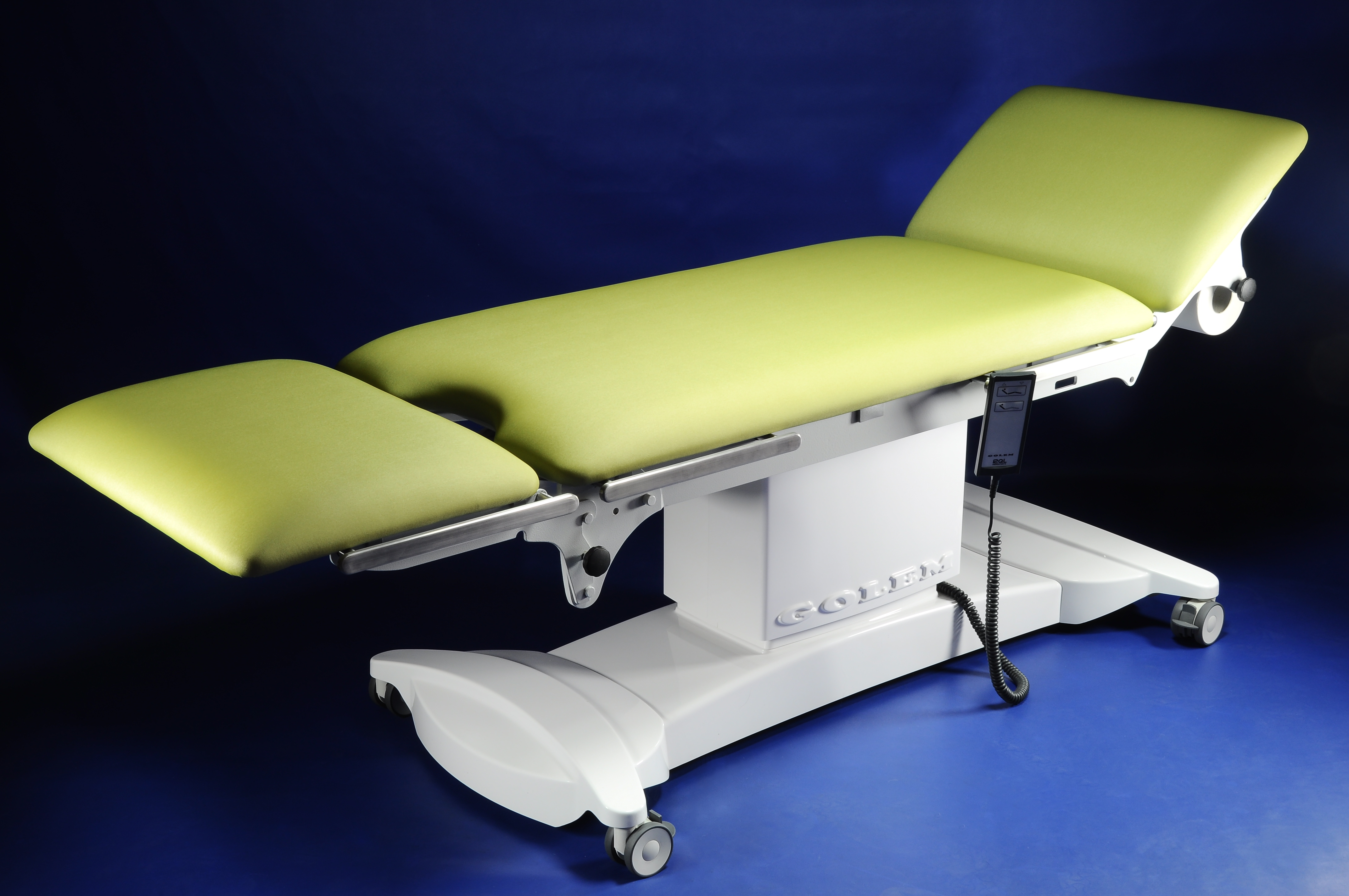

The table is designed for examinations in the lying and knee-breast positions or even in the gynaecological position. It enables easy changing of positions with regard to the patient’s and doctor’s comfort.

The 600 mm wide operating surface is covered with washable artificial leather in a colour of your choice. It is divided into a head segment, a body with an opening and a removable leg segment. The length of the surface is 1950 mm. All electric drives are operated manually and the positions can be changed even if the table is fully loaded.

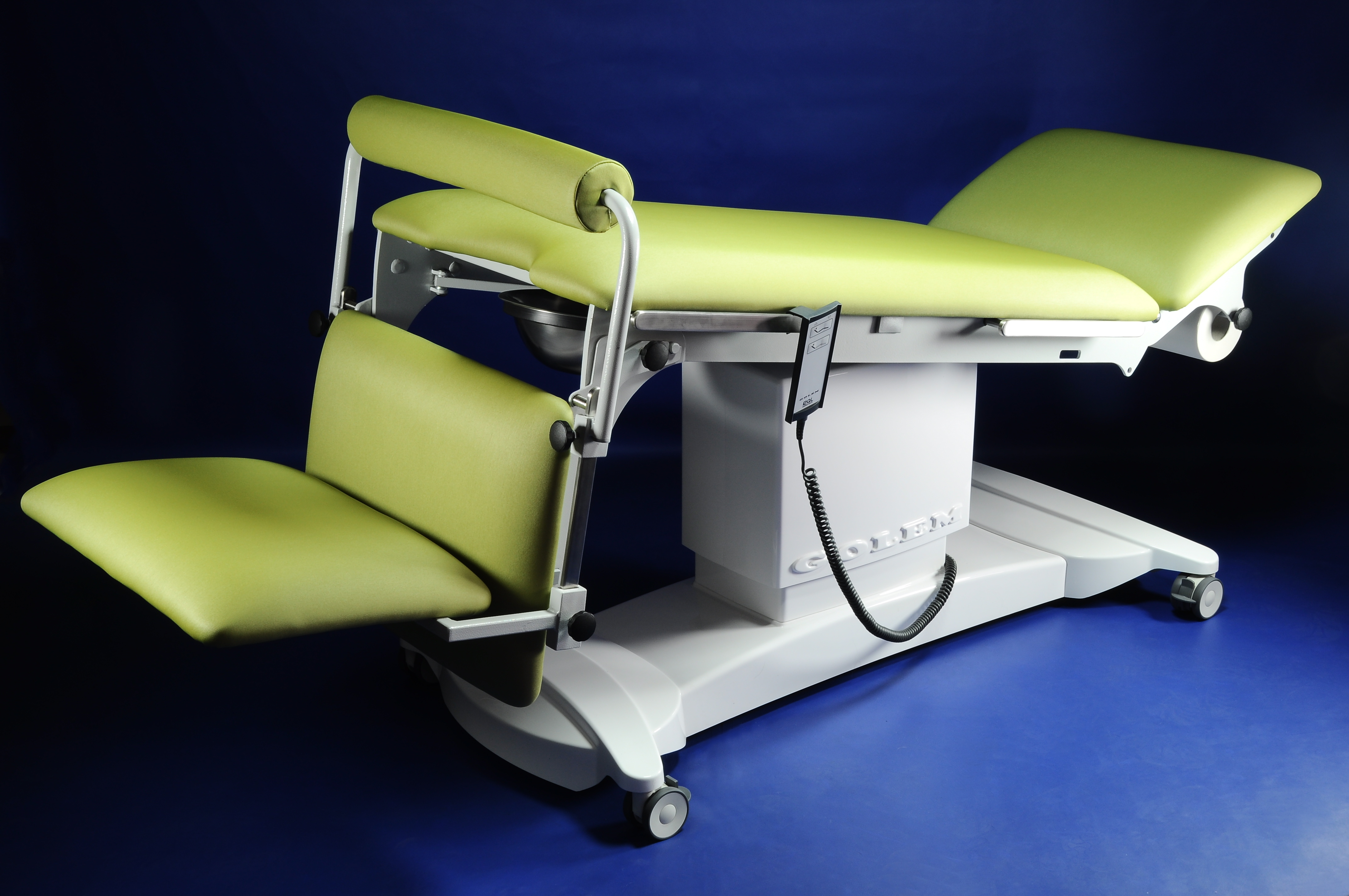

The table is fully equipped by EUROrails around the leg segment, removable platform for kneeling, adjustable abdomen support for the knee-breast position, paper roll holder. All elements can be easily and comfortably adjusted and removed from the table, which means that the patient can also get on from the side.

Electric drive adjustable height of 640 – 940 mm, manually adjustable head segment tilt of  +- 30°, manually adjustable removable leg segment tilt of 0° to – 90°.

The build-in dimensions of the table are approx. 650 x 1 950 mm.

The weight of the table is 102 kg, the carrying capacity is 150 kg.



Brochure GOLEM PROKTOLOG proctologic table (PDF)

Product configurator GOLEM PROKTOLOG – proctologic table

Name Picture ID Select
GOLEM PROKTOLOG - proctologic table

Electric drive adjustable height of 640 - 940 mm, manually adjustable head segment tilt of +- 30°, manually adjustable removable leg segment tilt of 0° to - 90°.

G 17 01
Stationary version with adjustable pegs
Braked wheels Ø 75 mm
D 17 01
Without trendelenburg
Electric drive adjustable Trendelenburg 0+30°
D 17 02
Stainless bowl
D 17 03

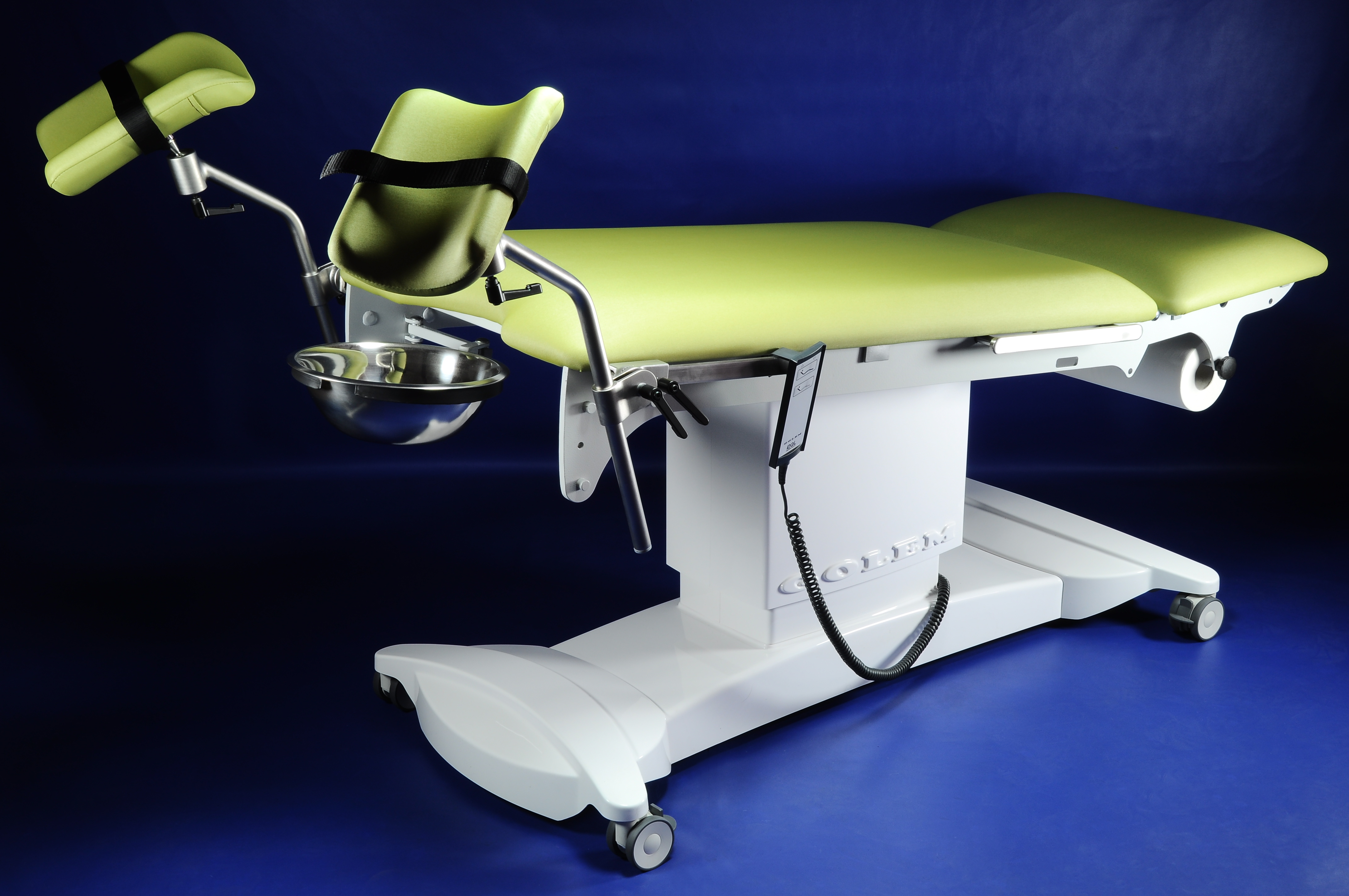

EUROrails around the seat plus removable polyurethane Goepel leg supports with a jointed fixture
D 17 04
Foot step with a non-slip finish
D 04 04
Hand control
Separate pedal panel instead of manual control
D 06 31

Sampler

1B


2C


2D


3F


4A


5B


5C


6D


8D


9B


9C


11H


11K


12D


12E


12F


13A


2A


9D


9E


Sampler S1

S1


S2


S3


S4


S5


S6


S7


S8



(download PDF version of your configuration)

Basic information











Billing address










Delivery address












Basic information







Contact person











Billing address










Delivery address











* Required fields
Delivery time is 6 weeks, please contact your distributor for official offer include all details.
