GOLEM F1 – gynaecological chair for IVF

GOLEM F1 gynecology chair for IVFGOLEM F1 gynecology chair for IVFGOLEM F1 gynecology chair for IVF with standart leg supports(include standart price)GOLEM F1 gynecology chair for IVF with standart leg supports(include standart price)GOLEM F1 gynecology chair for IVF with standart leg supports(include standart price)GOLEM F1 with goeppelsGOLEM F1GOLEM F1 gynecology chair for IVFGOLEM F1 gynecology chair for IVFBez názvu
Configure product

Gynaecological chair Golem F1 is first table which connects resourceful and impressive design with top-class functions. You can use it in standart gyneacology office as well for IVF treatments. Together it gives satisfaction for all Your request, is carefully for patients, make Your work easier and faster. Moreover Golem F1 looks really great.
Complete adjustable of all segments by 6 electromotors: height adjustable, trendelenburg, back segment, head segment, leg segment and foot support.
Full synchronic adjustable of all positions in same time with full-load: starting position, gyneacology examining position, examining of ultrasonograph including vaginal sonde, lying position.
There are 4 memories to save most useable positions for your comfort.
Low starting high only 650 mm provide for enter on table without step.
Modern foot supports which makes possible to sit patient, put legs to support on the floor, flowing changeover to examination gyneacology position effortlessly!
Form and position of foot support is appropriate to patient of each weight and height.
Easy put off foot supports to patient can be load from side of table. (From wheelchair or transport table.)
Control of all motors by transparent hand-control, currently can be most use functions control by leg-pedals.
All parts are covering by black or white plastic covers with high brightness and UV filter.
Non-seam and detachable upholstery in colour of your choice.

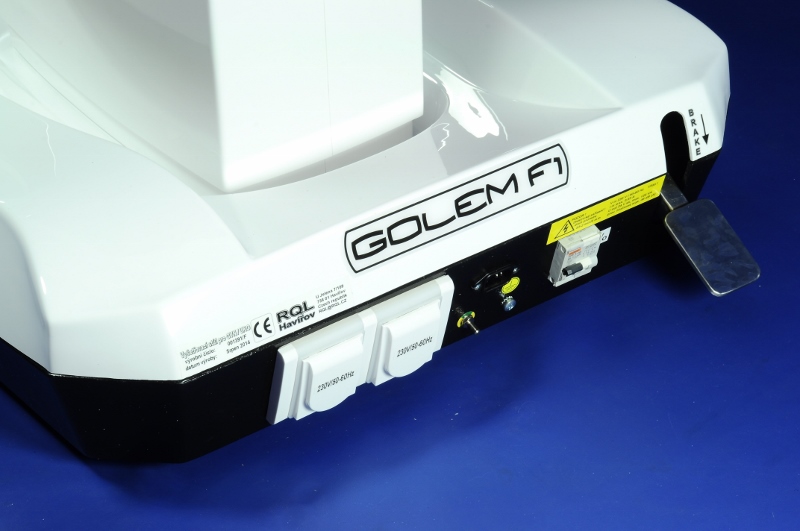

Two plugs 230 V for use of external electric units, inbuilt breaker with protector for safety of staff and pacients.
Inbuilt transformator for halogen lamp.
Table has quality wheels with central brake.

Standard equipment

6 electromotors, 4 memories of positions, foot supports, removable plastic bowl, holder of paper roll, step for doctor, reserve-battery for emergency operation, 2 plugs 230 V for use of external electric units, hand control and leg pedals,  remote control of central switch on/off.

Technical parametres:

Working area has width 600 mm. Complete length of area is 1 700 mm in lying position.
Length of segments: leg 400 mm, seat 400 mm, back 400 mm, head 500 mm.
Height adjustable by electromotor 650 – 950 mm.
Trendelenburg adjustable by electromotor 0°- 20°.
Back segment adjustable by electromotor 0°- 75°.
Head segment adjustable by electromotor – 20° + 50°.
Leg supports adjustable by electromotors from floor to examining position.
Required place for table 800 x 1 500 mm (in seating position)/1 700 mm (in lying position).
Weight capacity 180 kg.

plastic bowl, holder of paper roll, step for doctor, reserve-battery for emergency operation​

GOLEM F1    G 00 01
Complete adjustable of all segments by 6 electromotors
Full synchronic adjustable of all positions in same time with full-load
4 memories to save most useable positions
foot supports which makes possible changeover from sit to examination position
Table has four rotation double wheels with diameter 75 mm with central brake.
Control of all motors by hand-control + some motors have double-control by foot pedals
Two plugs 230 V for use of external electric units, inbuilt breaker with protector
Inbuilt transformator for halogen lamp
 plastic bowl, holder of paper roll, step for doctor, reserve-battery for emergency operation



Brochure Golem F1 (PDF)

Product configurator GOLEM F1 – gynaecological chair for IVF

Name Picture ID Select
GOLEM F1 CLASSIC - examining and treatment table for GYN/URO/IVF

Complete adjustable of all segments by 6 electromotors
Full synchronic adjustable of all positions in same time with full-load
4 memories to save most useable positions
foot supports which makes possible changeover from sit to examination position
Table has four rotation double wheels with diameter 75 mm with central brake.
Control of all motors by hand-control + some motors have double-control by foot pedals
Two plugs 230 V for use of external electric units, inbuilt breaker with protector
Inbuilt transformator for halogen lamp
plastic bowl, holder of paper roll, step for doctor, reserve-battery for emergency operation

G 00 01
Foot supports

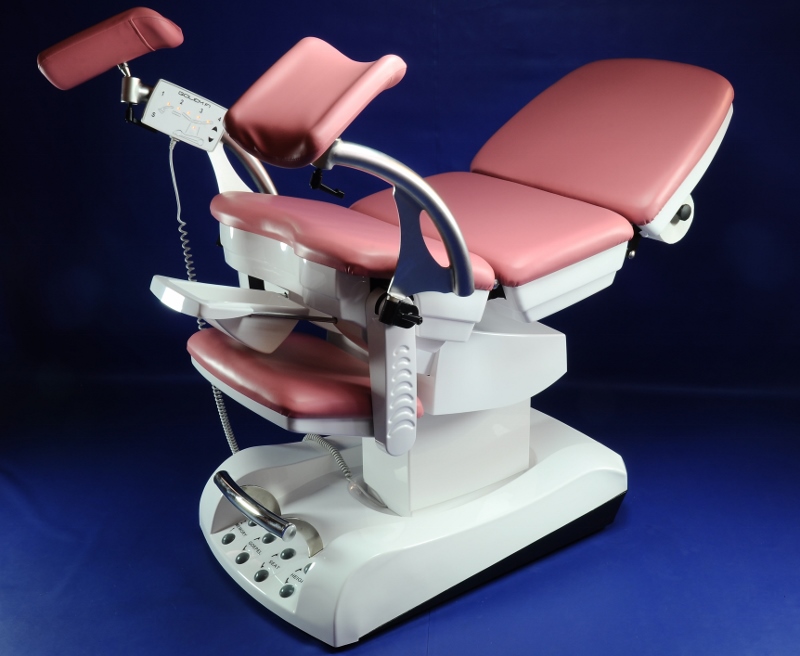

Goeppel leg support
D 00 05
Halogen lamp on a flexible holder
D 00 10
Without colposcope holder
Colposcope holder OPTOMIC
D 00 20
Colposcope holder OPTOMIC and TV monitor
TV monitor
Colposcope holder ZEISS
D 00 21
Colposcope holder LEICA
D 00 22
Colposcope holder LEISEGANG
D 00 23
Without EUROrails on back segment
EURObars on back segment (one pair)
D 00 40
Hand holder used during infusion
D 06 12
Infusion holder
D 06 13
Mouthpiece holder
D 06 14
Fastening strap
D 06 15

Sampler S1

S1


S2


S3


S4


S5


S6


S7


S8



(download PDF version of your configuration)

Basic information











Billing address










Delivery address












Basic information







Contact person











Billing address










Delivery address











* Required fields
Delivery time is 6 weeks, please contact your distributor for official offer include all details.
