GOLEM ENT operating table for oftalmology / ENT / dermatology / plastic surgery

DSC_3190DSC_3186DSC_3185DSC_3200DSC_3169DSC_3171DSC_3176DSC_3194DSC_3192DSC_3193DSC_3195DSC_3197DSC_3198DSC_3191DSC_3199
Configure product

GOLEM ENT operating table is specially designed for operation in ophthalmology, ENT, dermatology and plastic surgery. Doctors in these fields will be maximally satisfy with some specific adjustments to this model.

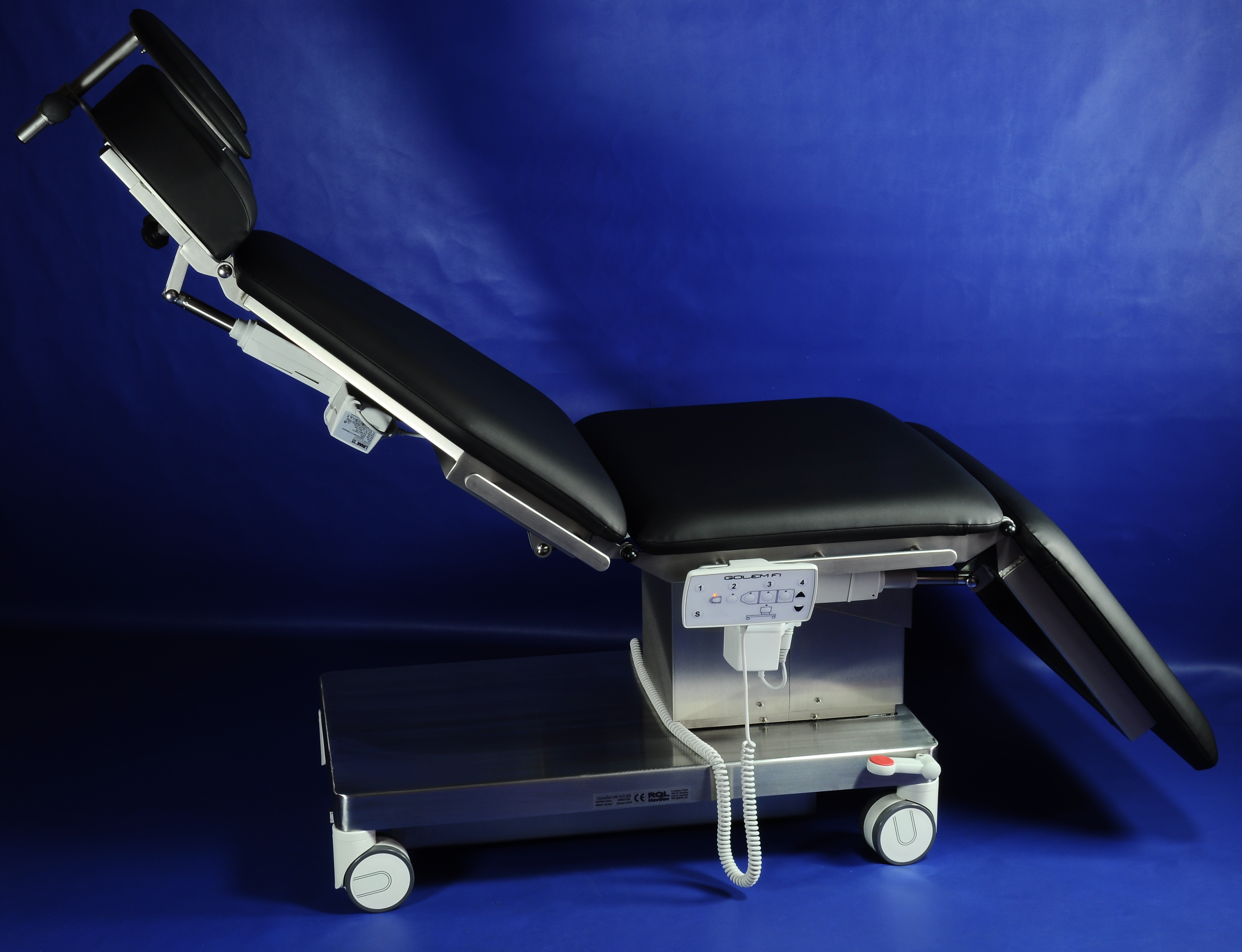

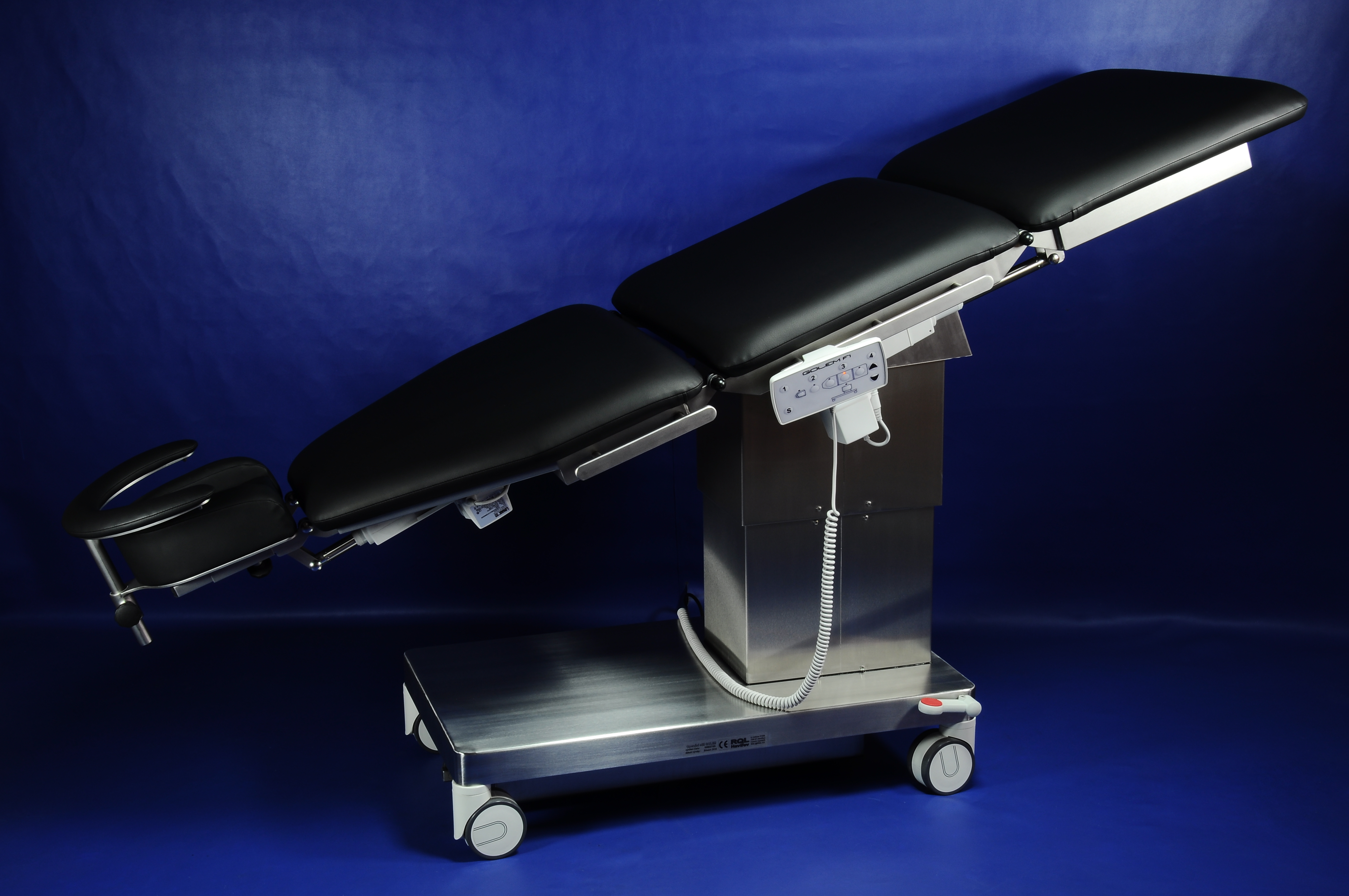

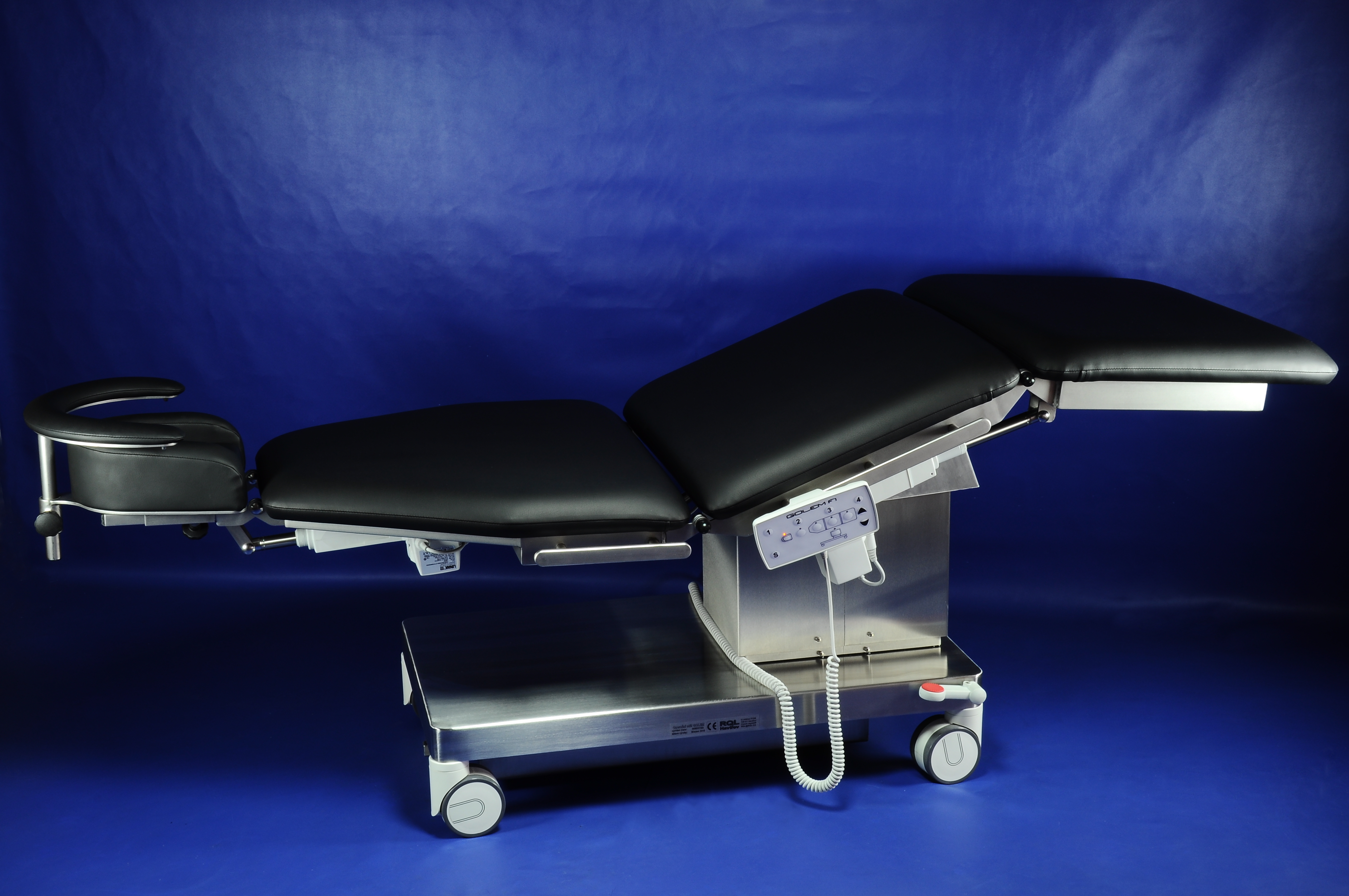

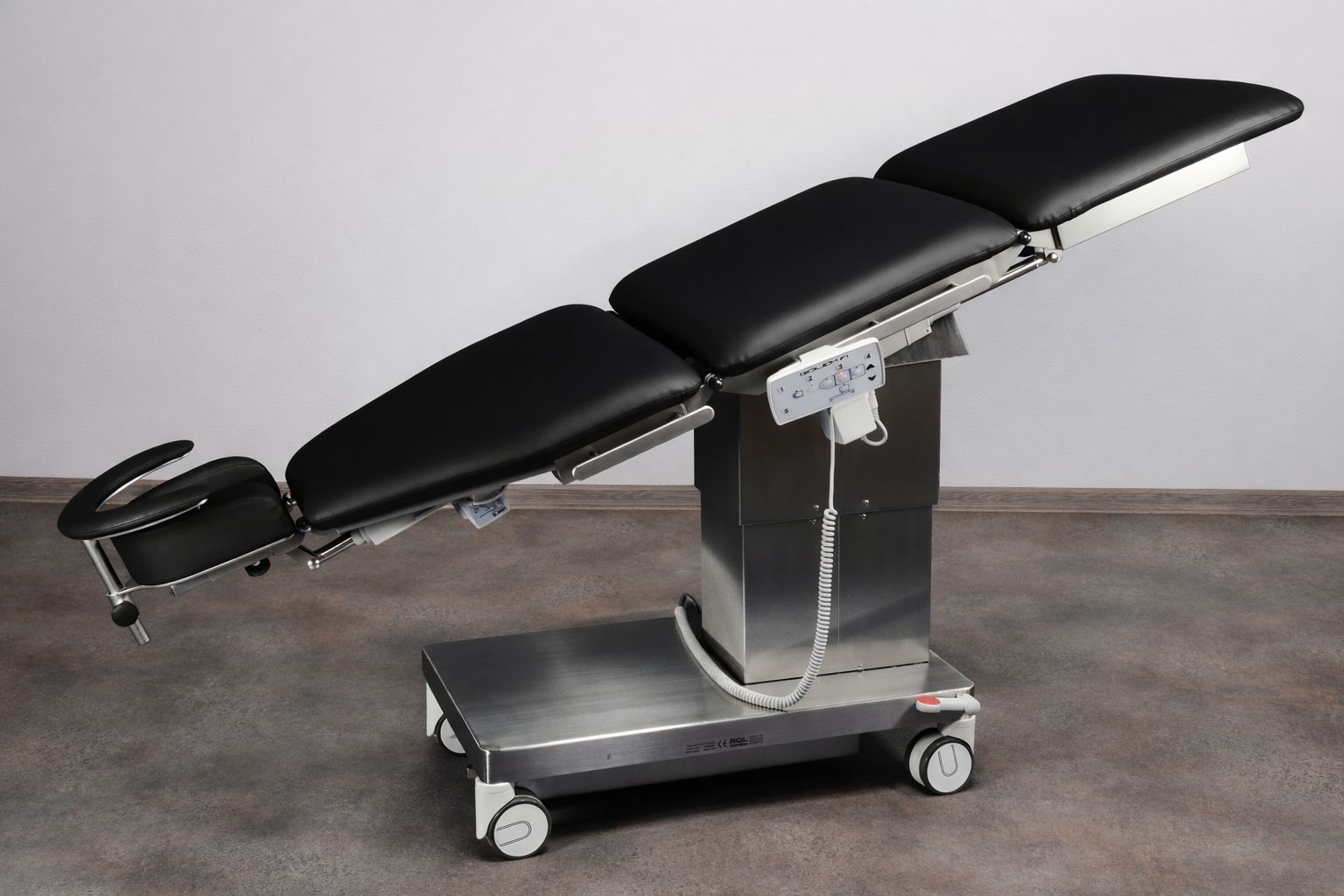

The work area is divided into 4 segments (legs, seat, back, head) and is adjustable in height and Trendelenburg position. Also inclinations foot, the back and the head segment is adjusted electrically. All these moves are executed five silent, reliable electric LINAK with manual control. The table is equipped with electronic memories of 4 positions that can be easily accessed by pressing a button (for example, the starting position, work location, location “0”)

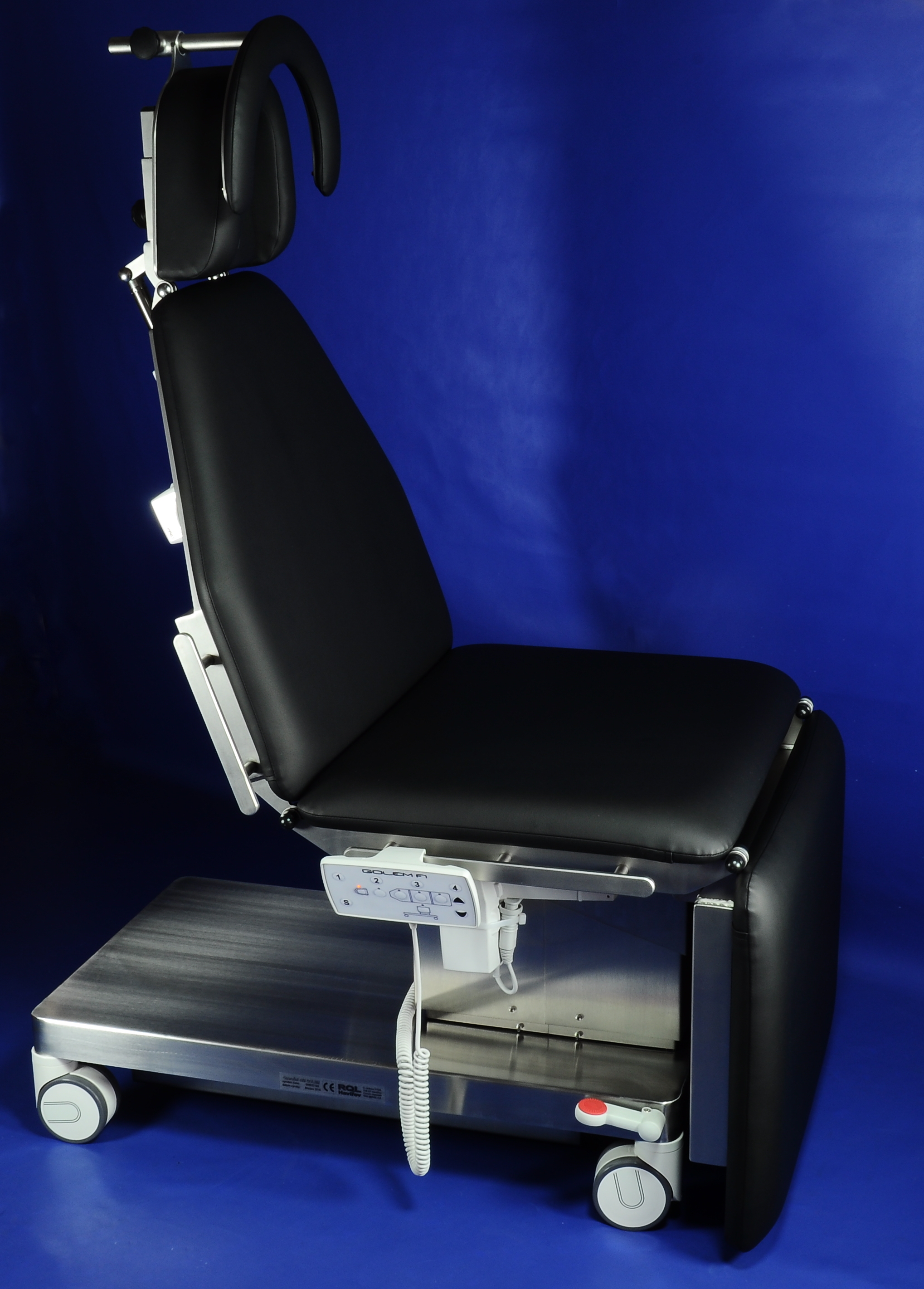

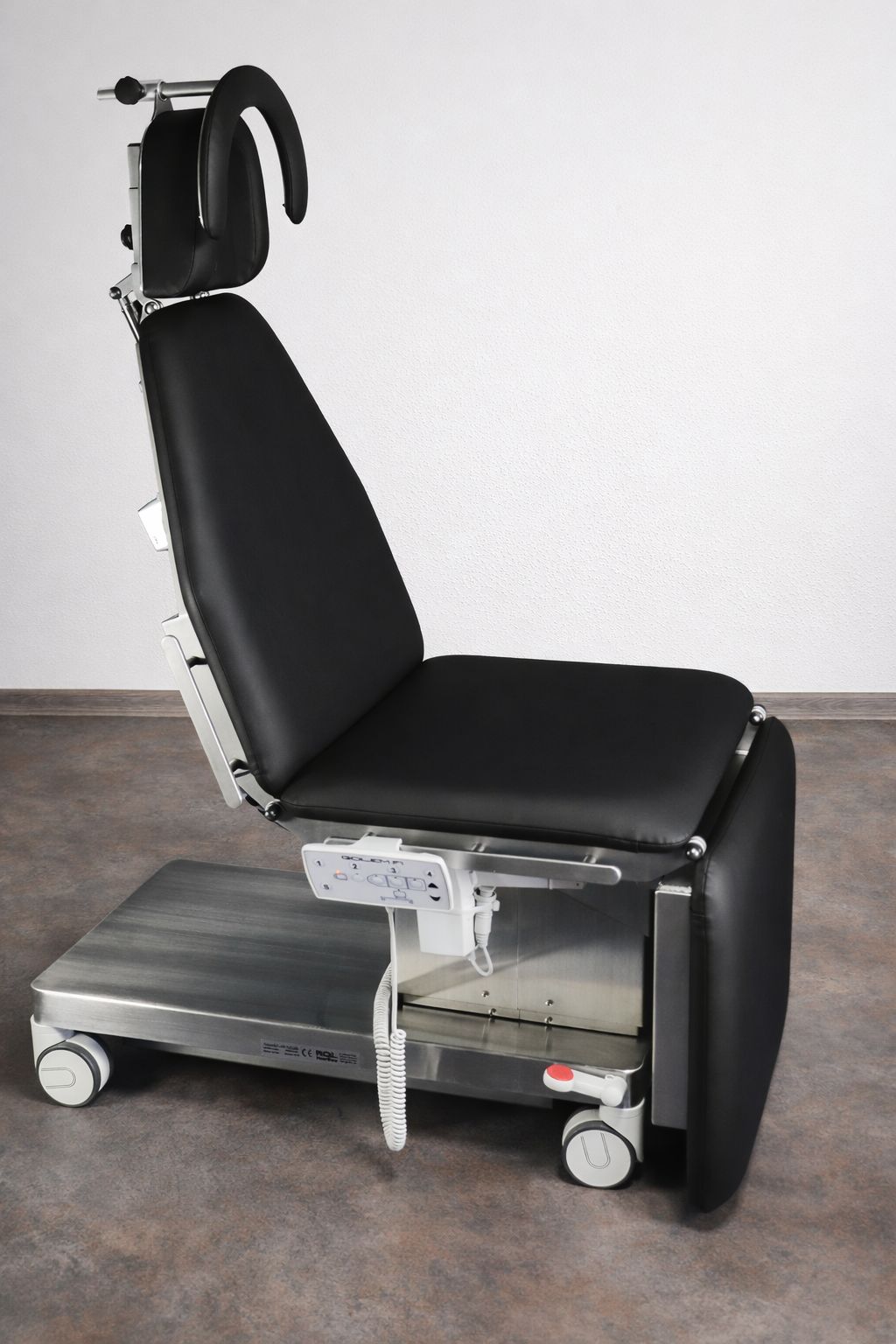

Positioning of segments is performed. Wide range of positions allows the patient to be seated in a sitting position and adjusting positions to working position effortlessly.

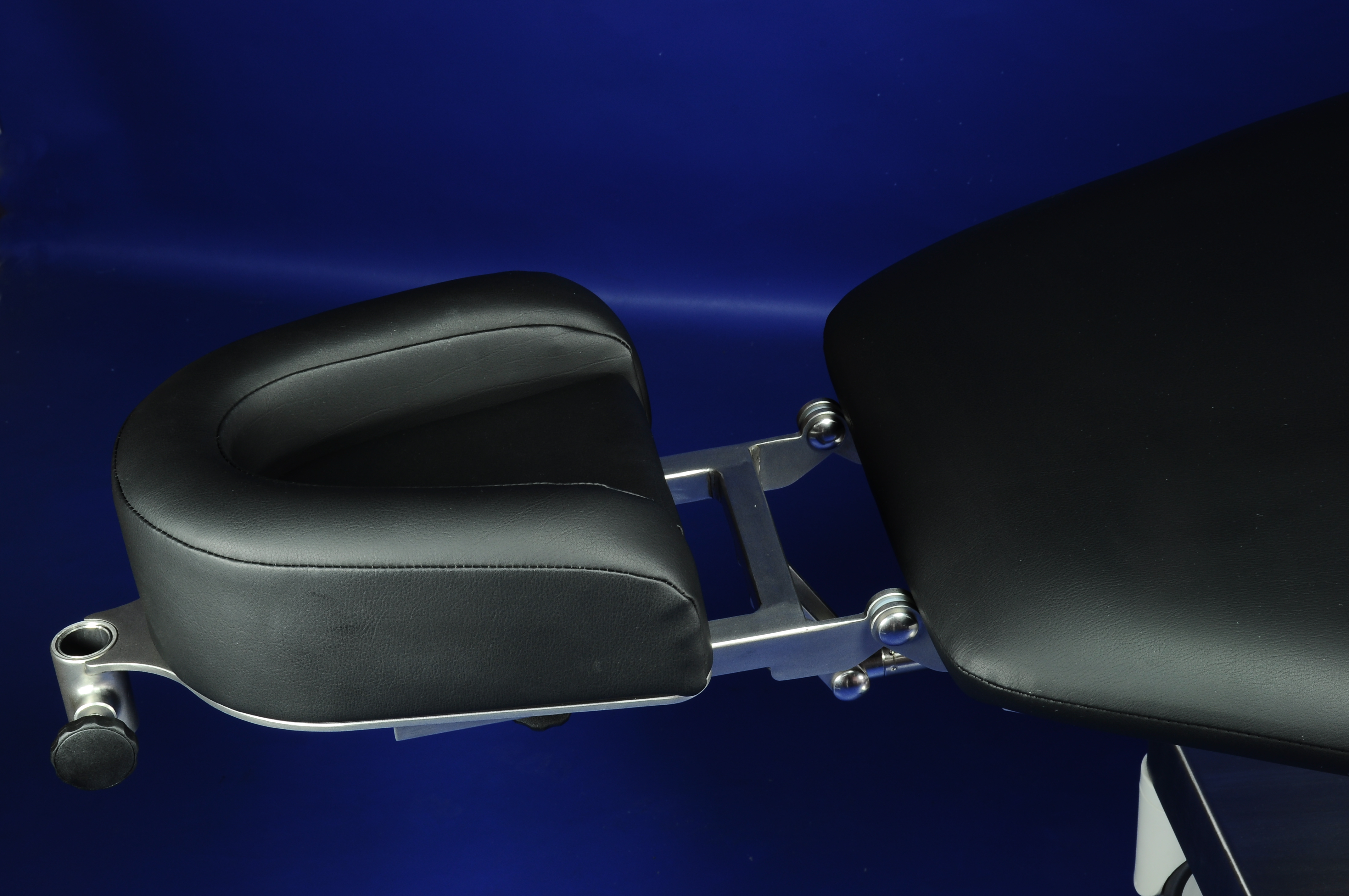

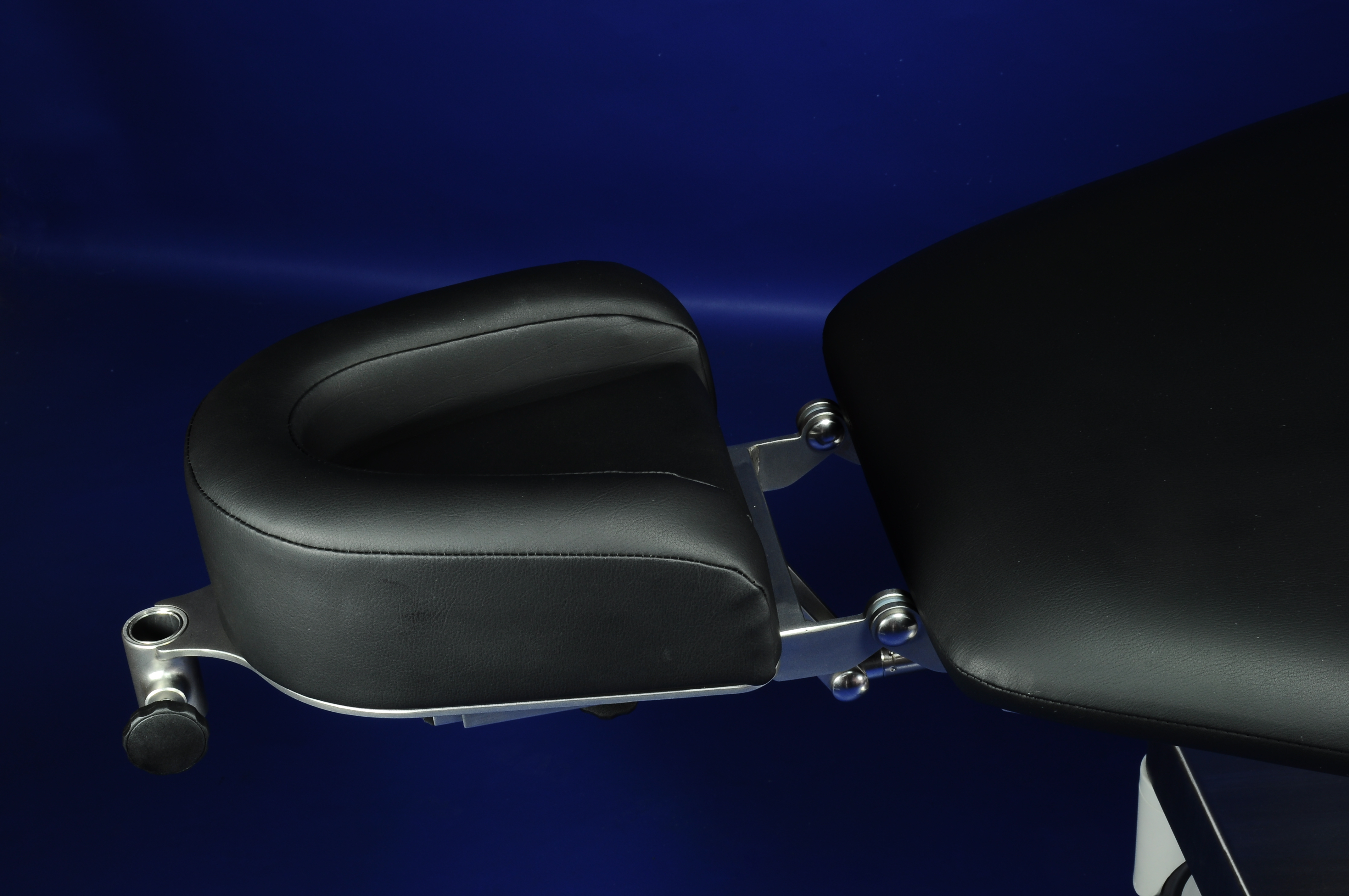

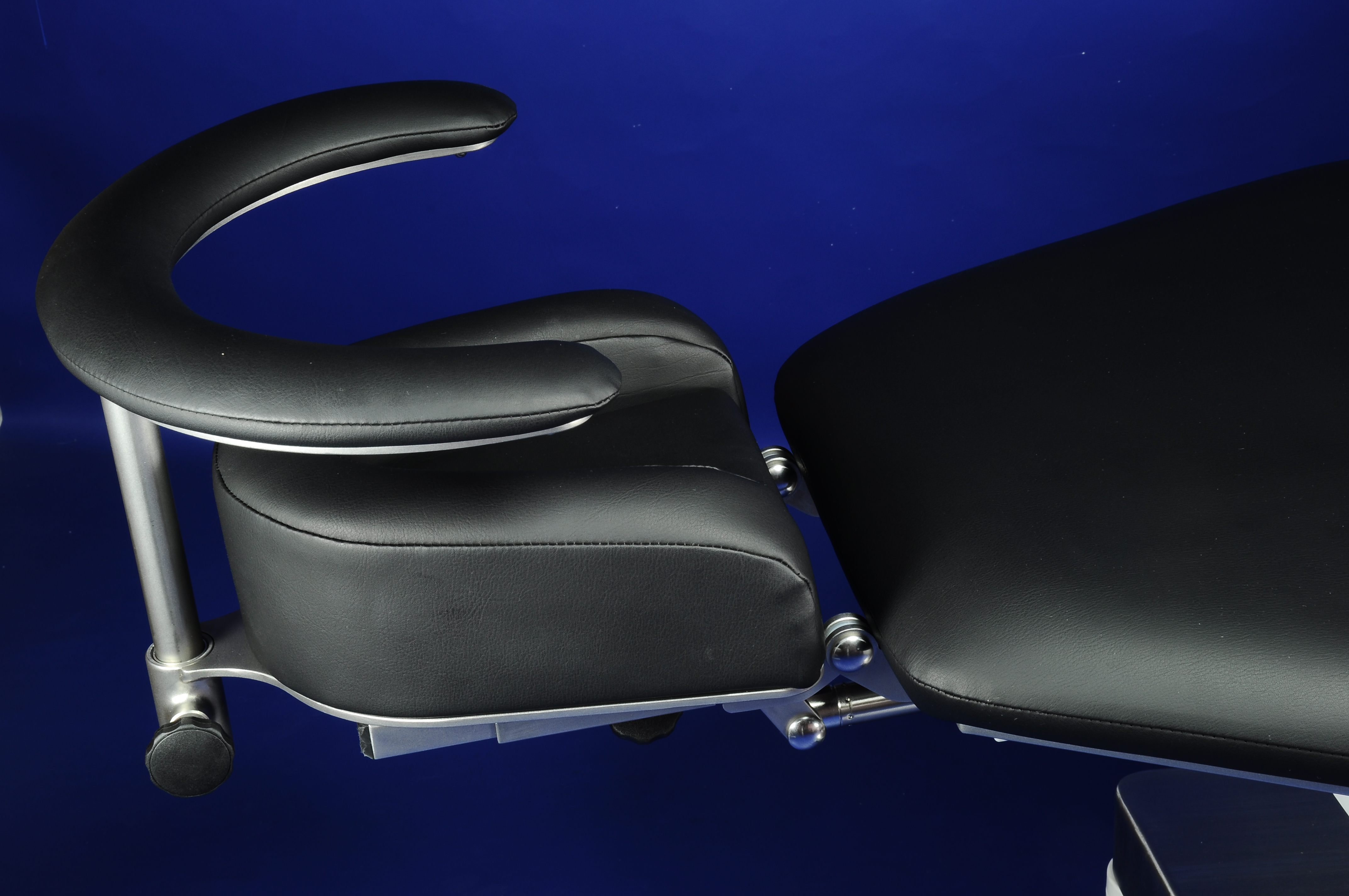

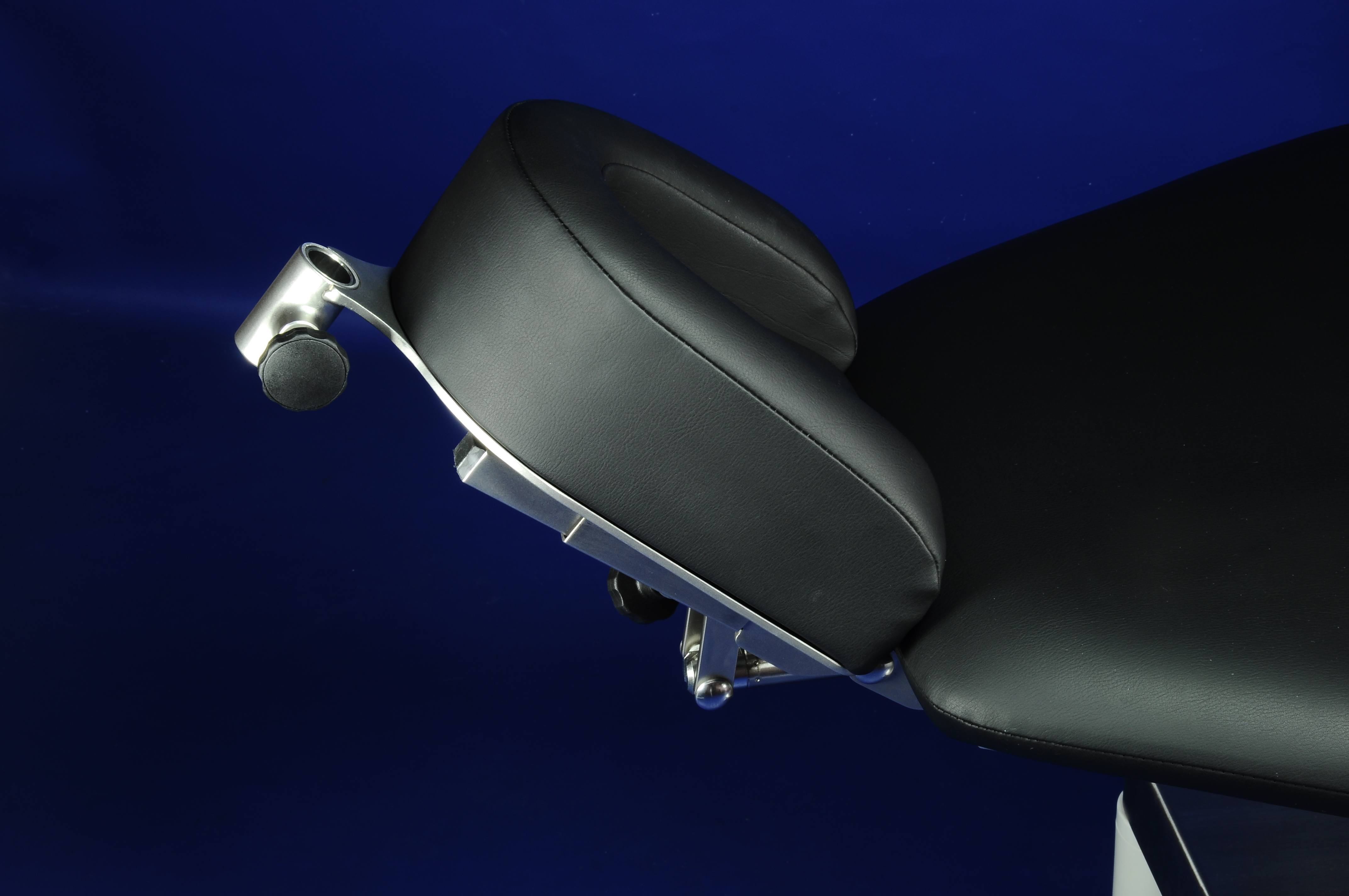

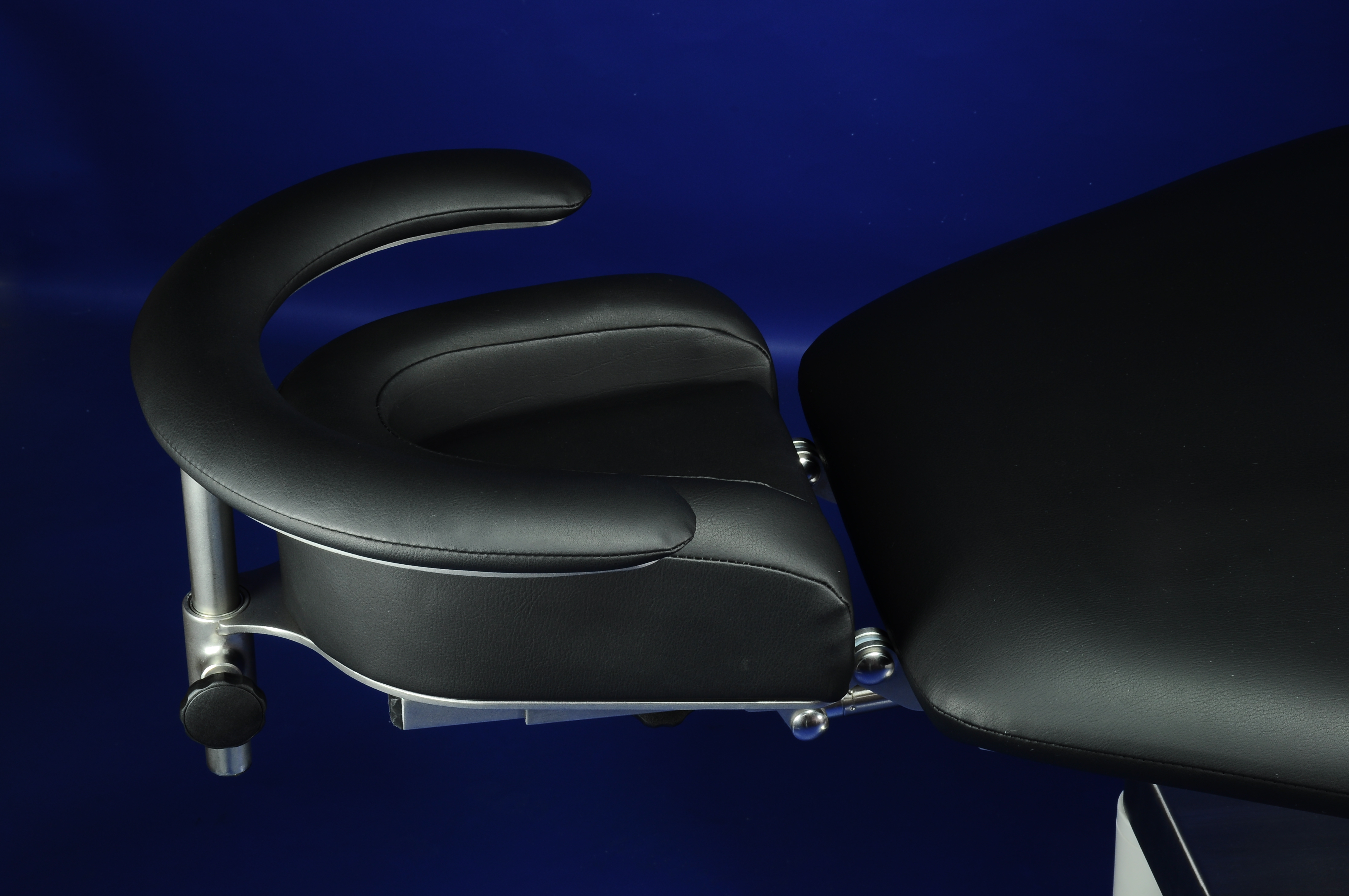

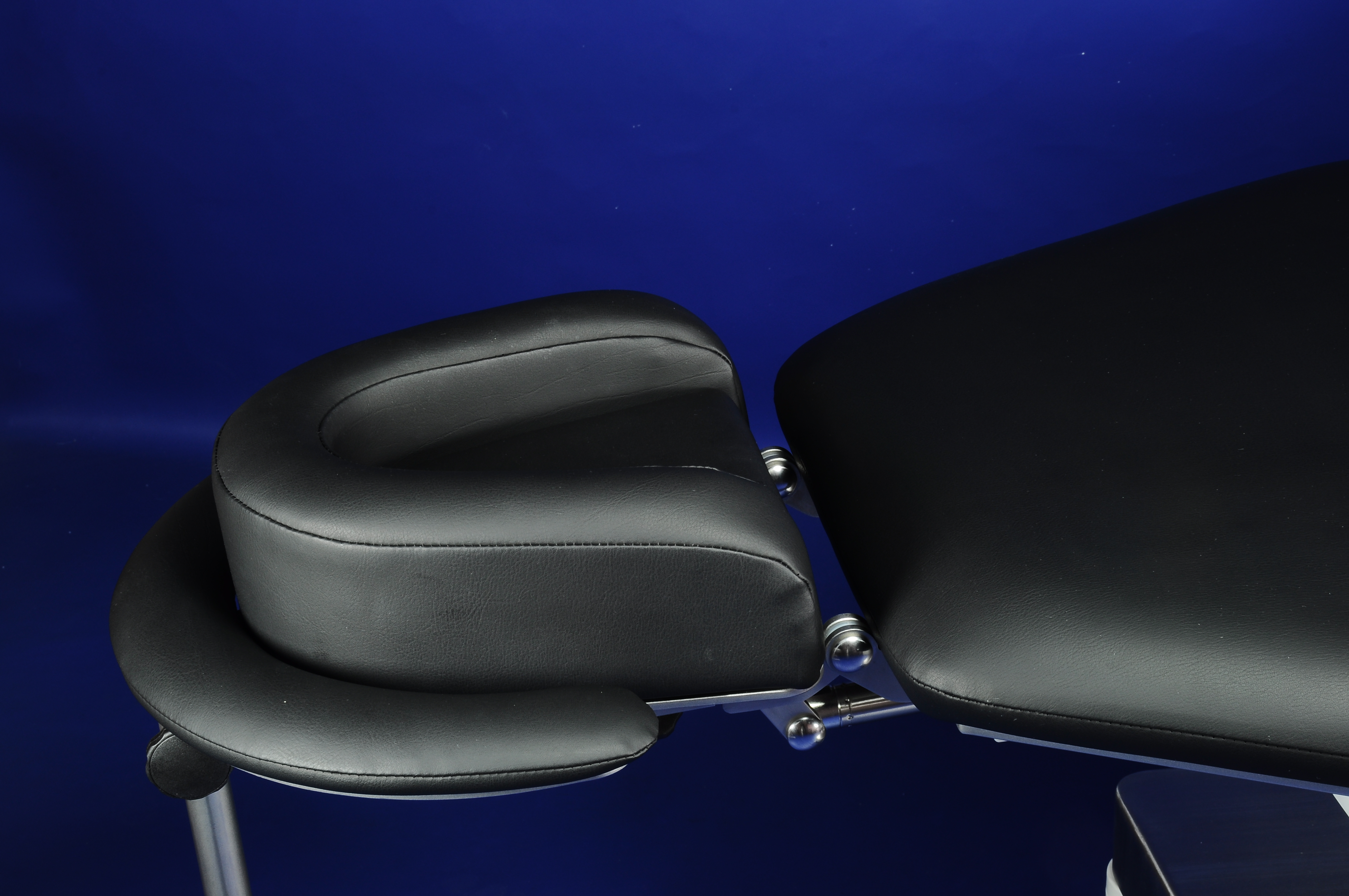

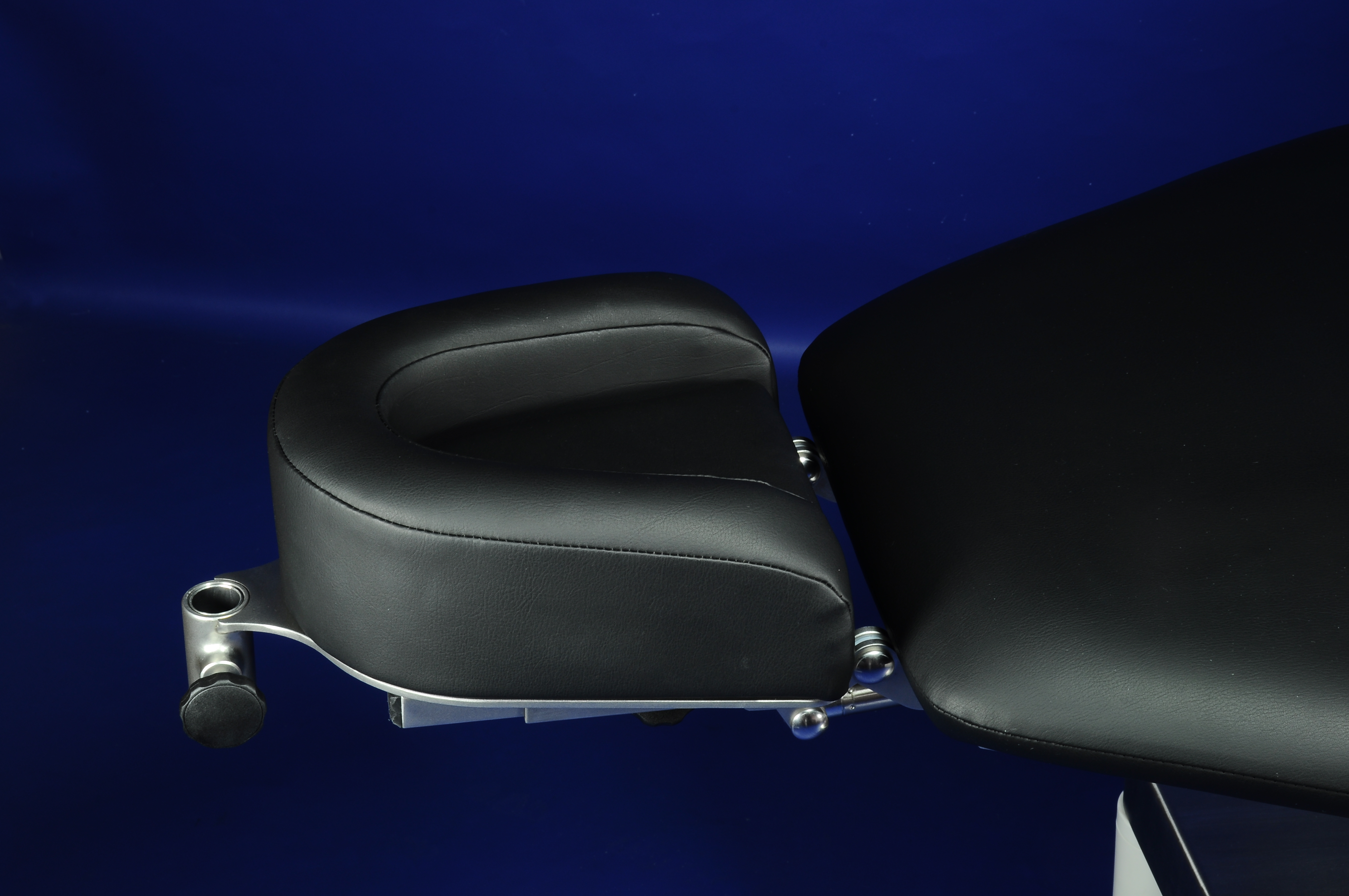

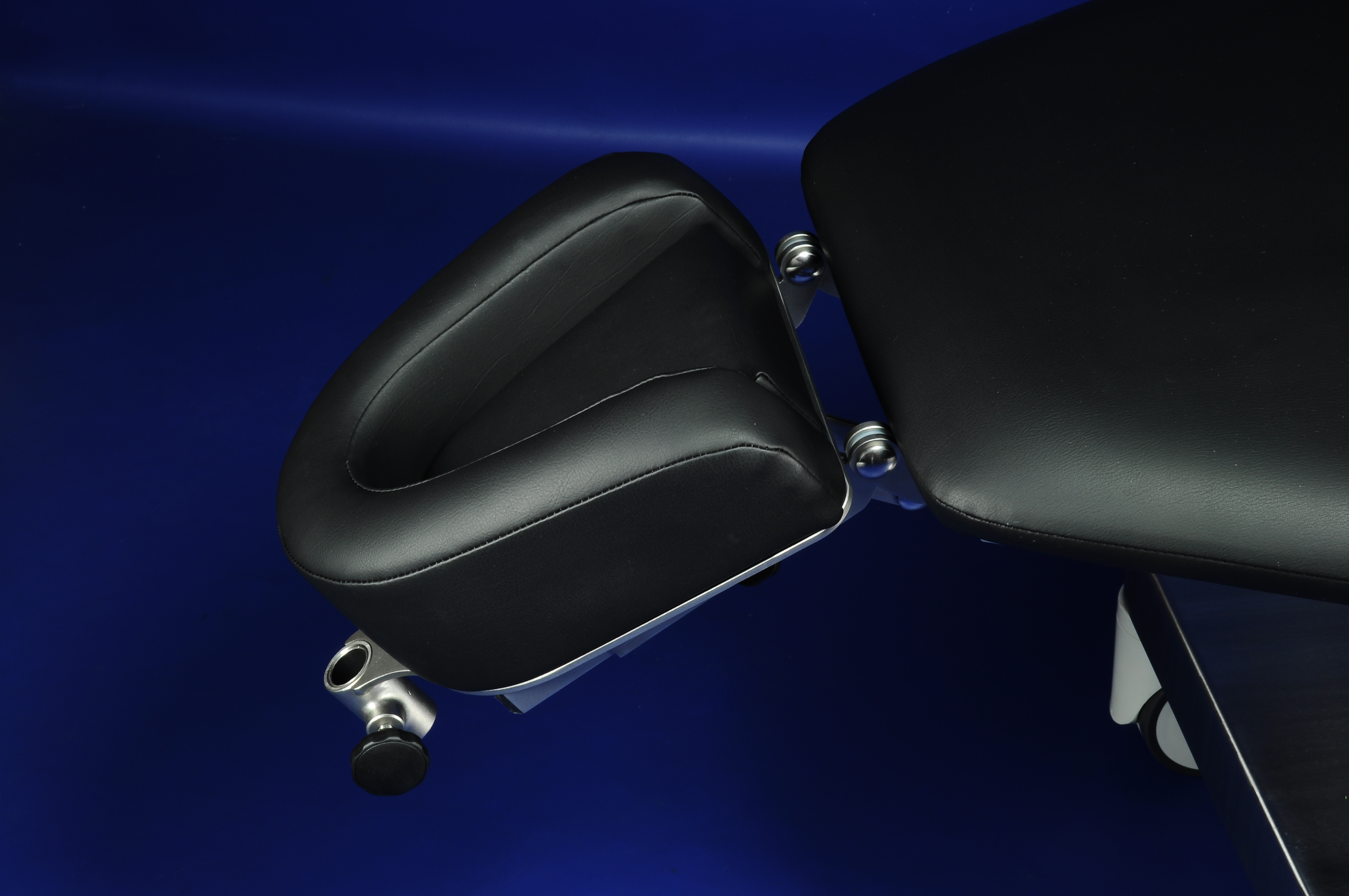

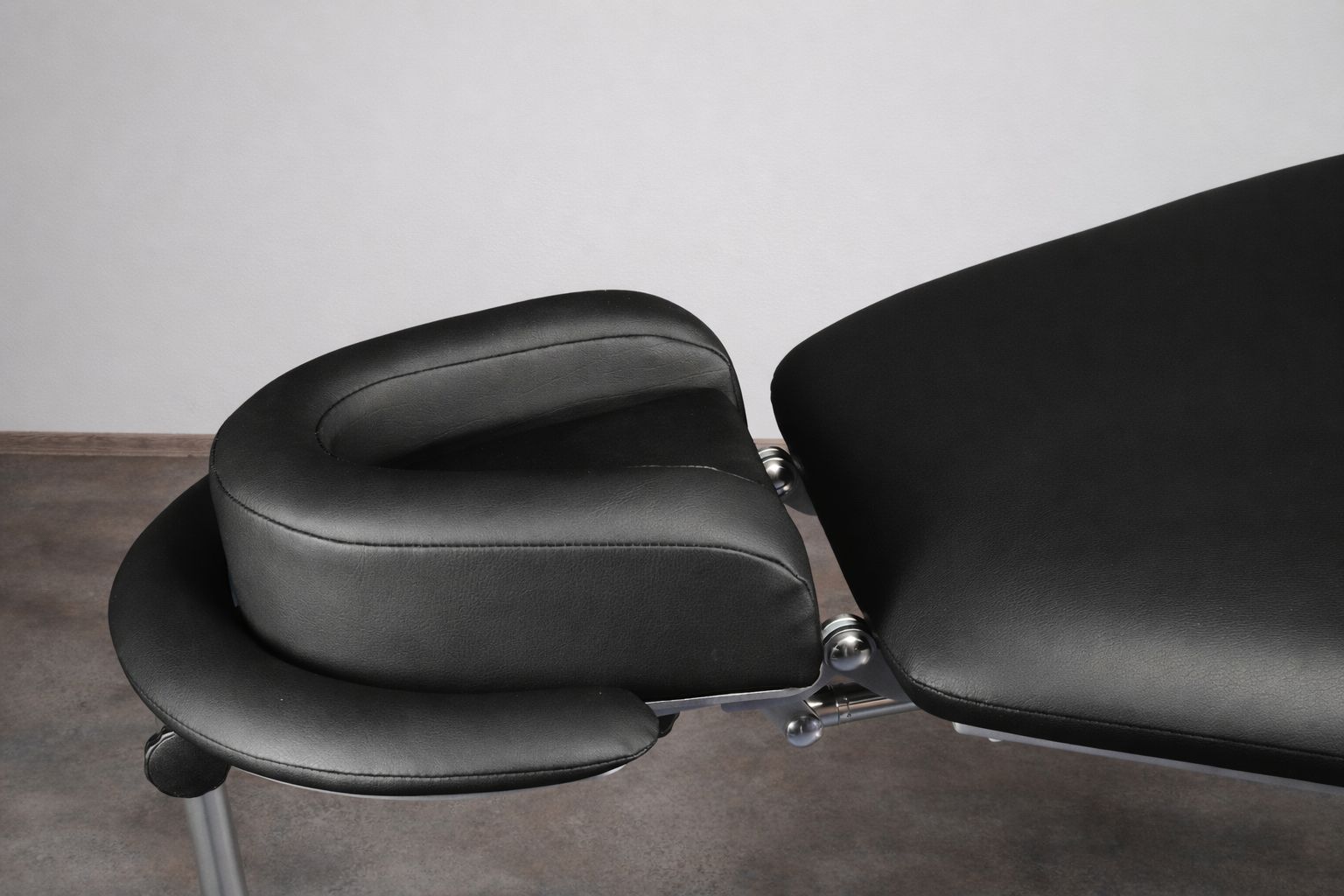

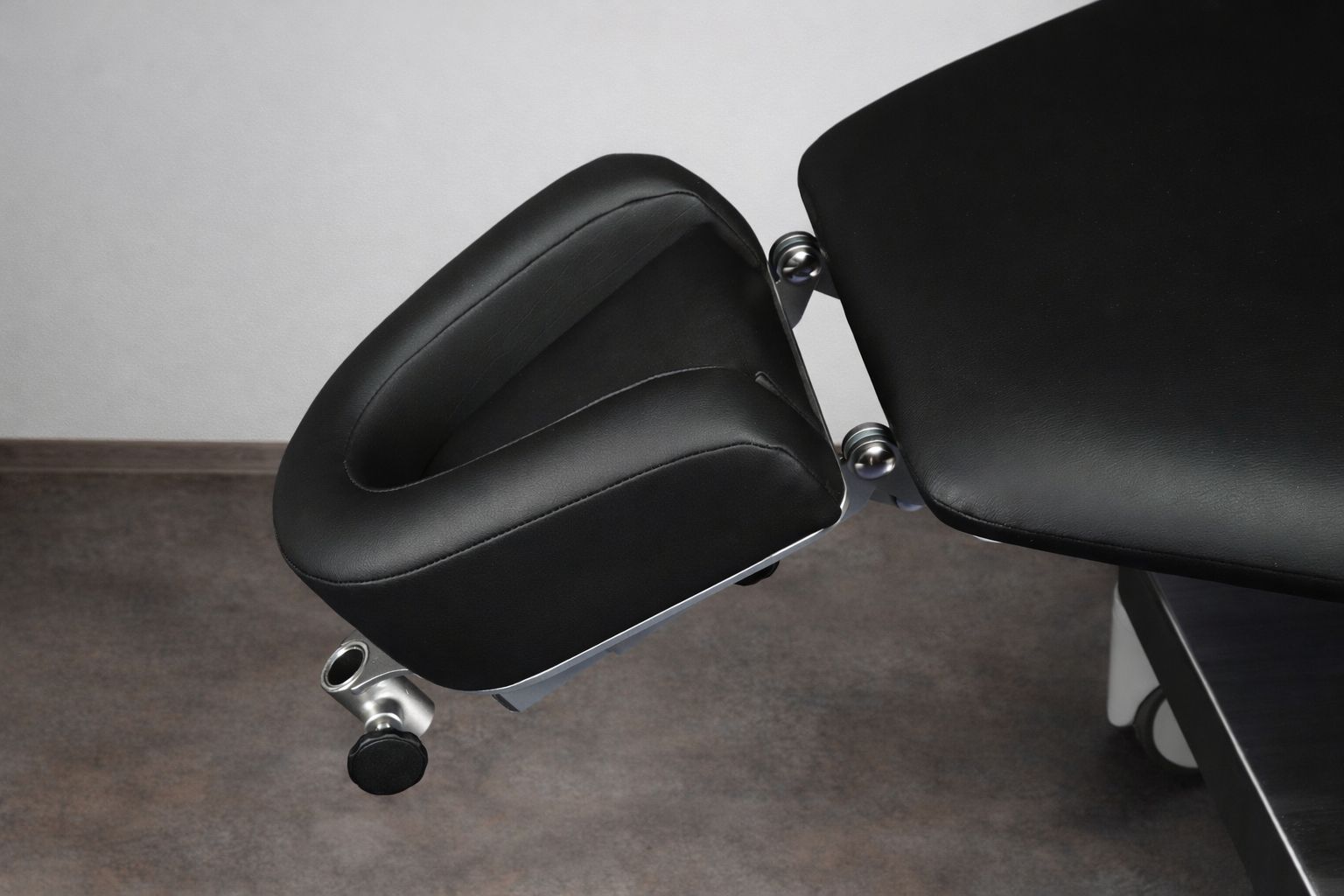

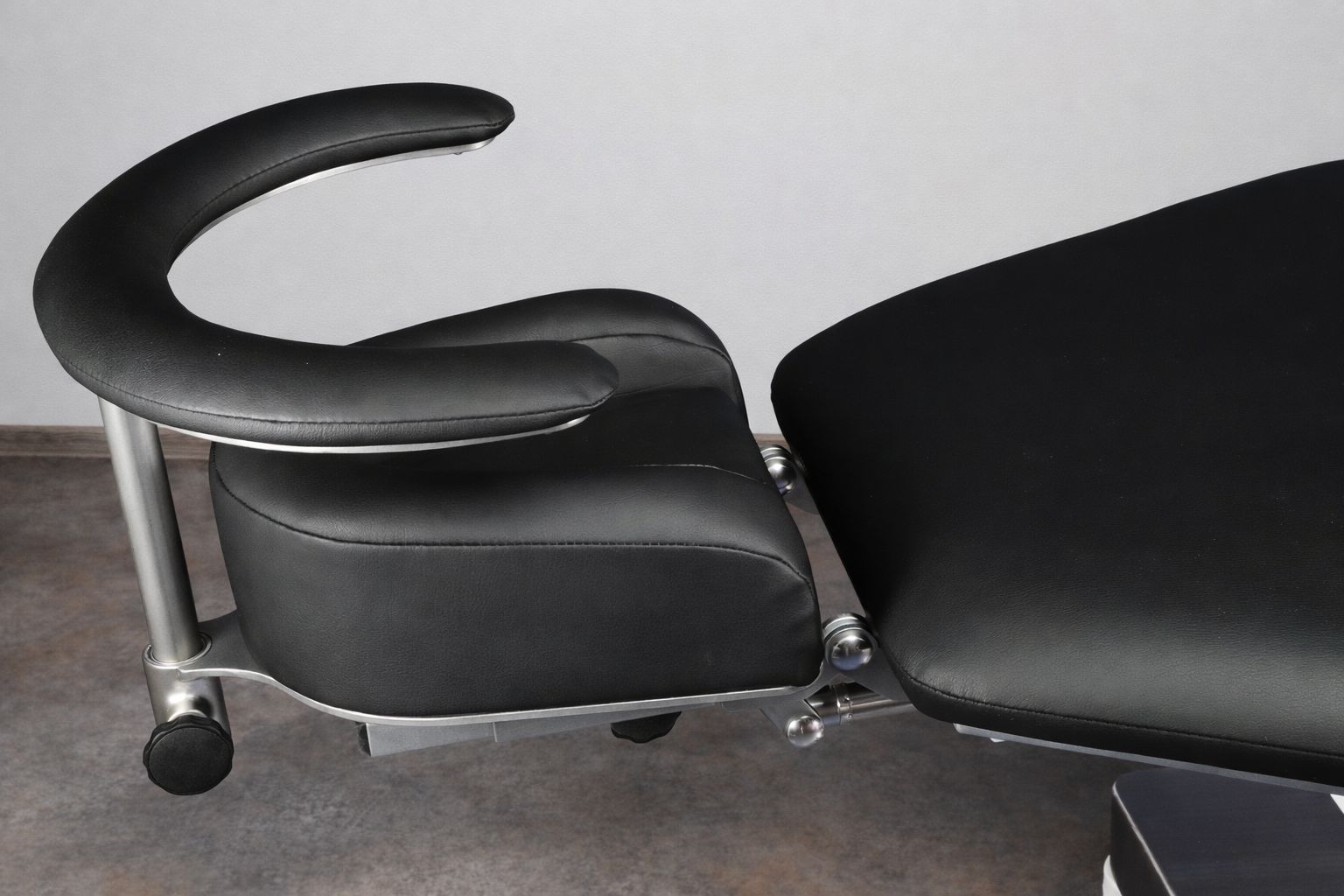

The head segment allows the lean forward/back and can also adjust the height of the patient. For head segment is placed removable and adjustable support arm of the doctor.

The table has a fixed and stable stainless steel construction, washable and disinfected desktop with trim black antistatic leatherette. Around EUROrails segments are placed for fastening of any accessory.

The standard version of the table is traveling with centrally braked castors Ø 100 mm. Power is from a standard desk drawer, but the table is equipped with a built-in fully automatic charger and maintenance-free batteries for case of power failure.



Technical parametres:

Overal table length                                                   2 030 mm



Operating surface width                                          640 mm

Operating surface width include EUROrails                        670 mm



Lengths of the segments :

Head                                                                          265 mm

Back                                                                           650 mm

seat                                                                            550 mm

leg                                                                              510 mm



lowest position of table                                          580 mm

electric drive adjustable lift                                     300 mm

electric drive adjustable trendelenburg                  20°



electric drive adjustable of:

head                                                                          ± 35°

back                                                                           0° + 70°

leg                                                                               0° – 90°



permissible loading of the operating surface         150 kg (total load)

weight of able                                                                       115 kg



Brochure GOLEM ENT operating table for ofthalmo (PDF)

Product configurator GOLEM ENT operating table for oftalmology / ENT / dermatology / plastic surgery

Name Picture ID Select
GOLEM ENT operating table for oftalmology / ENT / dermatology / plastic surgery

The work area is divided into 4 segments (legs, seat, back, head) and is adjustable in height and Trendelenburg position. Also inclinations foot, the back and the head segment is adjusted electrically. All these moves are executed five silent, reliable electric LINAK with manual control. The table is equipped with electronic memories of 4 positions that can be easily accessed by pressing a button (for example, the starting position, work location, location "0")

">

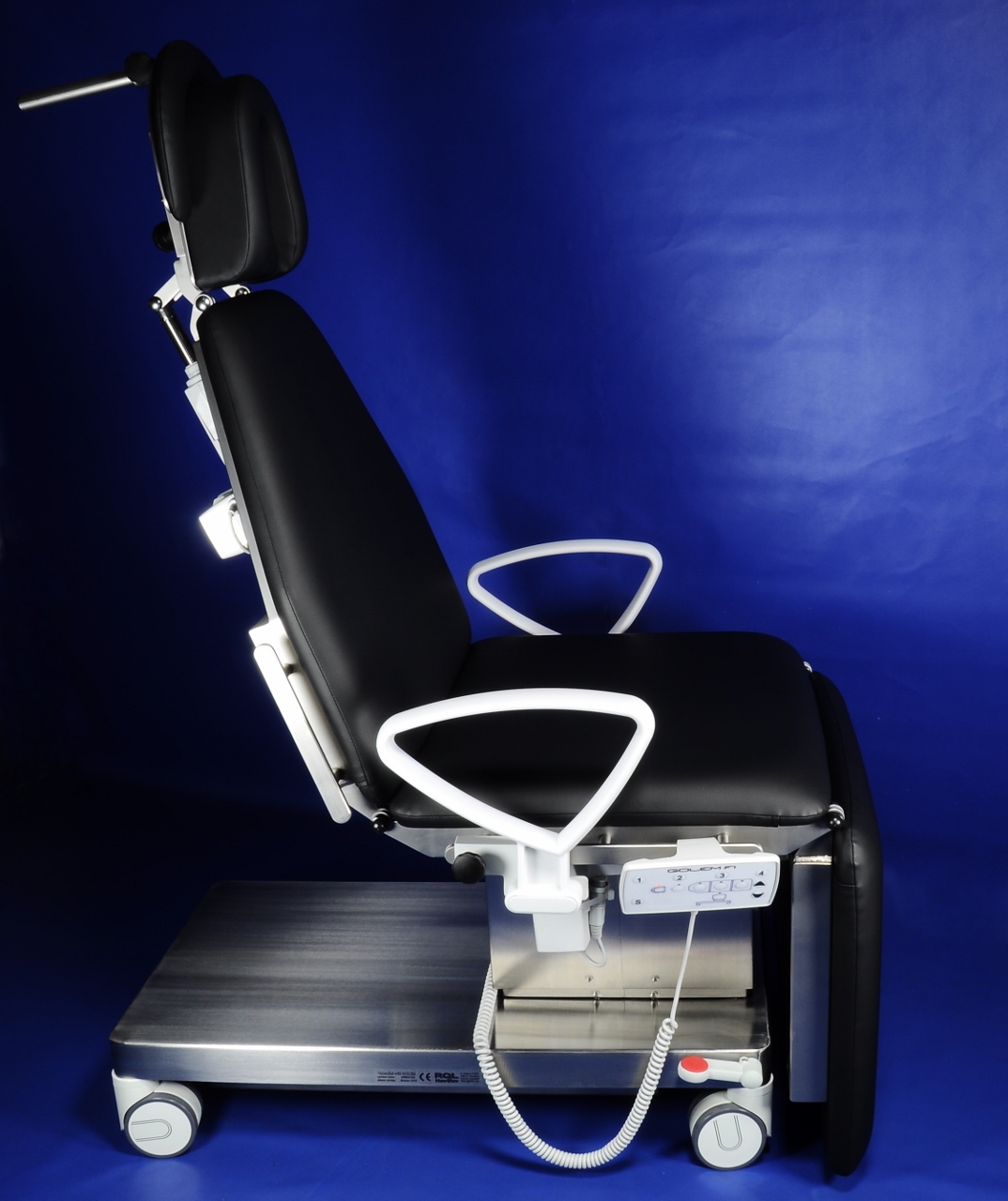

Handrails on EUROrails
Dual control by hand control + pedal buttons


(download PDF version of your configuration)

Basic information











Billing address










Delivery address












Basic information







Contact person











Billing address










Delivery address











* Required fields
Delivery time is 6 weeks, please contact your distributor for official offer include all details.
