GOLEM 6ET – EXAMINING chair for gynaecology and urology

Golem 6ET examining (G 06 04) + Goeppel leg support (D 06 01) (1095x1280)Golem 6ET (G 06 04) + Goeppel leg support (D 06 01) (3) (1199x1280)Golem 6ET (G 06 04) + Goeppel leg support (D 06 01) (2) (1280x834)Golem 6ET (G 06 04) + Heel support(stirrups) (D 06 2) (1280x850)Braked wheels 75mm (1280x1016)Golem 6ET examining chyir for gynecologyGolem 6ET examining chyir for gynecologyGolem 6ET examining chyir for gynecologyGolem 6ET examining chyir for gynecologyGolem 6ET examining chyir for gynecologyGolem 6ET examining chyir for gynecologyGolem 6ET examining chyir for gynecologyGolem 6ET examining chyir for gynecologyGolem 6ET examining chyir for gynecologyGolem 6ET drawing
Configure product

Gynaecology chairs of series GOLEM 6 EXAMINING are designed for ambulatory  gynaecological procedures and common treatment. They are characterized by a modern design with a sophisticated and fully functional concept that meets all your requirements. Full covering of all parts with grey plastic casings ensures very easy maintenance of the table.

The 600 mm wide operating surface is covered with seamless artificial leather in a colour of your choice; it is divided into a seat with an opening and a seat backrest with a lifted head segment. All electric drives are foot pedal-operated and the positions can be changed even if the table is fully loaded. Lengths of the segments: seat 400 mm, backrest 500 mm, head 400 mm, additional legs 500 mm.

All versions are always fully equipped:polyurethane Goepel leg supports or heel supports(stirups) (depending on your request) with a jointed fixture,foot step with a non-slip finish, stainless bowl, hand rails for the patient, and a paper roll holder to be used for the whole surface, the backrest and the seat, or for the seat only. All elements can be easily adjusted for your and your patient’s comfort.

The weight of the table is 60 -104 kg depending on version; the carrying capacity is 150 kg.

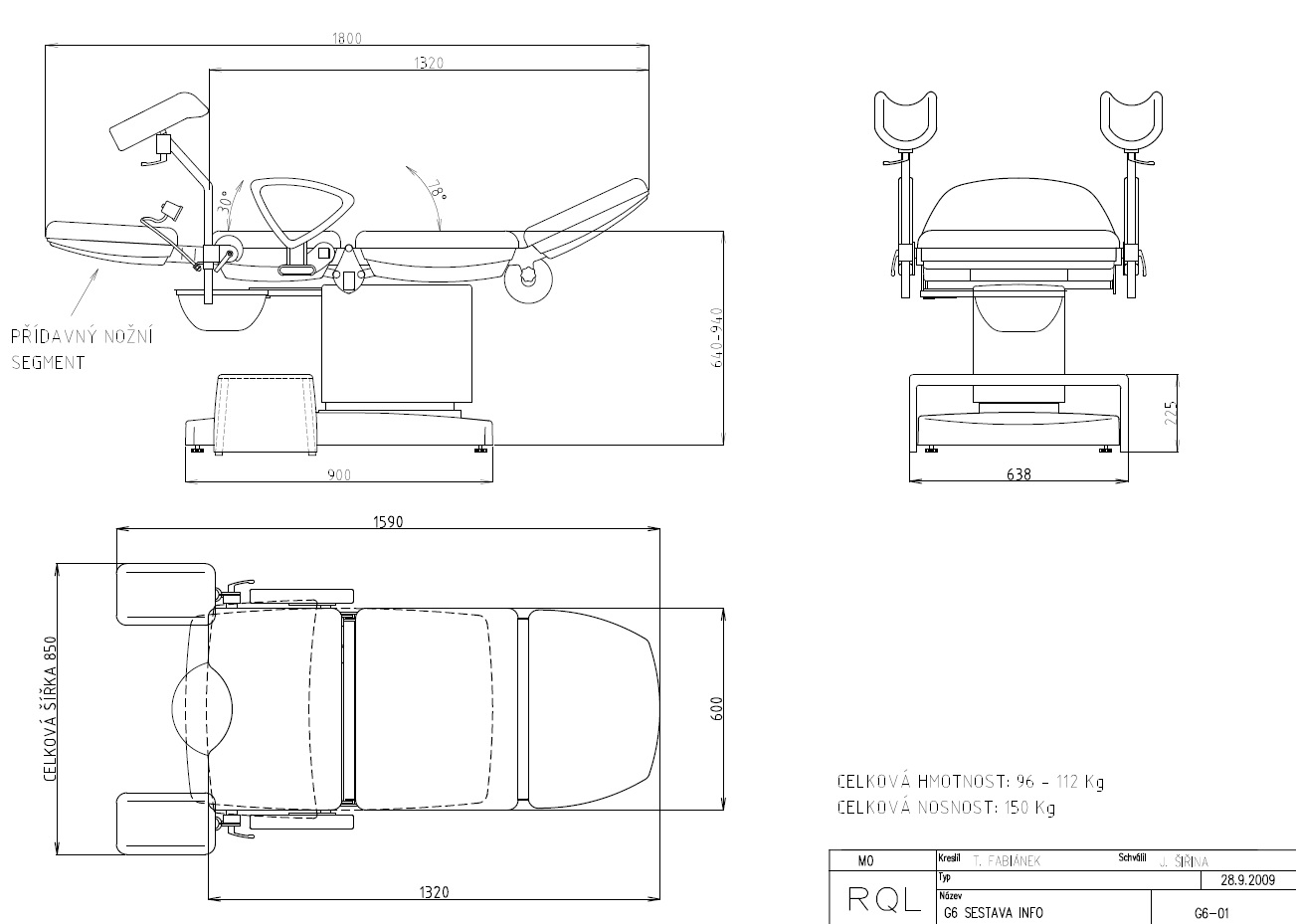

The build-in dimensions of the table are approx. 800 x 1 400 mm.

Each version can be further equipped according to your request.



Brochure GOLEM 6ET examination table for gynaecology and urology (PDF)

Product configurator GOLEM 6ET – EXAMINING chair for gynaecology and urology

Name Picture ID Select
GOLEM 6P (fixed high)

A fixed height of 800 mm, manually adjustable back tilt of 0°+ 80°, fixed seat.

G 06 01
GOLEM 6 (1 electromotor)

Electric drive adjustable height of 640 – 940 mm, manually adjustable back tilt of 0°+ 80°, fixed seat.

G 06 02
GOLEM 6E (2 electromotors)

Electric drive adjustable height of 640 – 940 mm, electric drive adjustable back tilt of 0°+ 80°, fixed seat.

G 06 03
GOLEM 6ET (3 electromotors + 3 memories of operation positions)

Electric drive adjustable height of 640 – 940 mm, electric drive adjustable back tilt of 0°+ 80°, electric drive adjustable seat (Trendelenburg) tilt of 0°+ 30°. The table is equipped with electronics enabling the user to program 3 operating positions that are automatically set using a respective pedal. This feature allows for easy switching between the initial and operating positions of the table without time delays.

G 06 04
Goeppels leg supports
D 06 01
Heel supports
D 06 02
Stationary lower frame with adjustable legs
D 04 99

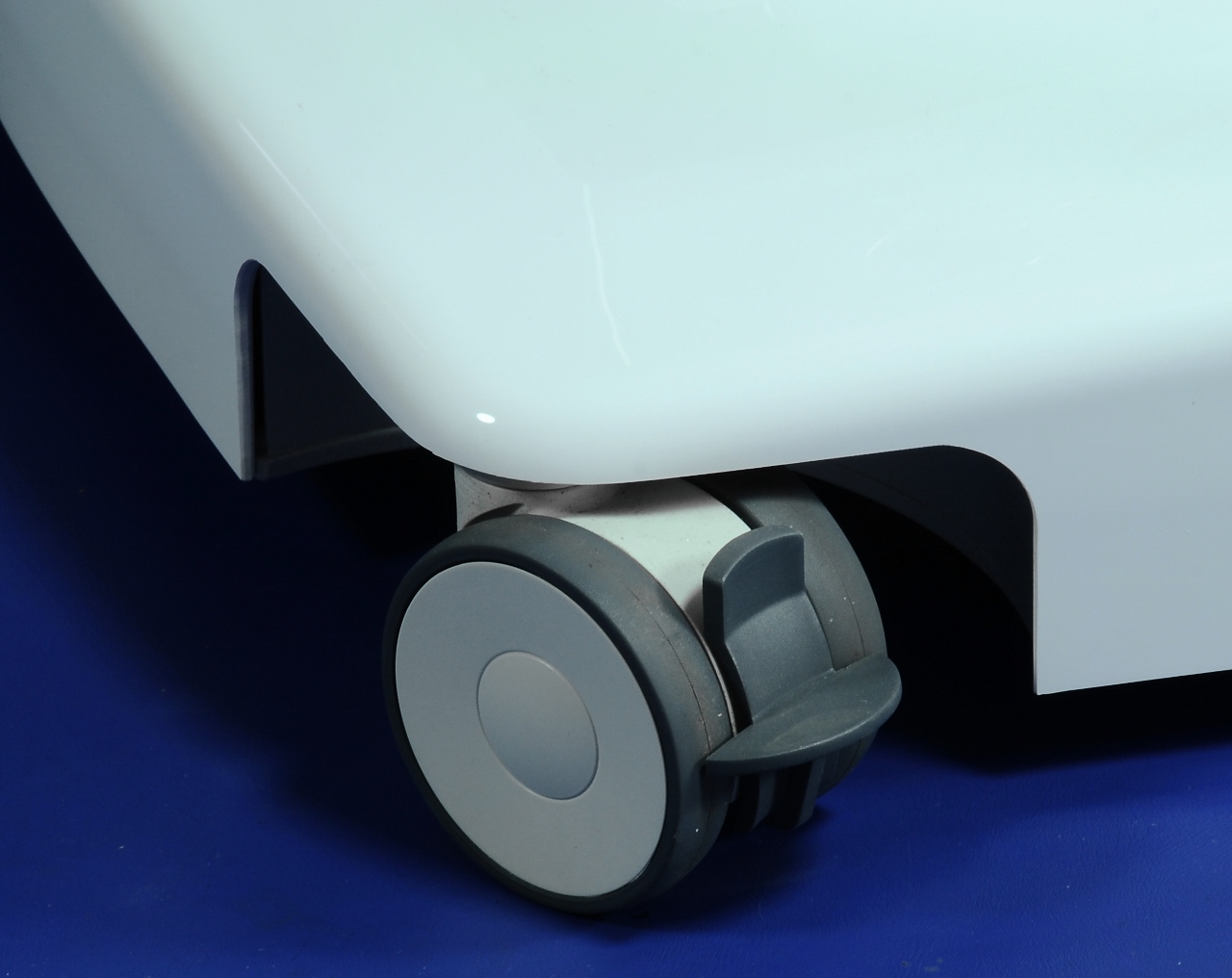

Braked wheels Ø 75 mm
D 06 03
Additional leg segment
D 06 04
Halogen lamp
D 06 05
Without colposcope holder

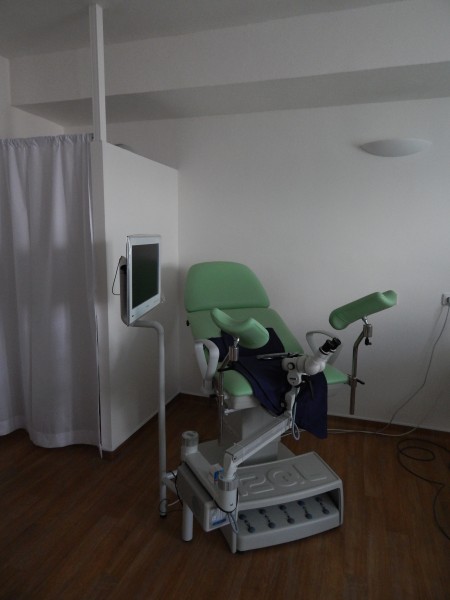

Colposcope holder OPTOMIC
D 06 80
Colposcope holder OPTOMIC + TV monitor
Colposcope holder LEICA
D 06 82
Colposcope holder ZEISS
D 06 81
Colposcope holder LEISEGANG
D 06 83
Stainless steel bowl
Stainless steel bowl with outlet and hose
D 06 08
Stainless steel bowl with outlet, hose and waste container
D 06 09
Stainless steel tray for instruments
D 06 10
Pedals on lower frame
Hand control

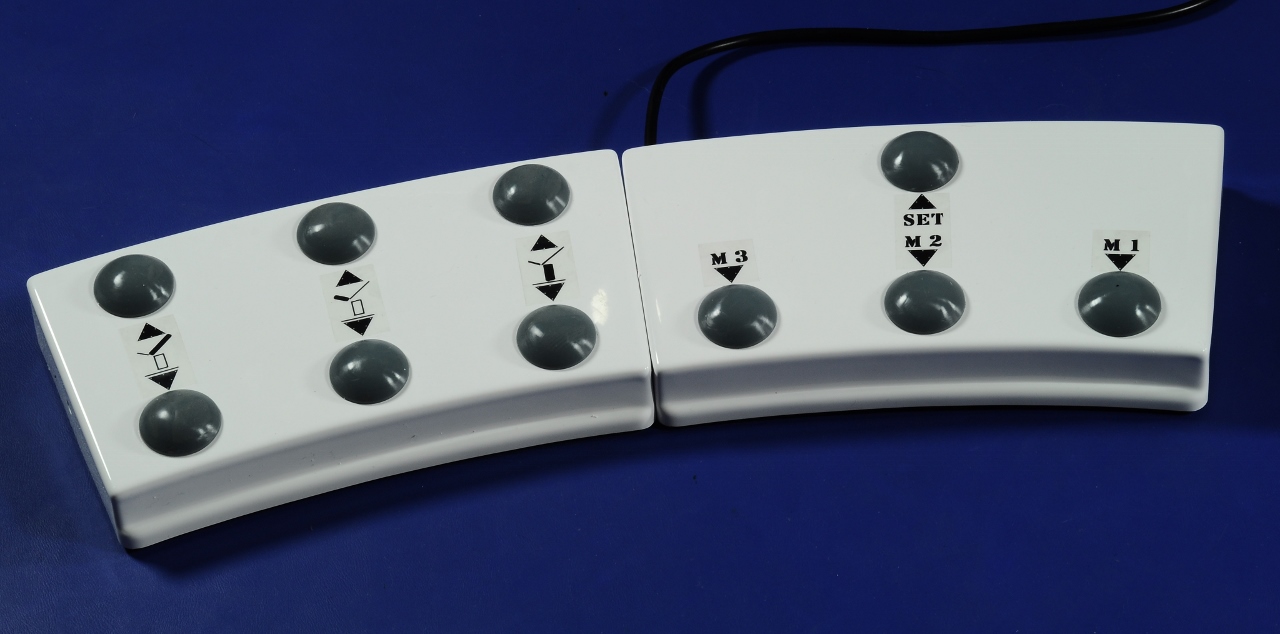

Separate pedal board on cable
D 06 30

Sampler

1B


2C


2D


3F


4A


5B


5C


6D


8D


9B


9C


11H


11K


12D


12E


12F


13A


2A


9D


9E


Sampler S1

S1


S2


S3


S4


S5


S6


S7


S8



(download PDF version of your configuration)

Basic information











Billing address










Delivery address












Basic information







Contact person











Billing address










Delivery address











* Required fields
Delivery time is 6 weeks, please contact your distributor for official offer include all details.
