GOLEM 6ET ESP – EXAMINING gynaecological table

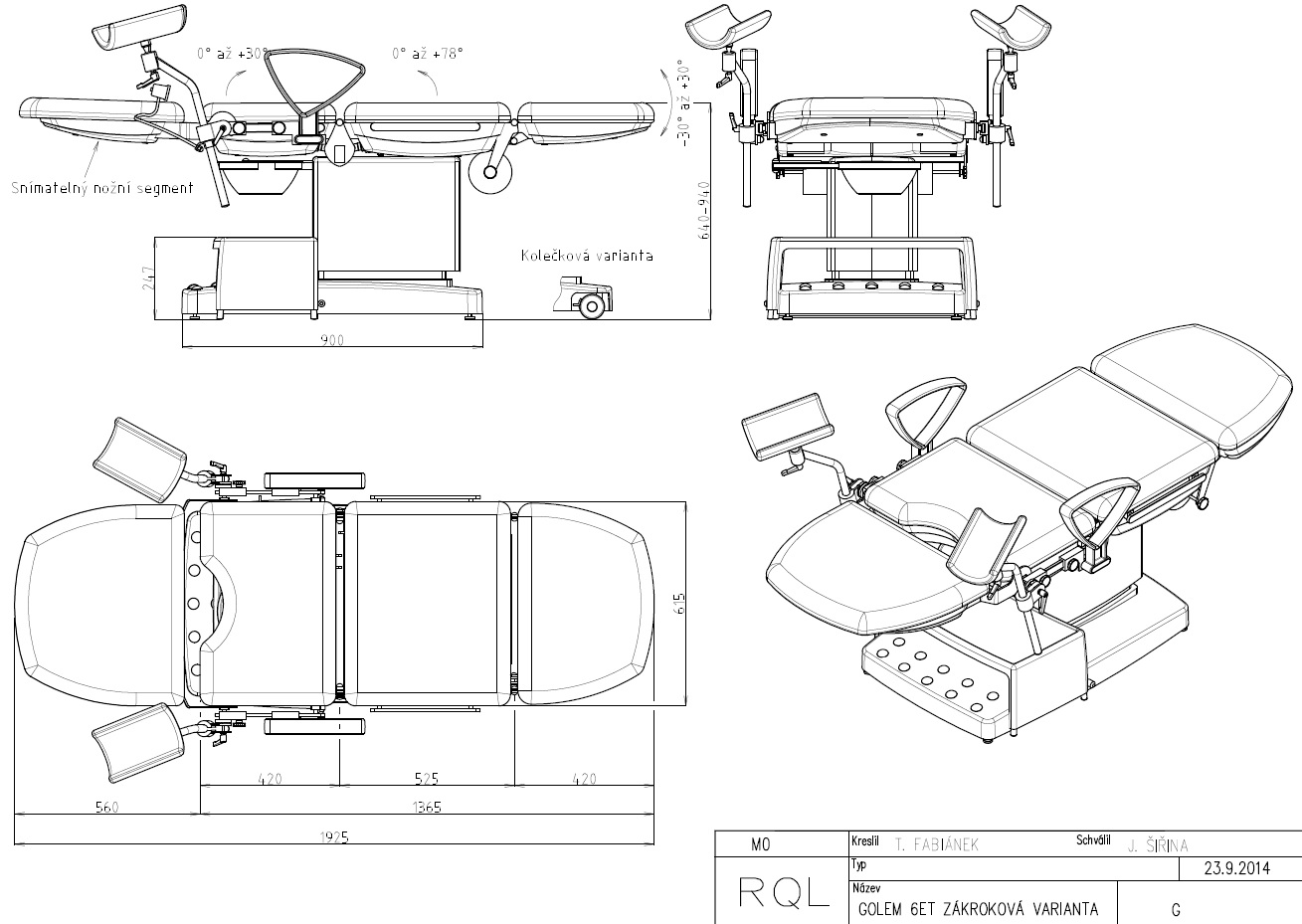

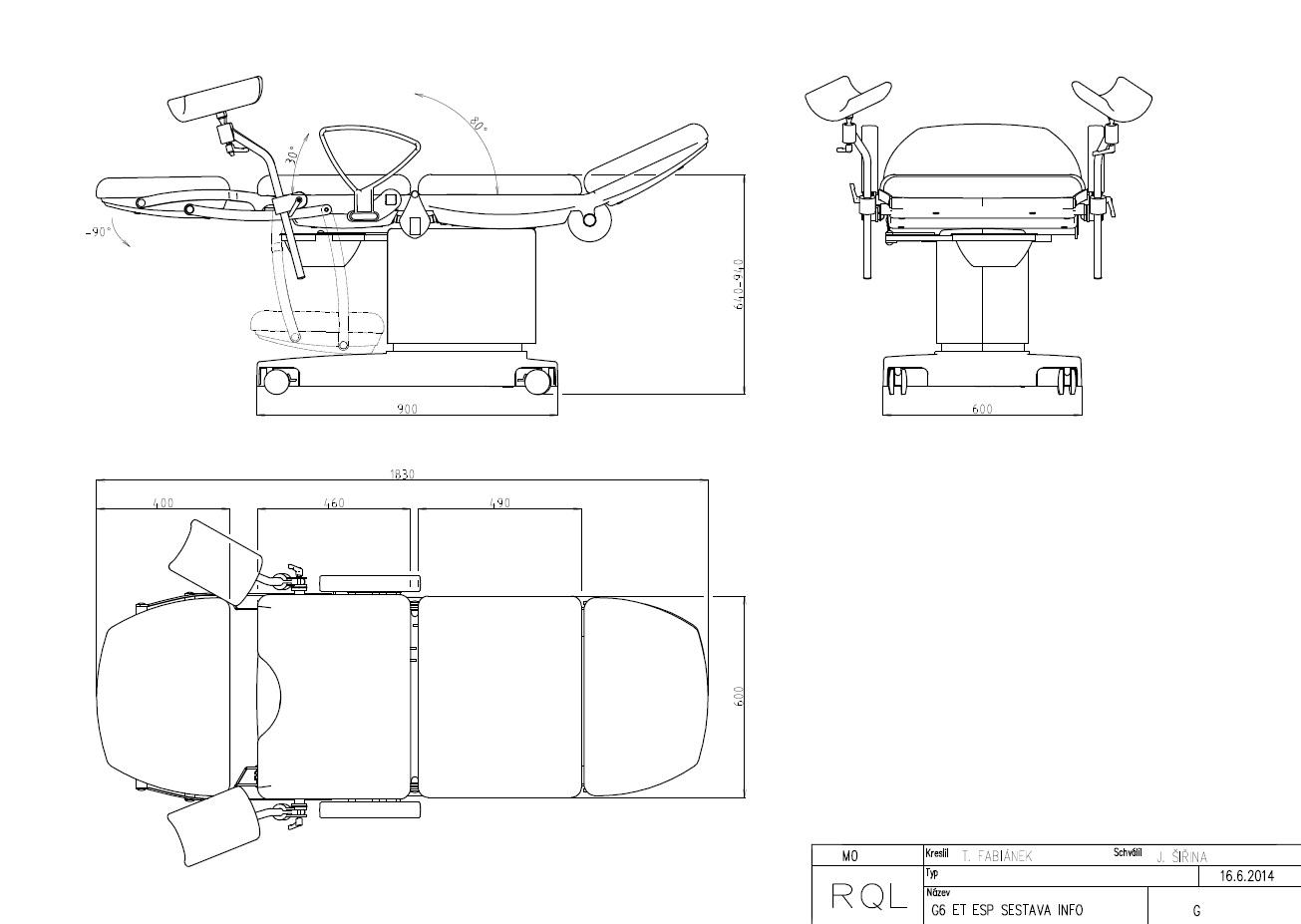

Golem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem 6ET ESP examining gynecological chairGolem6 ET ESP drawingGolem 6 ET drawing (with additional leg segment)



Configure product

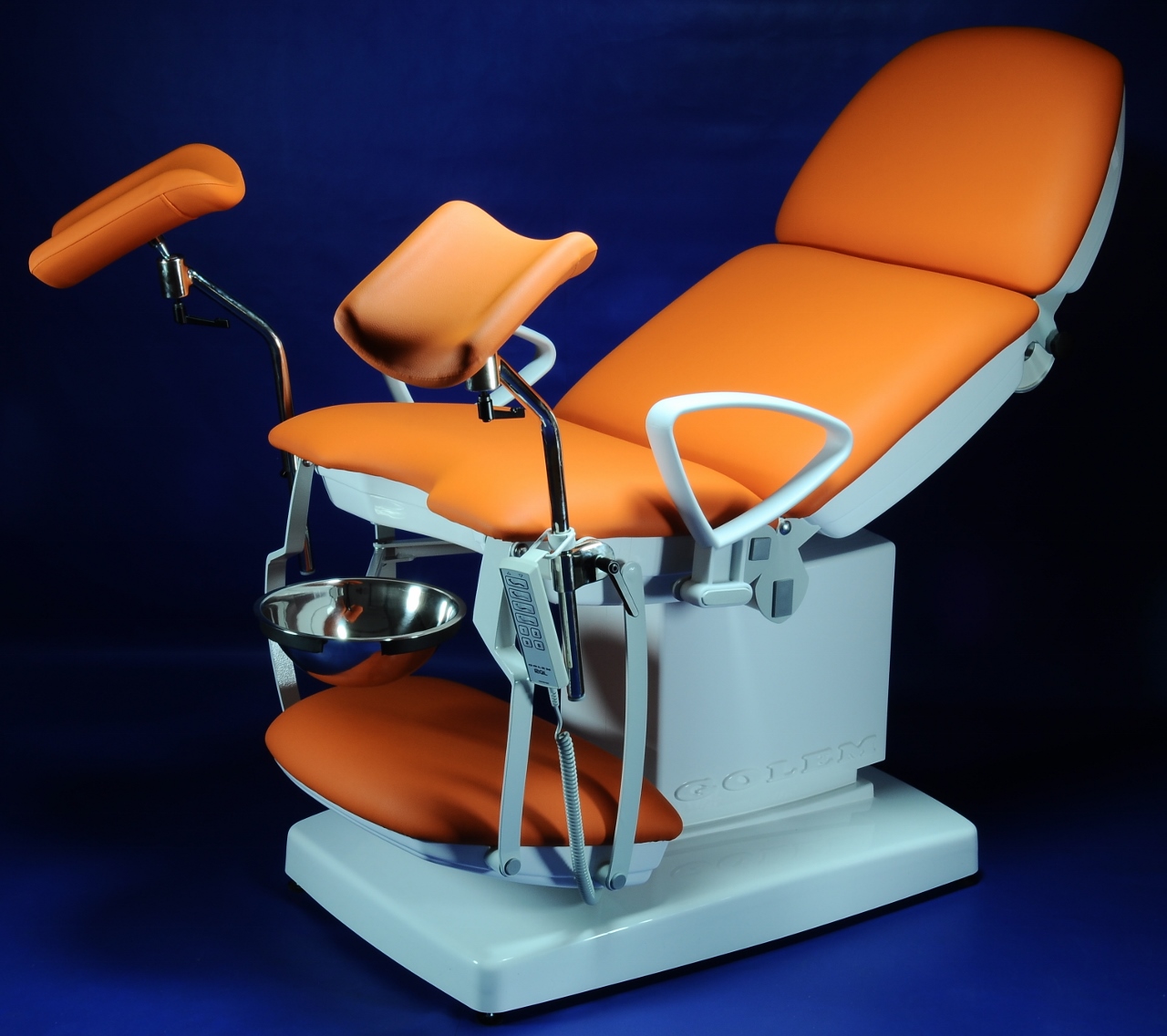

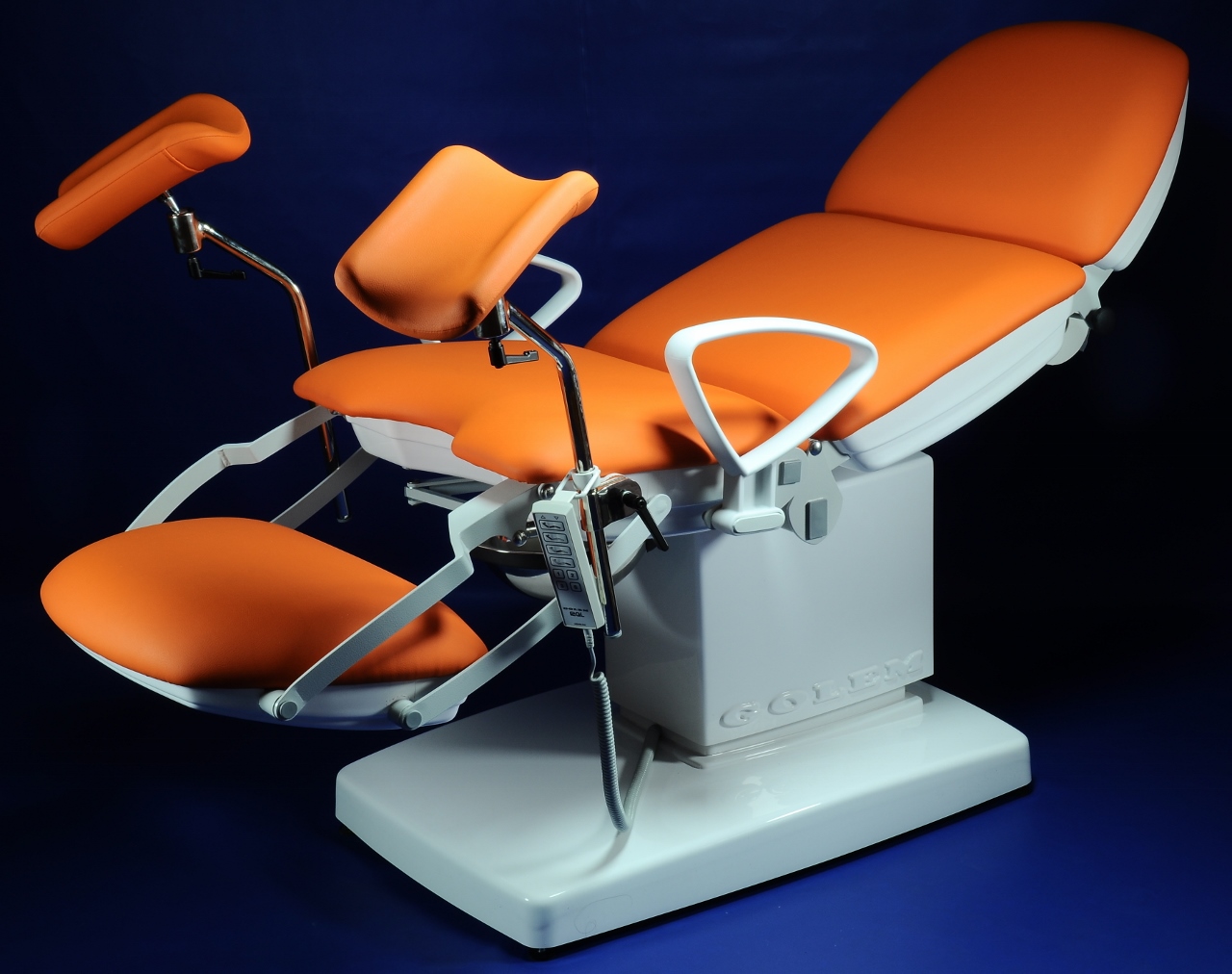

Gynaecological tables of series  GOLEM 6 ESP EXAMINING are designed for ambulatory procedures and common treatment. They are characterized by a modern design with a sophisticated and fully functional concept that meets all your requirements. Full covering of all parts with grey plastic casings ensures very easy maintenance of the table.

The 600 mm wide operating surface is covered with seamless artificial leather in a colour of your choice; it is divided into a seat with an opening and a seat backrest with a lifted head segment. All electric drives are foot pedal-operated and the positions can be changed even if the table is fully loaded. Lengths of the segments: seat 400 mm, backrest 500 mm, head 400 mm, additional legs 500 mm.

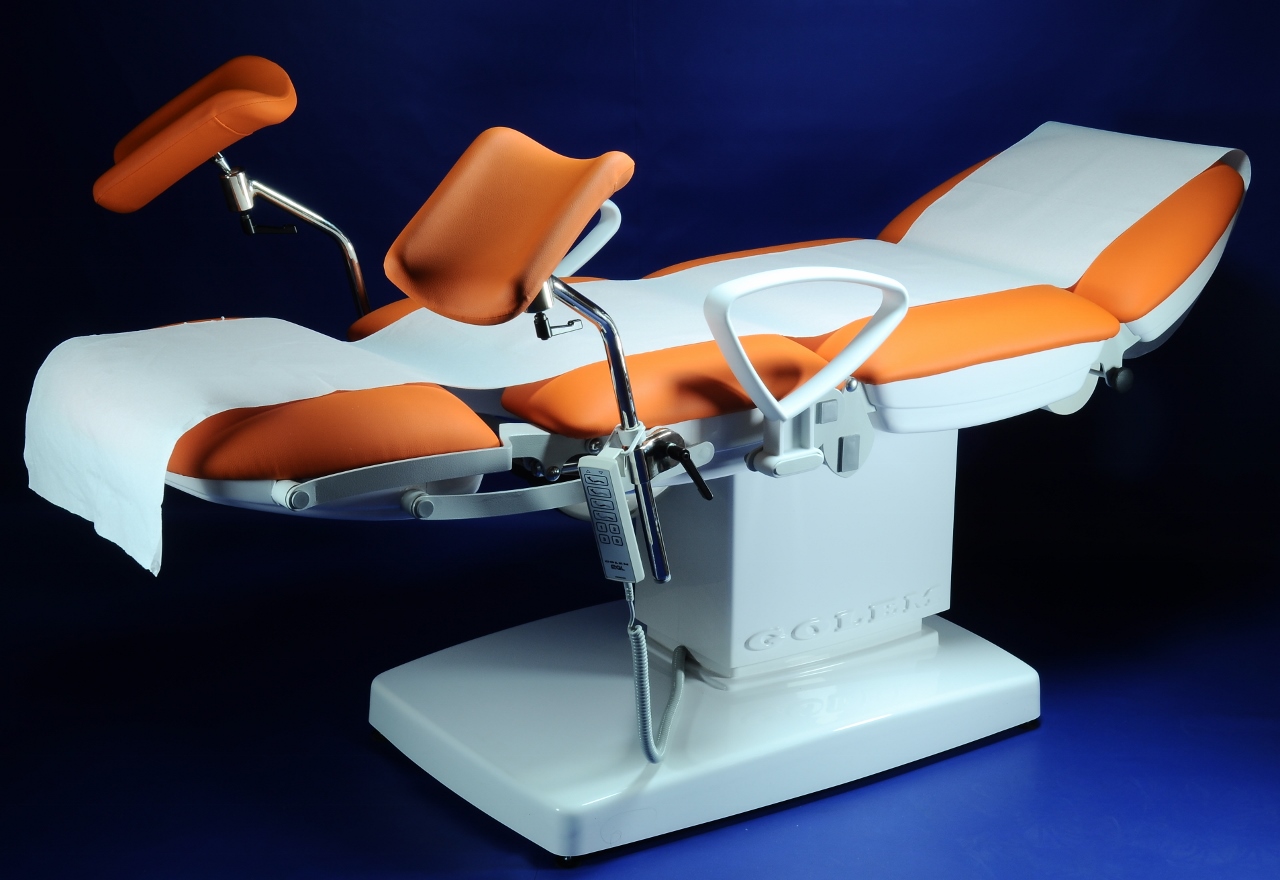

All versions are always fully equipped:polyurethane Goepel leg supports or heel supports(stirups) (depending on your request) with a jointed fixture,foot step with a non-slip finish, stainless bowl, hand rails for the patient, and a paper roll holder to be used for the whole surface, the backrest and the seat, or for the seat only. All elements can be easily adjusted for your and your patient’s comfort.

The weight of the table is 60 -104 kg depending on version; the carrying capacity is 150 kg.

The build-in dimensions of the table are approx. 800 x 1 400 mm.

Each version can be further equipped according to your request.



Brochure GOLEM 6ET ESP examination table for gynaecology and urology (PDF)



Product configurator GOLEM 6ET ESP – EXAMINING gynaecological table

Name Picture ID Select
GOLEM 6 ESP (2 electromotors)

Electric drive adjustable height of 640 - 940 mm, electric drive adjustable leg segment, manually adjustable back tilt of 0°+ 80°, fixed seat.

G 06 20
GOLEM 6E ESP (3 electromotors)

Electric drive adjustable height of 640 - 940 mm, electric drive adjustable leg segment, electric drive adjustable back tilt of 0°+ 80°, fixed seat.

G 06 21

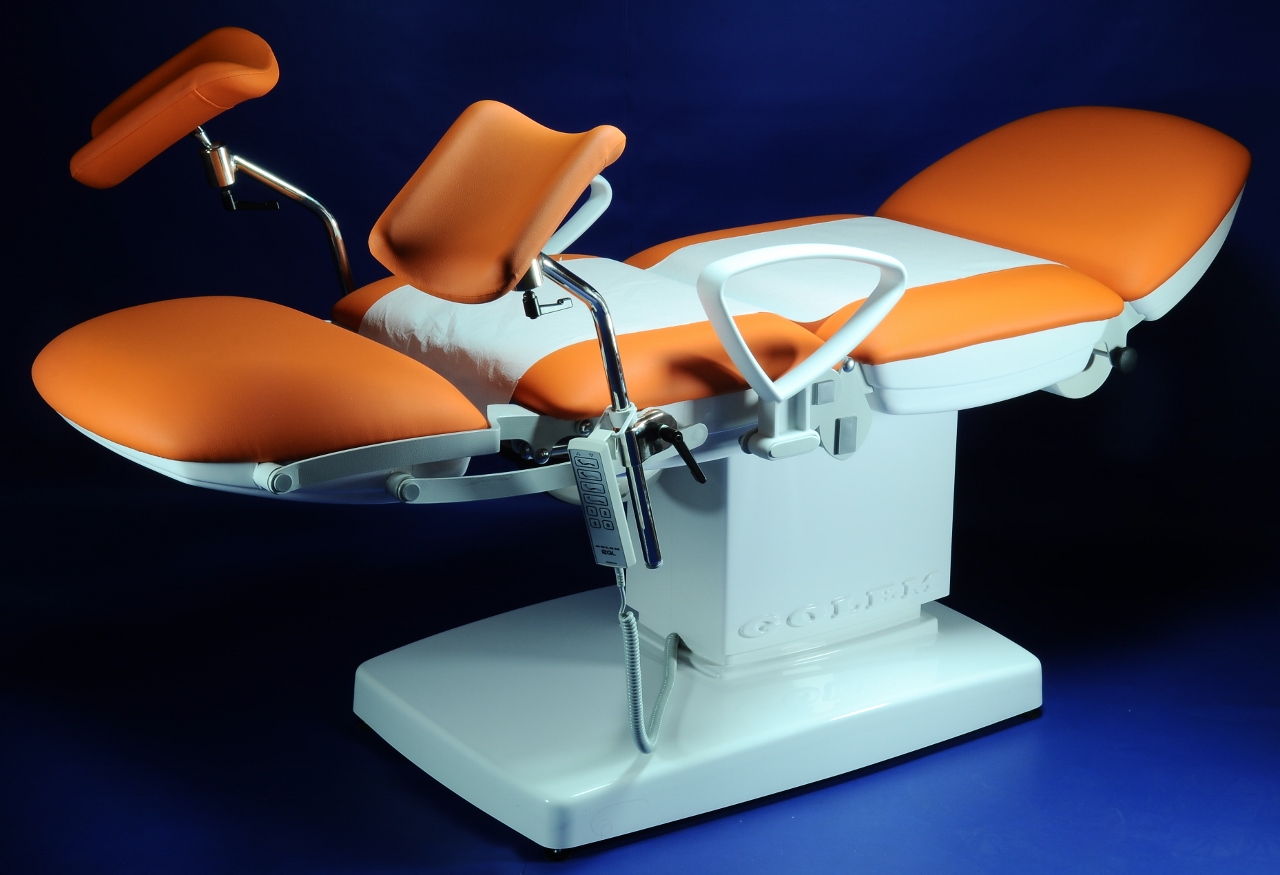

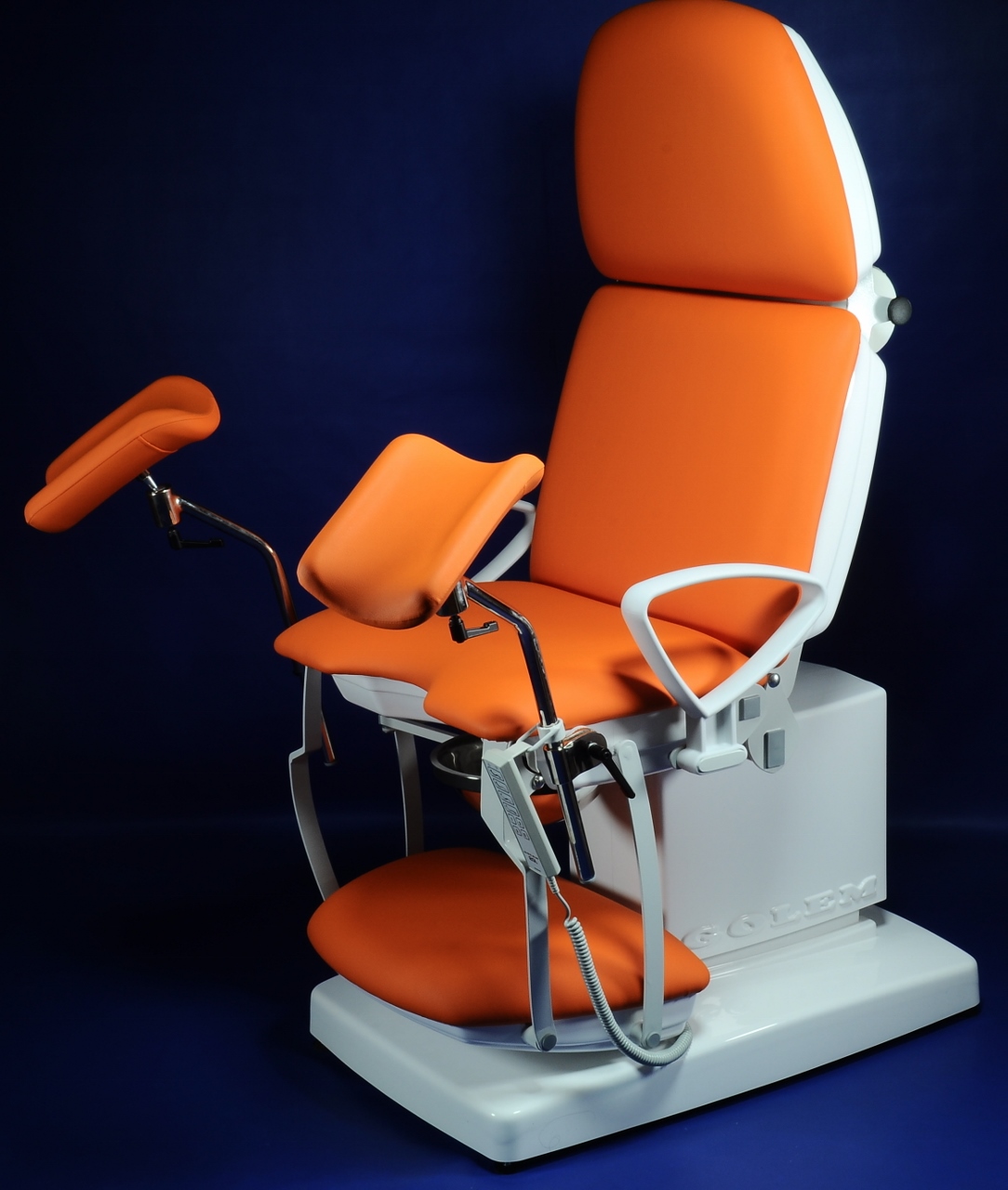

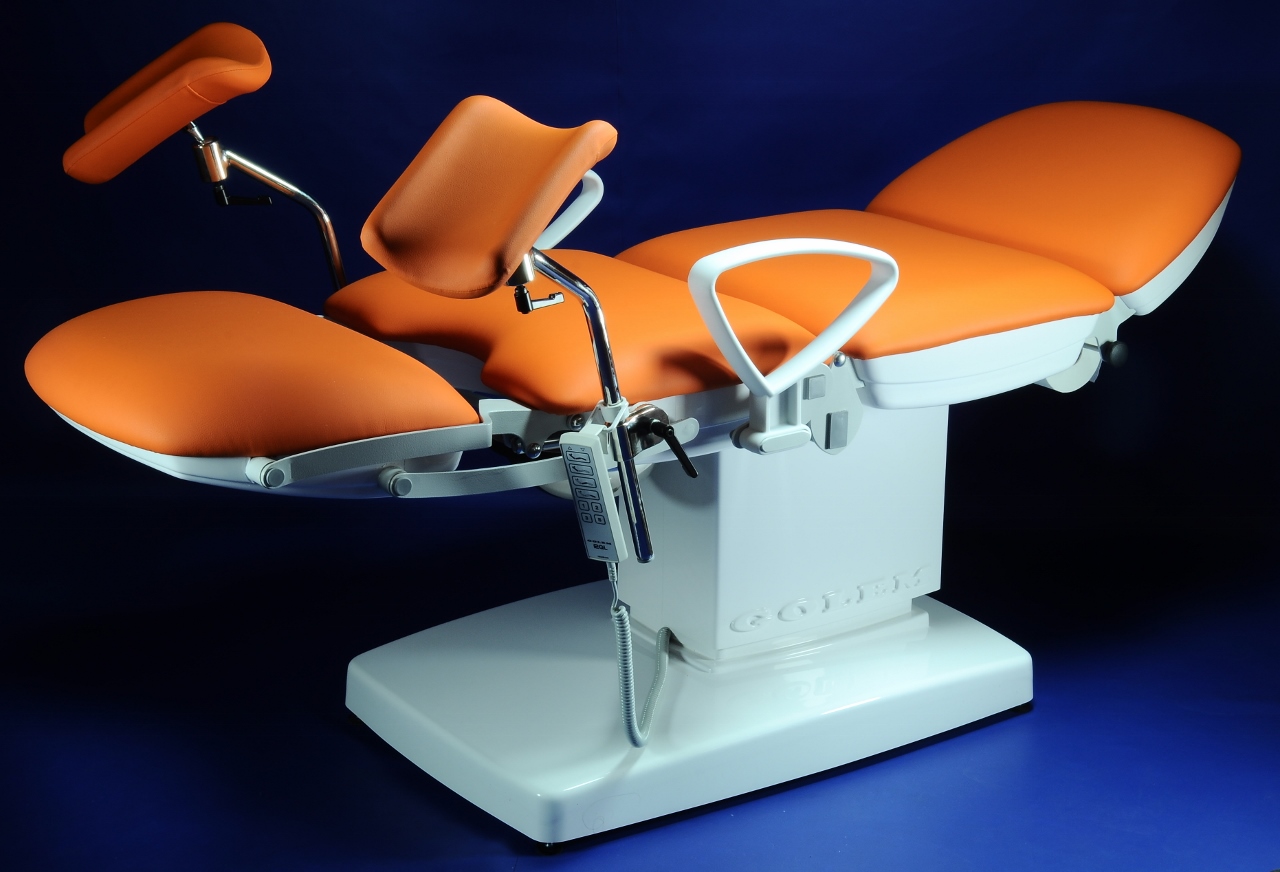

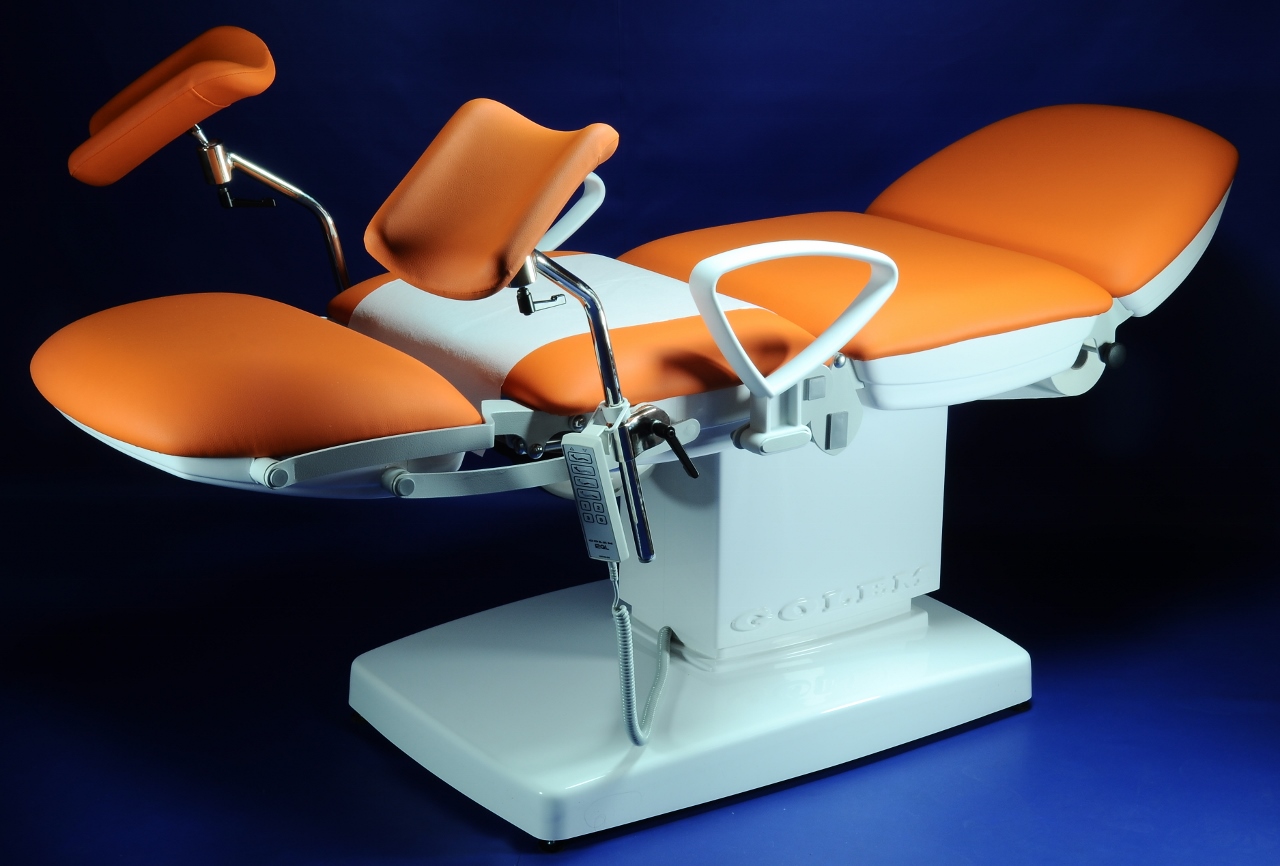

GOLEM 6ET ESP (4 electromotors + 3 memories of operation positions)

Electric drive adjustable height of 640 - 940 mm, electric drive adjustable leg segment, electric drive adjustable back tilt of 0°+ 80°, electric drive adjustable seat (Trendelenburg) tilt of 0°+ 30°. The table is equipped with electronics enabling the user to program 3 operating positions that are automatically set using a respective button. This feature allows for easy switching between the initial and operating positions of the table without time delays.

G 06 22

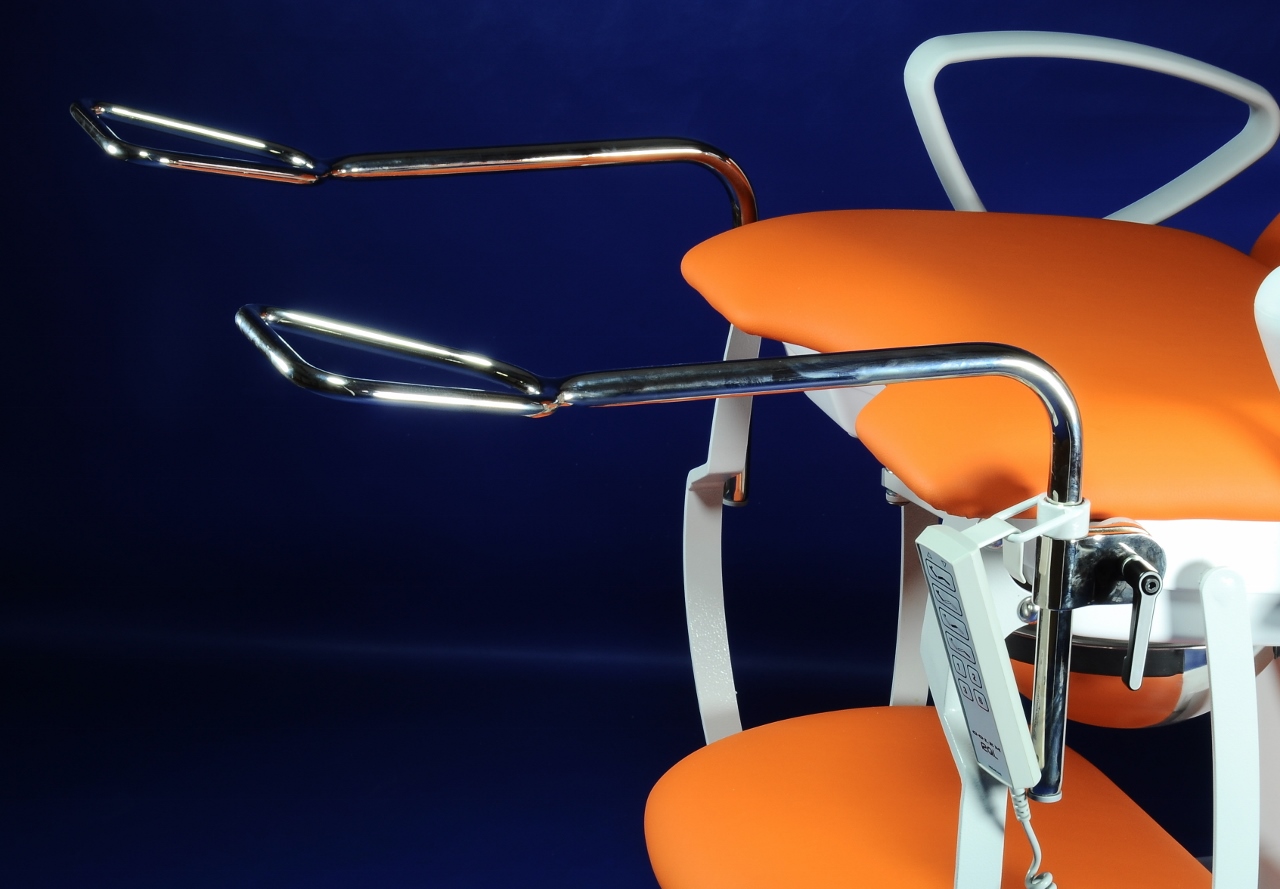

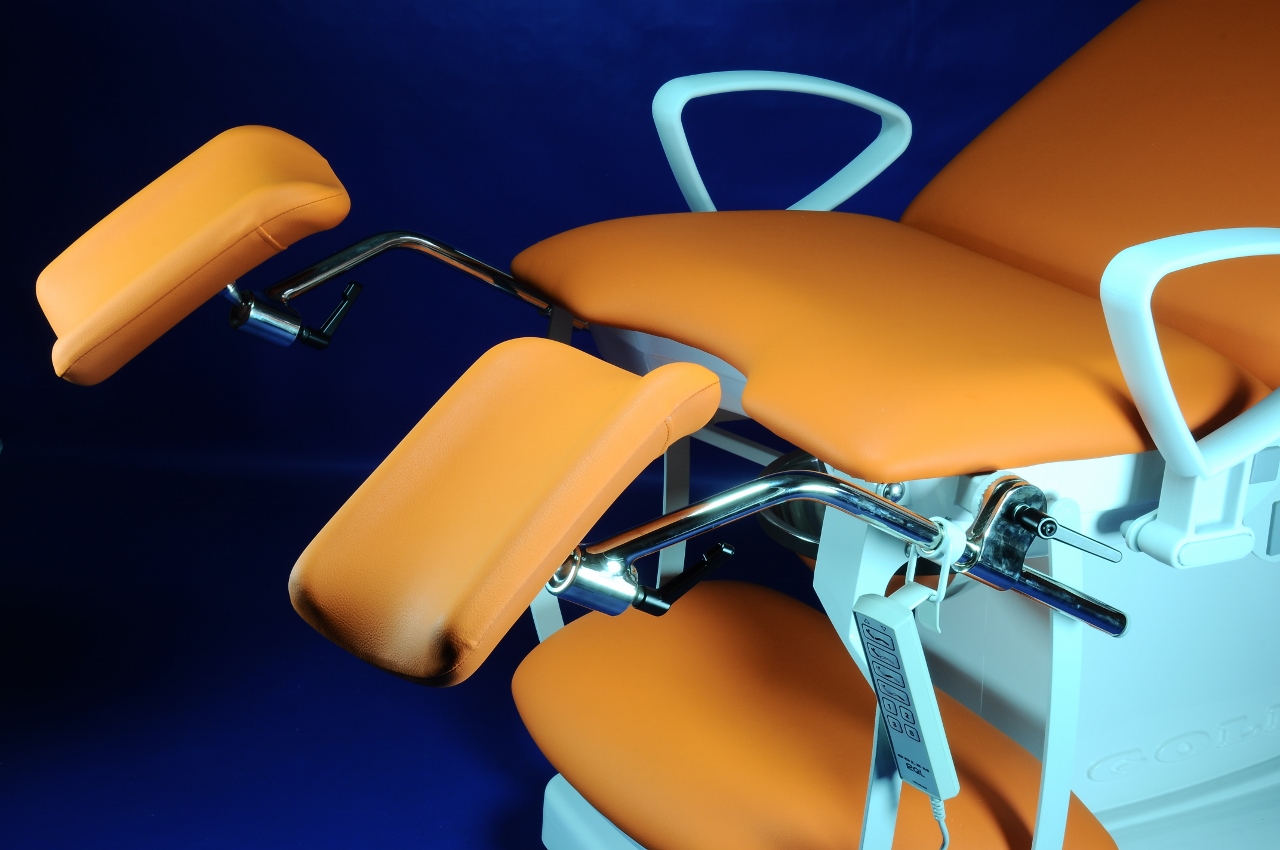

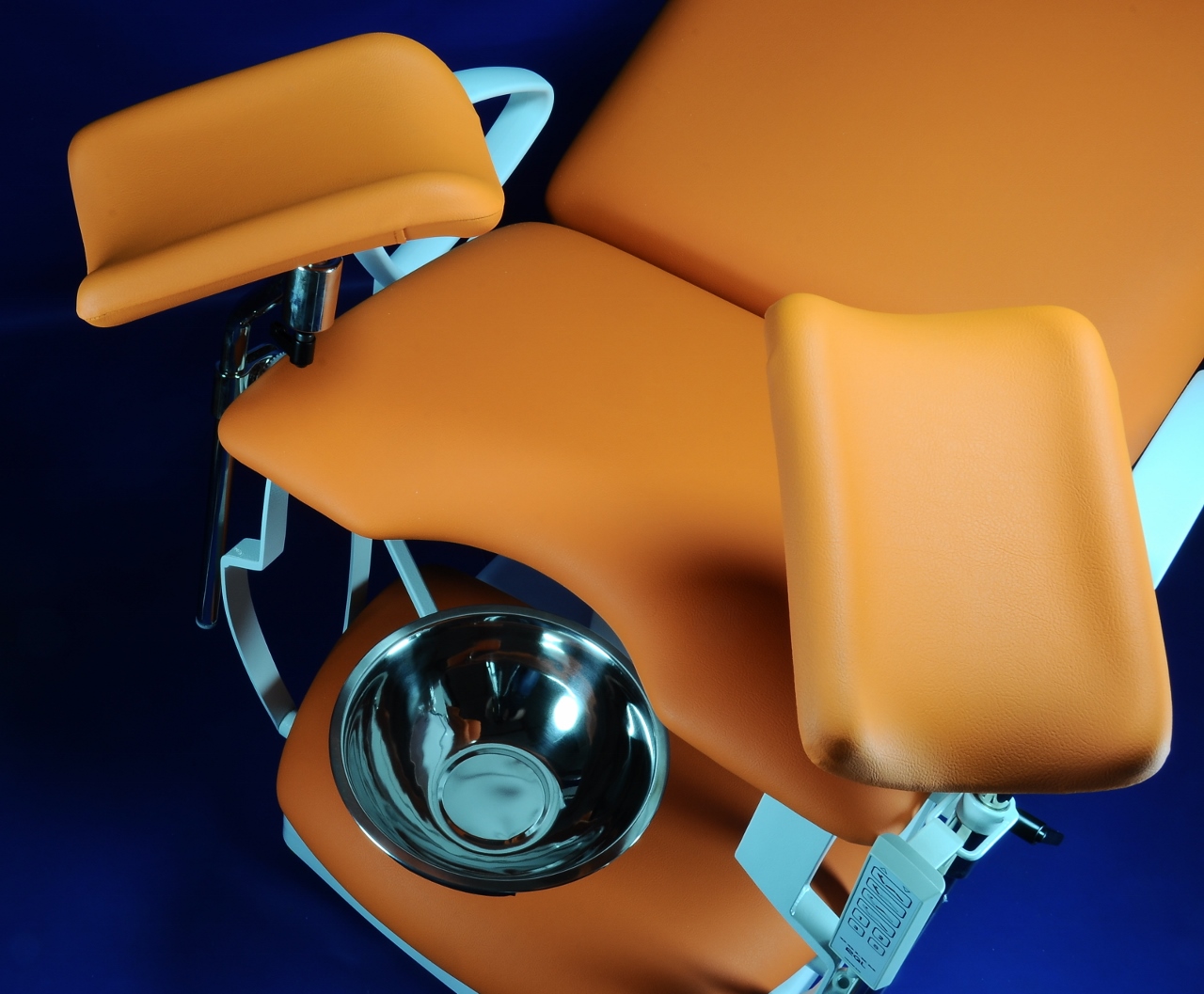

Goeppels leg supports
D 06 01
Heel supports
D 06 02
Stationary with adjustable pegs
D 04 99

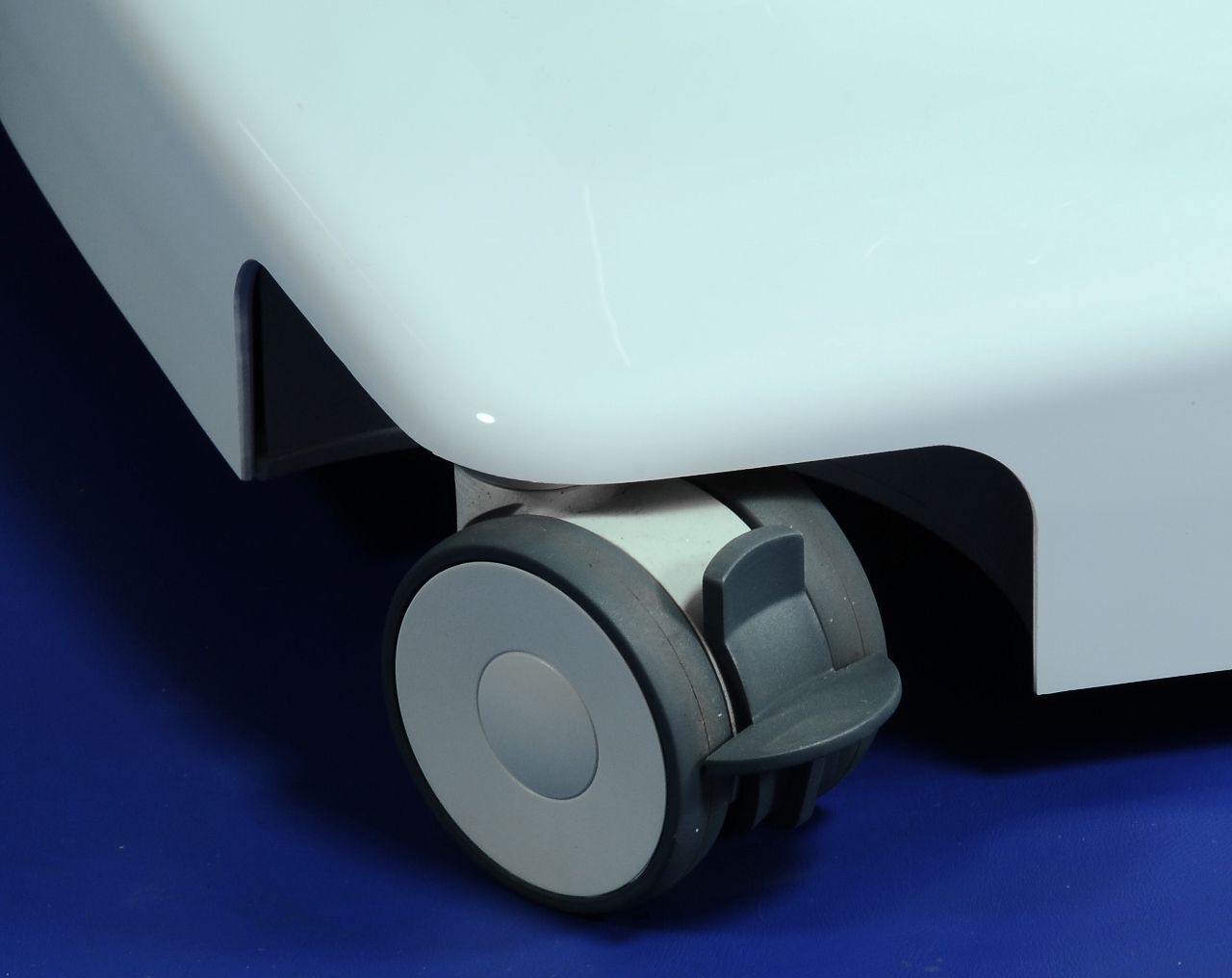

Braked wheels Ø 75 mm
D 06 03
Halogen lamp
D 06 05
Without colposcope holder
Colposcope holder OPTOMIC
D 06 80
Colposcope holder ZEISS
D 06 81
Colposcope holder LEICA
D 06 82
Colposcope holder LEISEGANG
D 06 83

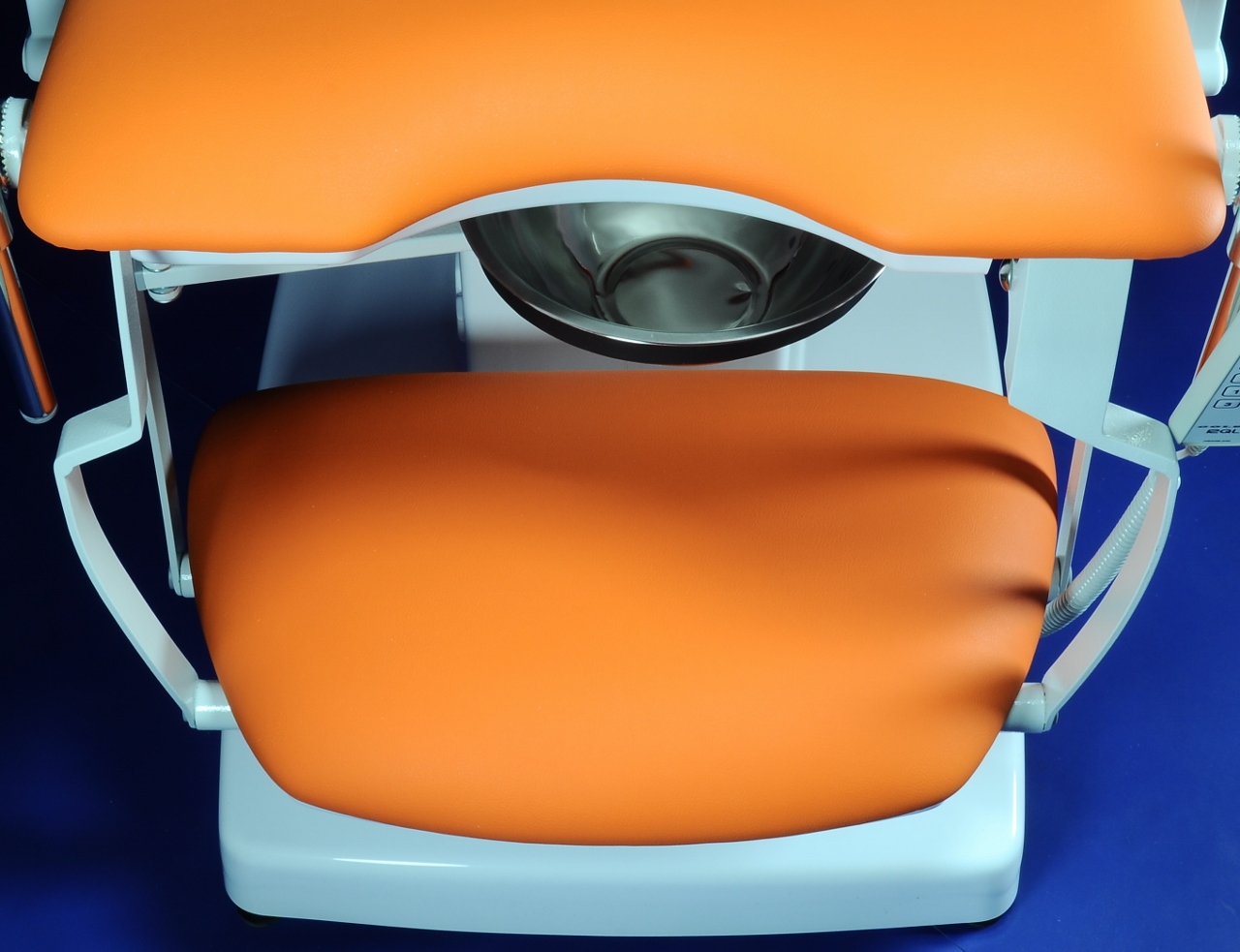

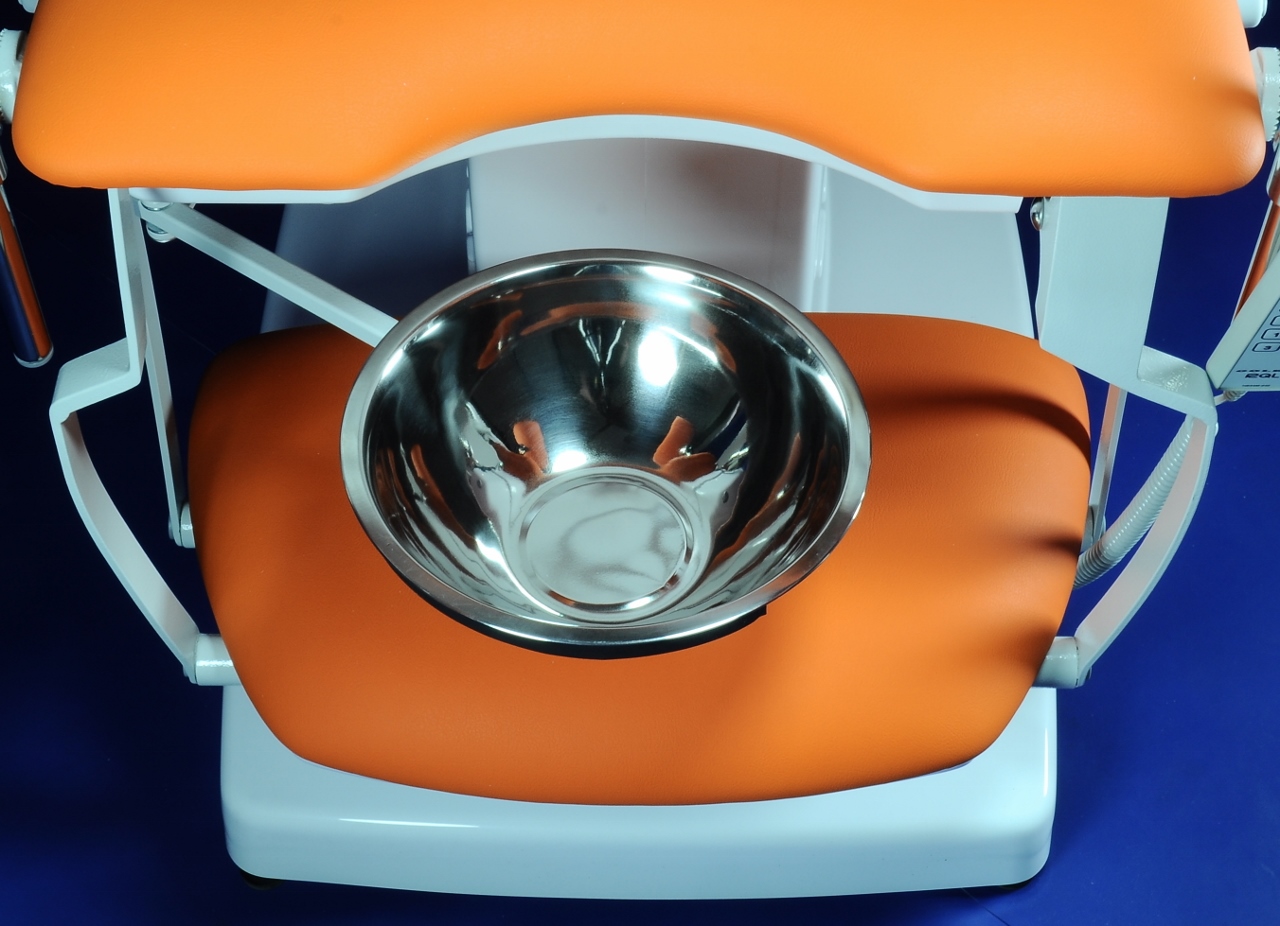

Staniless steel bowl
Stainless steel bowl with outlet and hose
D 06 08

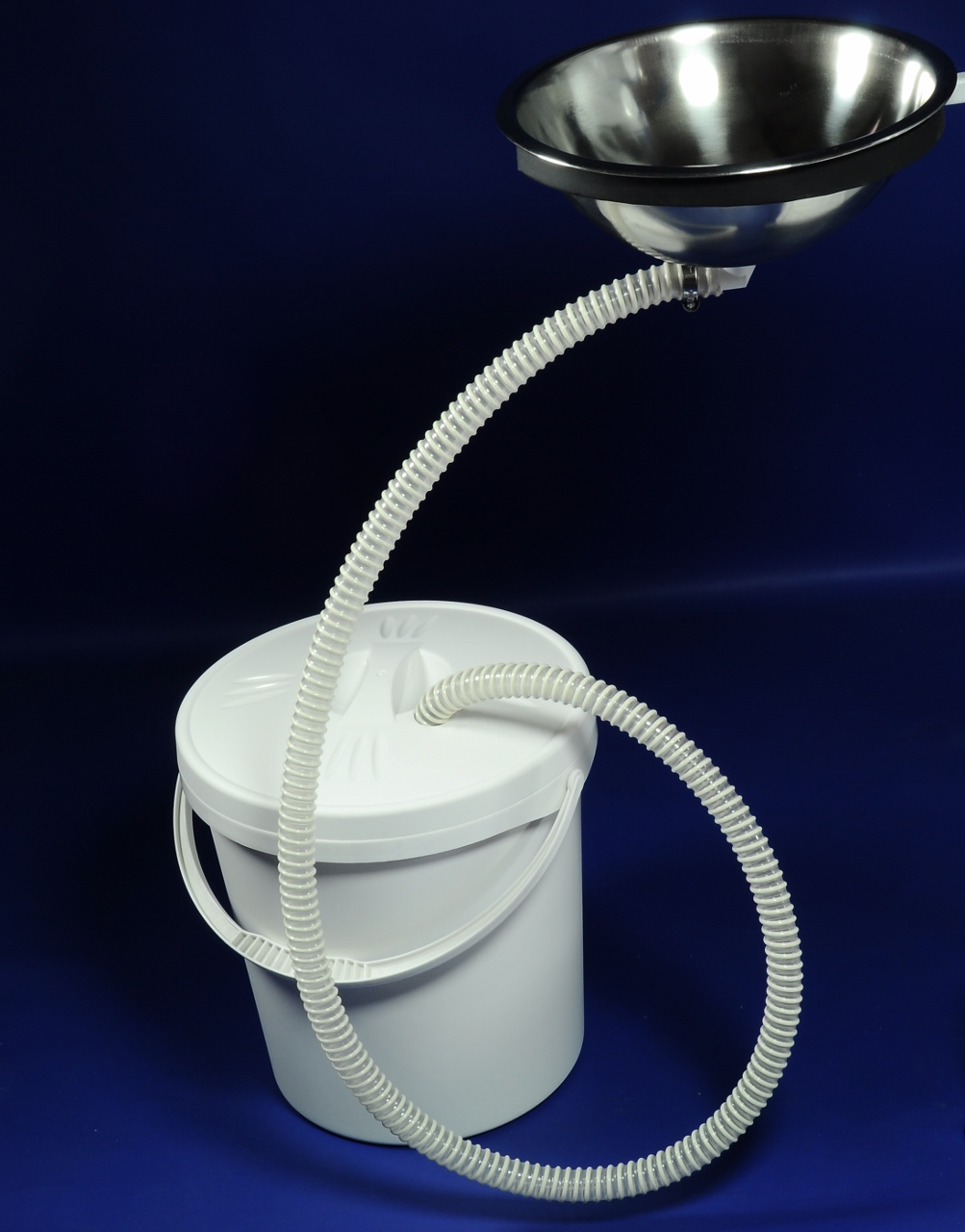

Stainless steel bowl with outlet, hose and container
D 06 09

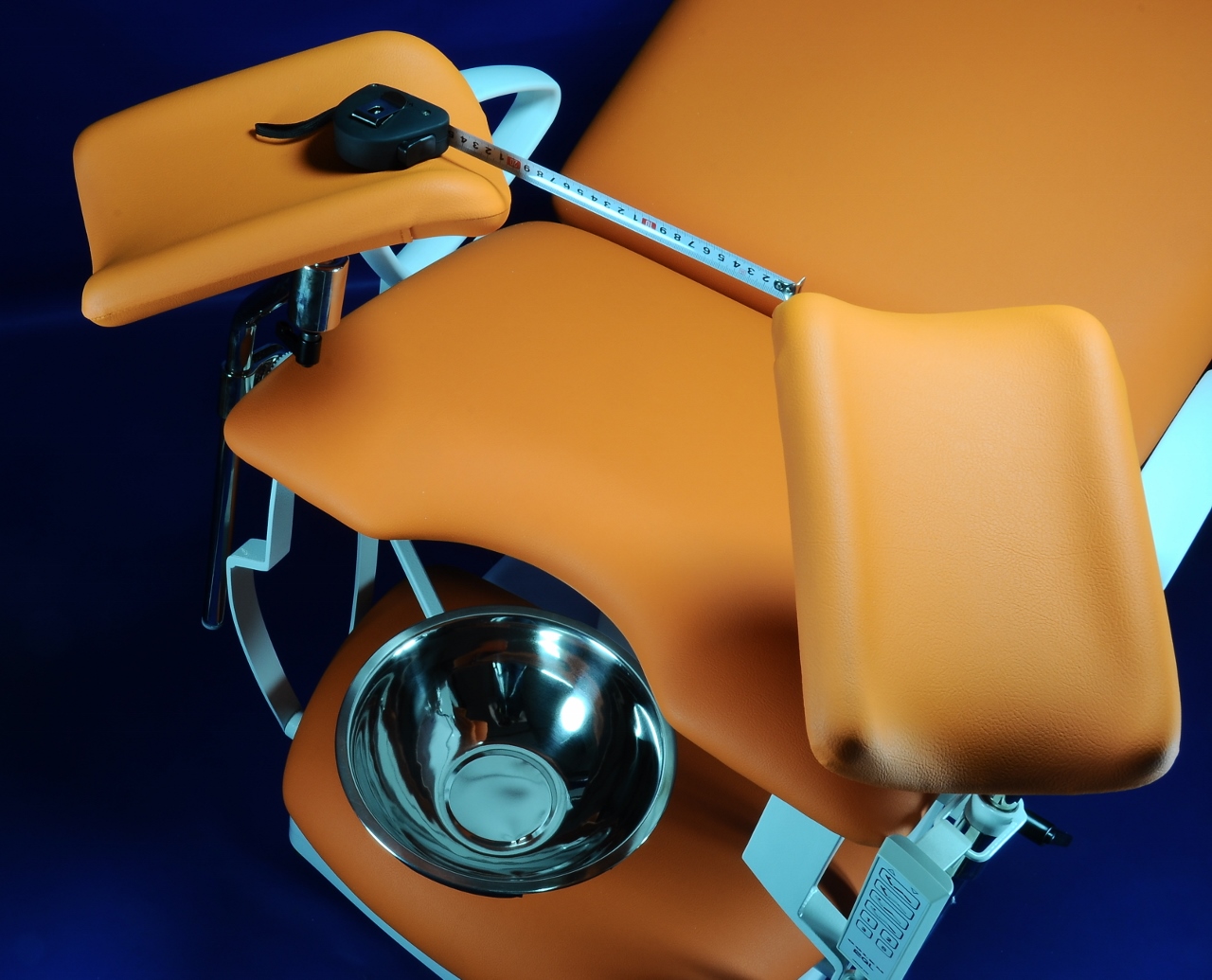

Hand control

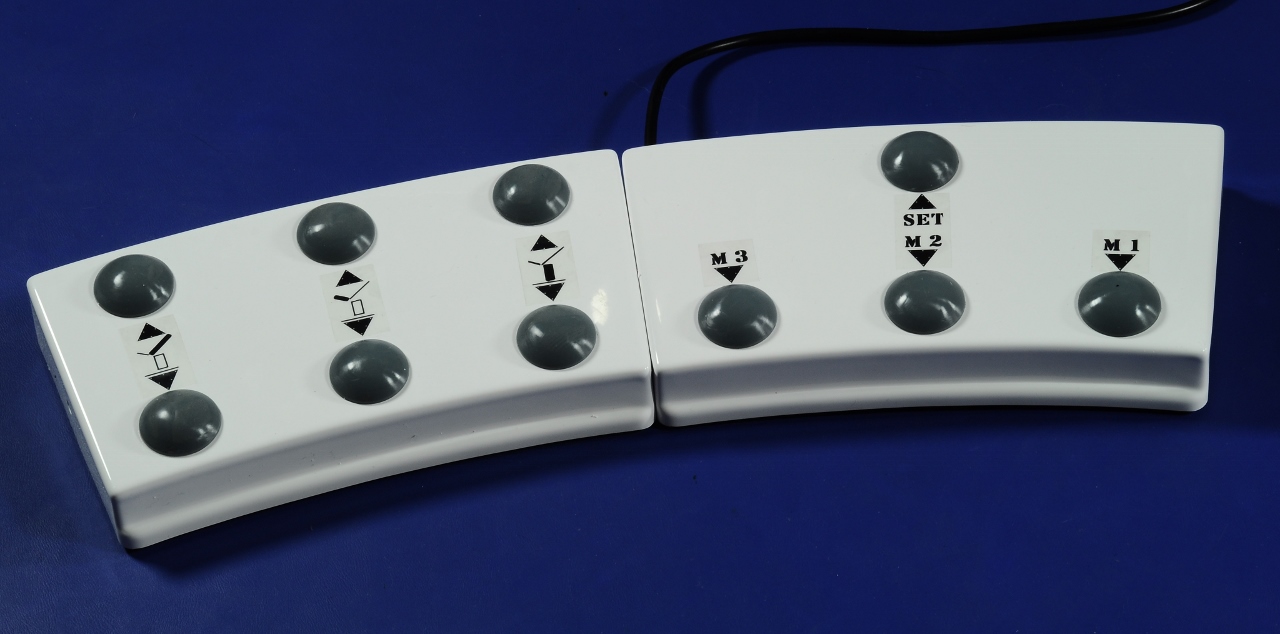

Separate pedal board on cable
D 06 30

Sampler

1B


2C


2D


3F


4A


5B


5C


6D


8D


9B


9C


11H


11K


12D


12E


12F


13A


2A


9D


9E


Sampler S1

S1


S2


S3


S4


S5


S6


S7


S8



(download PDF version of your configuration)

Basic information











Billing address










Delivery address












Basic information







Contact person











Billing address










Delivery address











* Required fields
Delivery time is 6 weeks, please contact your distributor for official offer include all details.
