Golem 4S – universal treatment table

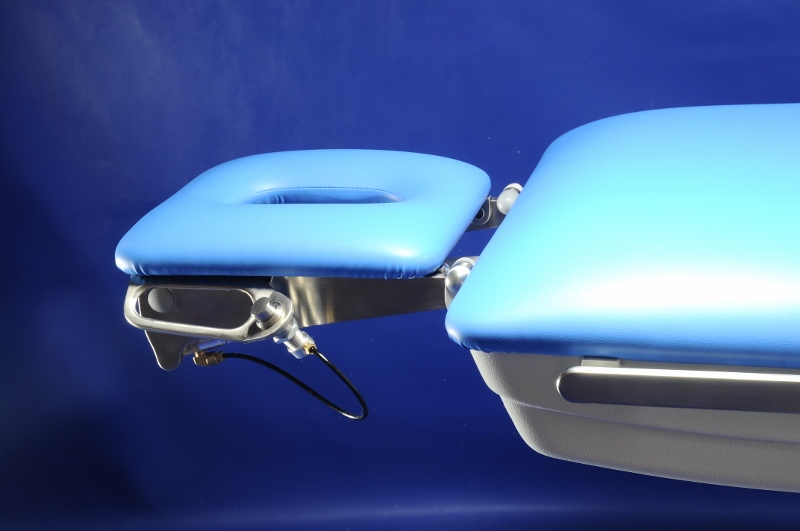

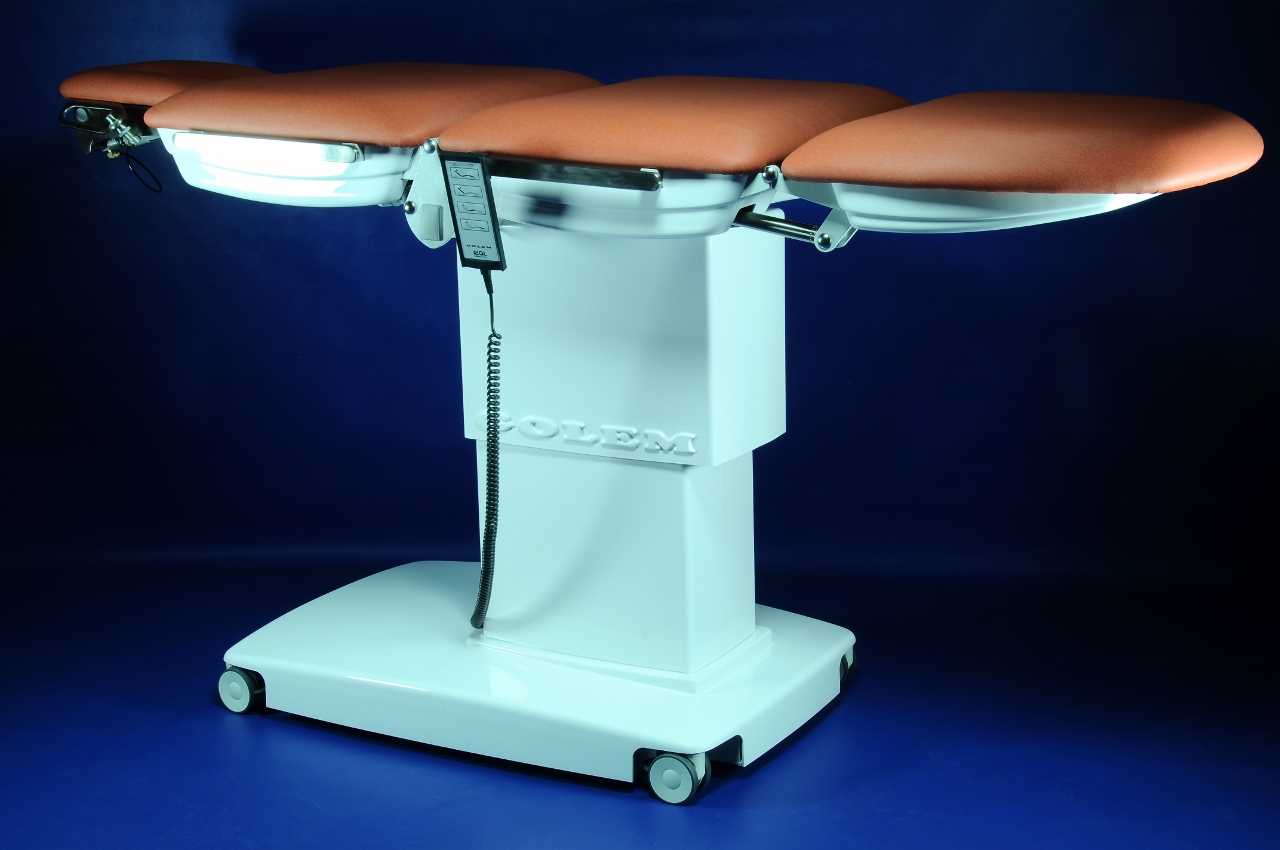

Golem 4S (G 04 03) + Hand holder (D 06 12) + Infusion holder (D 06 13) + Mouthpiece holder (D 06 14) + Fastening strap (D 06 15) (1280x850)DSC_3440 (1280x802)Golem 4S (G 04 03) + Braked wheels (D 04 01) + EUROrails around seat and back (D 04 09)+(D 04 10) (1280x836)Golem 4S (G 04 03) + Braked wheels (D 04 01) + EUROrails around seat and back (D 04 09)+(D 04 10) (2) (1038x1280)Golem 4S +removable polyurethane Goepel leg supports with a jointed fixture (D04 11) (1280x1199)Golem 4S +removable polyurethane Goepel leg supports with a jointed fixture (D04 11) + stainless bowl (D 04 08) (1280x1213)extra surgery head segment IIHead segment from operation tableHead segment from operation tableHead segment from operation tableHead segment from operation tableHead segment from operation table + EXTRA big hand holderHead segment from operation table + HandrailsBraked wheels 75mmHead segment from operation tableHead segment from operation tableHead segment from operation tableHead segment from operation tableHead segment from operation tableHead segment from operation tableHead segment from operation table + EXTRA hand holders on EUROrailsHead holder for eye surgeryHead holder for eye surgeryHead holder for eye surgeryHead holder for eye surgeryGolem 4S (3)gastro_salek_2Golem 4S
Configure product

Medical treatment tables are designed for the performing of procedures in all medical areas. You can select a version satisfying all your specific requirements for your and your patient’s optimal position. The number of segments and the method of their adjusting depend purely on your choice. According to your request, the table can be equipped with EUROrails for the fastening of various accessories. Functionality and comfort for you and your patient are always in the first place.

A high level of operator and patient safety and operating hygiene is ensured by the covering of the bottom frame and moving mechanism of the table with washable plastic casings.

The GOLEM 4S table has maximum utilization for all patients’ positions – lying, sitting, for procedures in the area of head and neck, for cosmetic procedures on the body and limbs, or eventually for the gynaecological position.



Technical parametres

The 600 mm wide operating surface is covered with seamless artificial leather in a colour of your choice; it is divided into a leg segment, a seat, and a backrest with a head segment. All electric drives are operated manually and the positions can be changed even if the table is fully loaded.

The basic version is stationary, it has a paper roll holder under the head, and it is ready for the installation of further elements you request and need for your work (EUROrails and other elements must be specified separately).

Electric drive adjustable height of 640 – 940 mm, manually adjustable head segment tilt of +- 30°, manually adjustable leg segment tilt of 0° to – 85°, fixed seat with a slight backward incline.

The build-in dimensions of the table are approx. 600 x 1 900 mm.

The weight of the table is 104 kg, the carrying capacity is 150 kg.



Brochure GOLEM 4S medical treatment table (PDF)

Product configurator Golem 4S – universal treatment table

Name Picture ID Select
GOLEM 4S

Electric drive adjustable height of 640 - 940 mm, manually adjustable head segment tilt of +- 30°, manually adjustable leg segment tilt of 0° to - 85°, fixed seat with a slight backward incline.

G 04 03
Lower frame with adjustable pegs
D 04 99

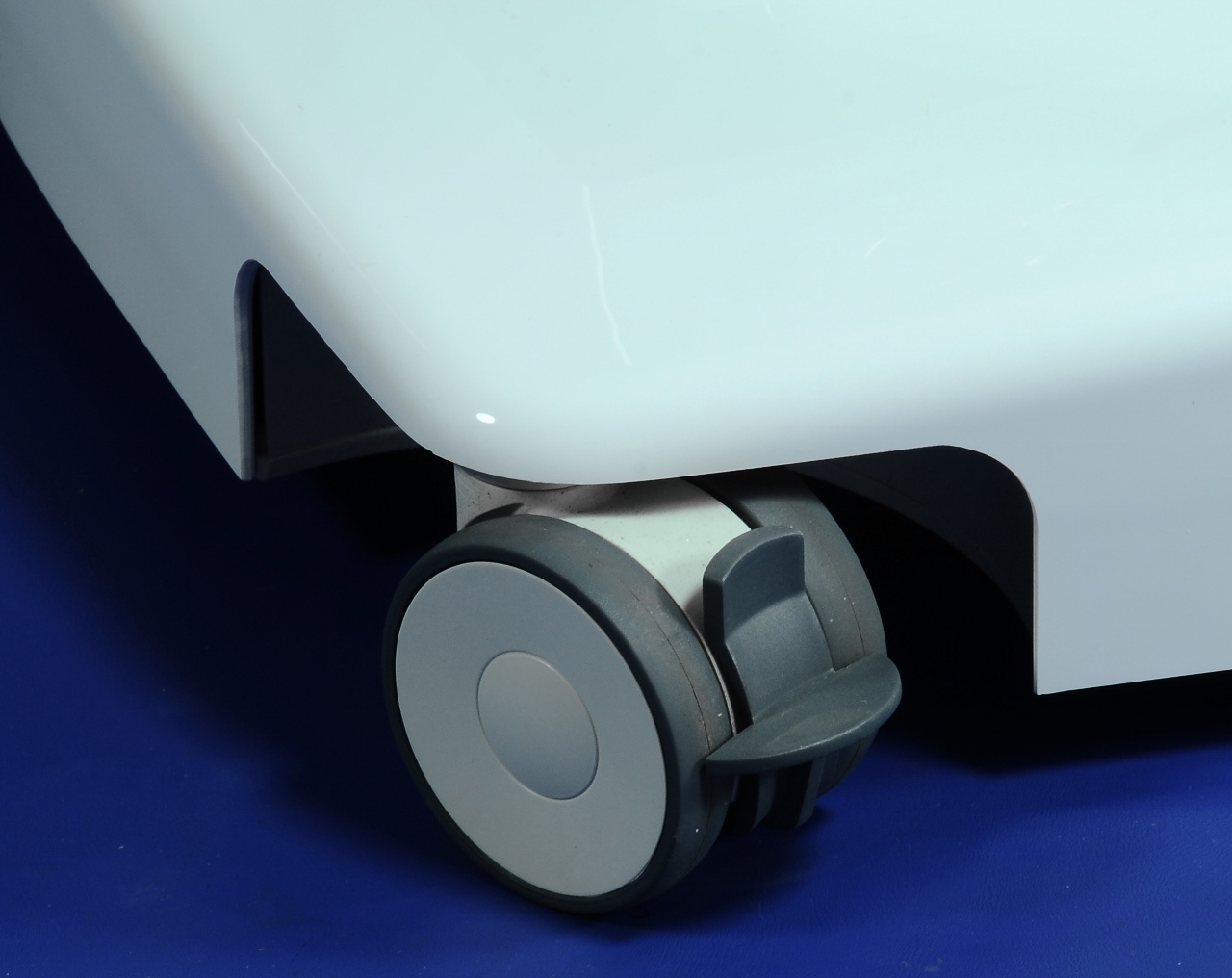

Braked wheels Ø 75 mm
D 04 01
Without Trendelenburg adjustable
D 04 98
Electric drive adjustable Trendelenburg 0° +30°
D 04 02
Without EUROrails on back segment
D 04 20
EUROrails on back segment (pair)
D 04 10
Hand holder during infusion
D 06 12

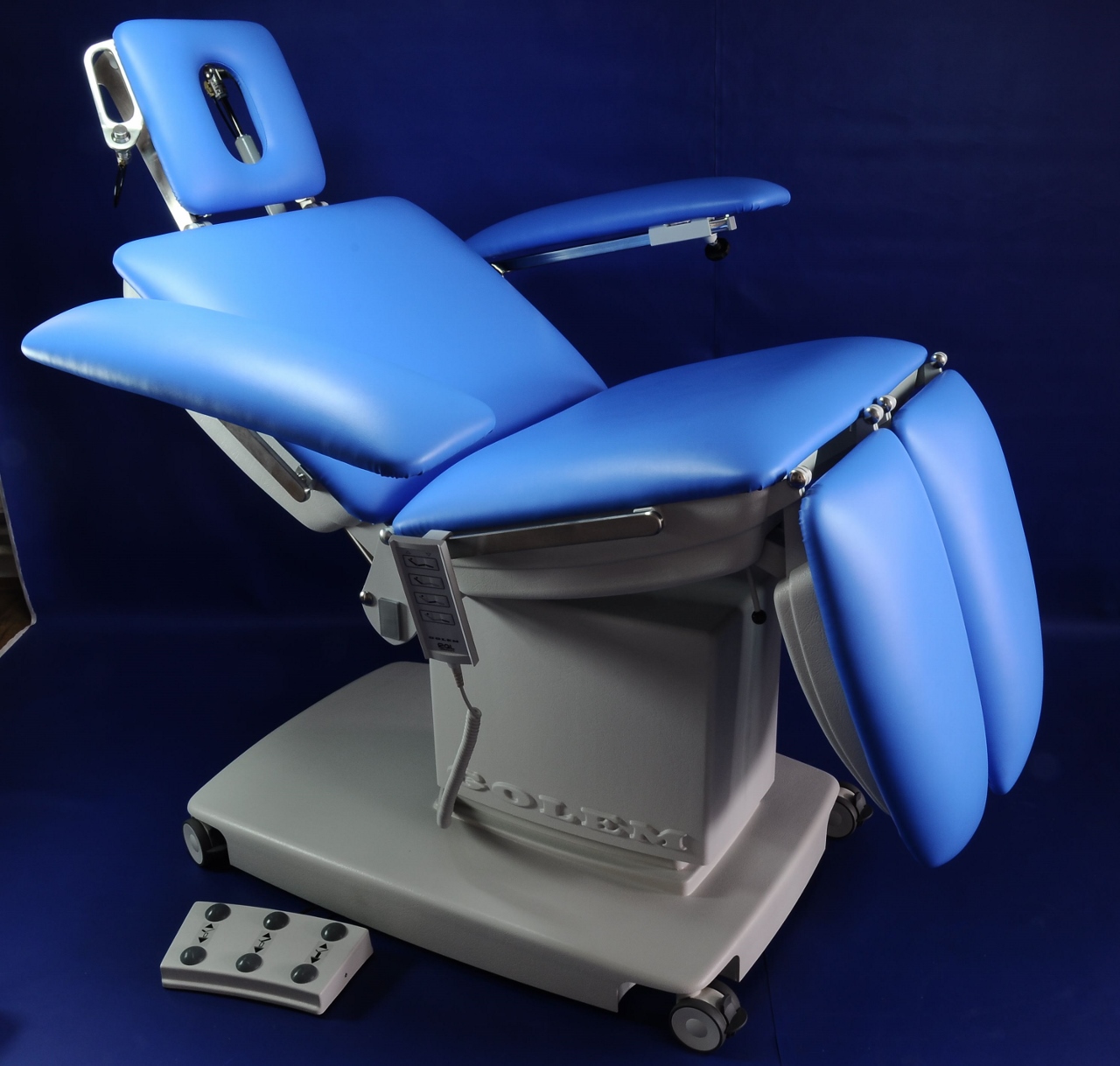

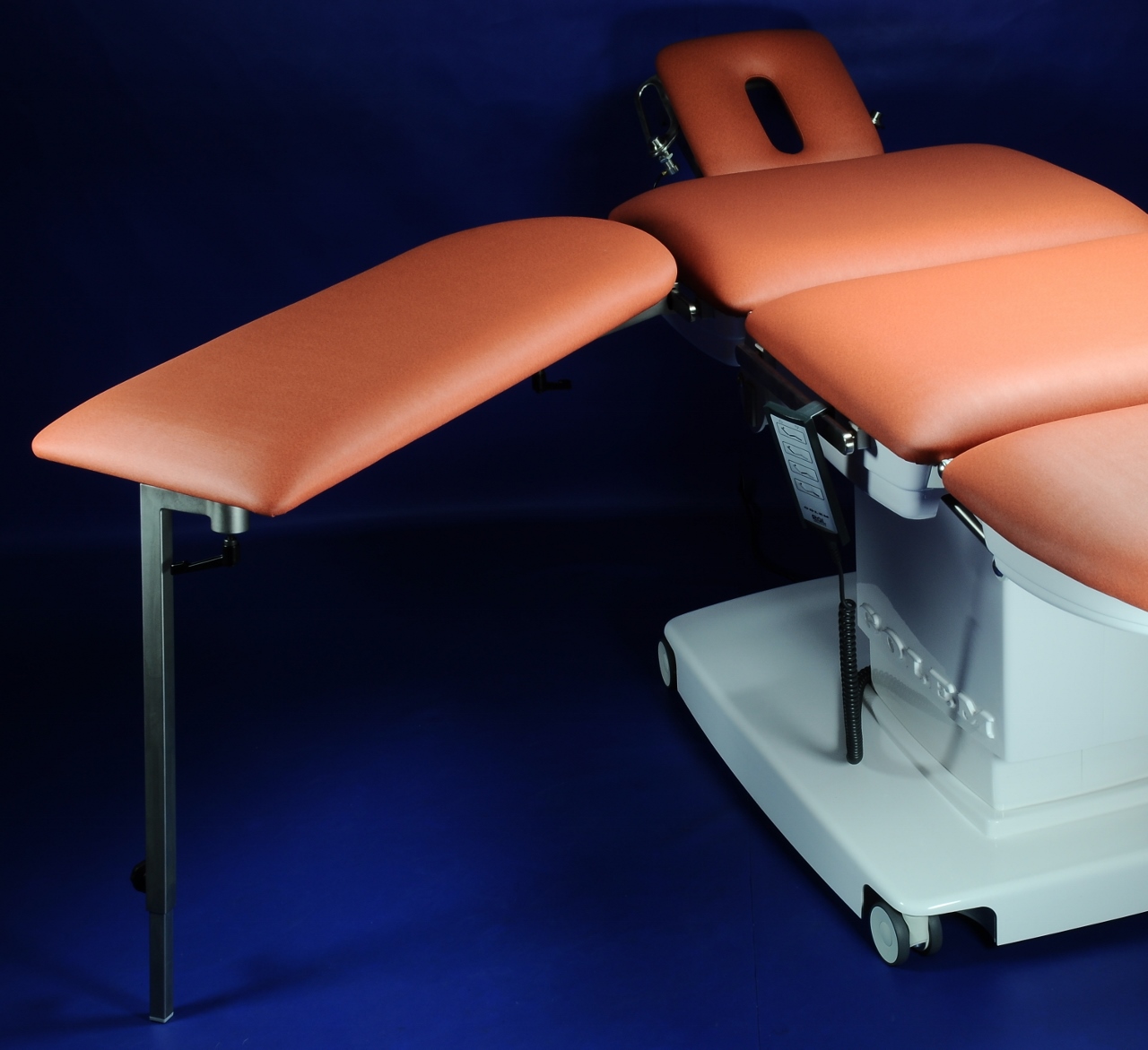

Big hand support with floor column
D 16 16
Infusion holder
D 06 13
Mouthpiece holder
D 06 14
Fastening strap
D 06 14
Without EUROrails on seat segment
D 04 95

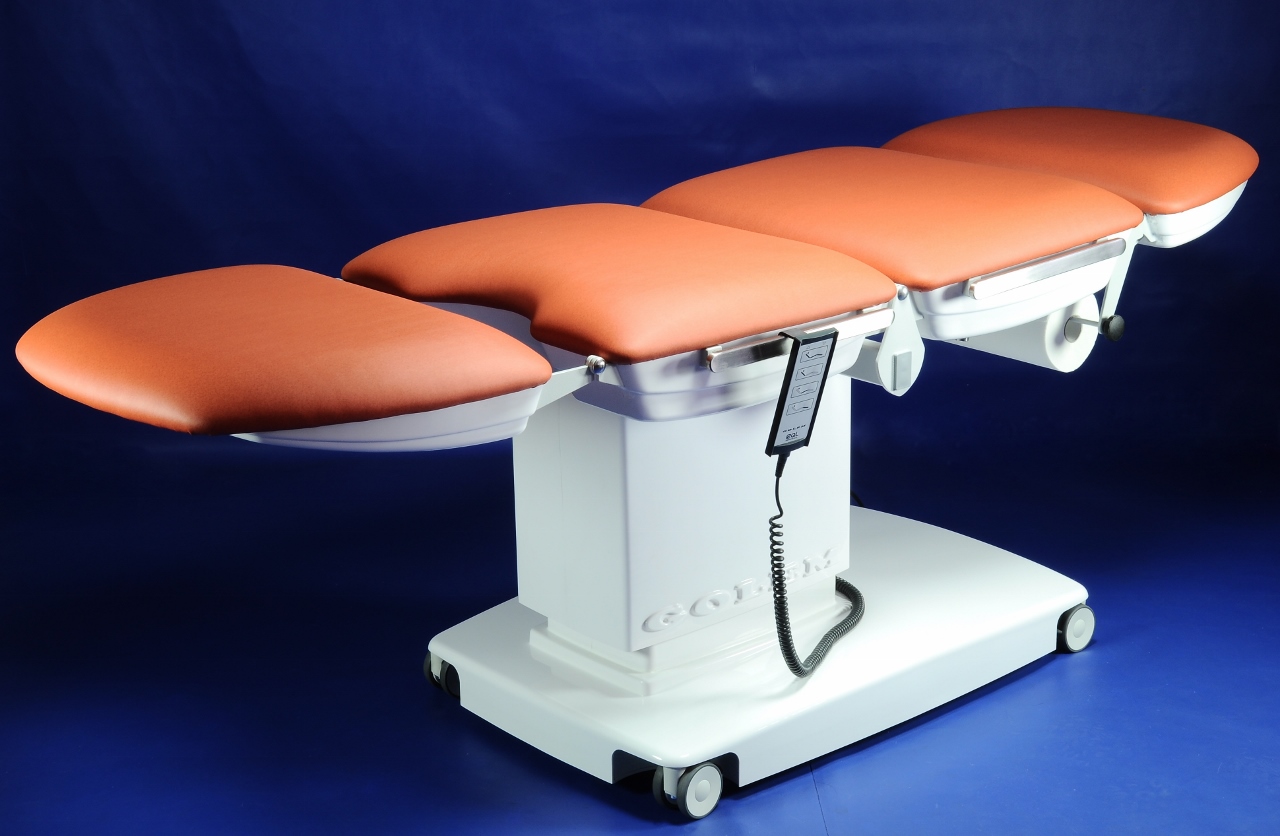

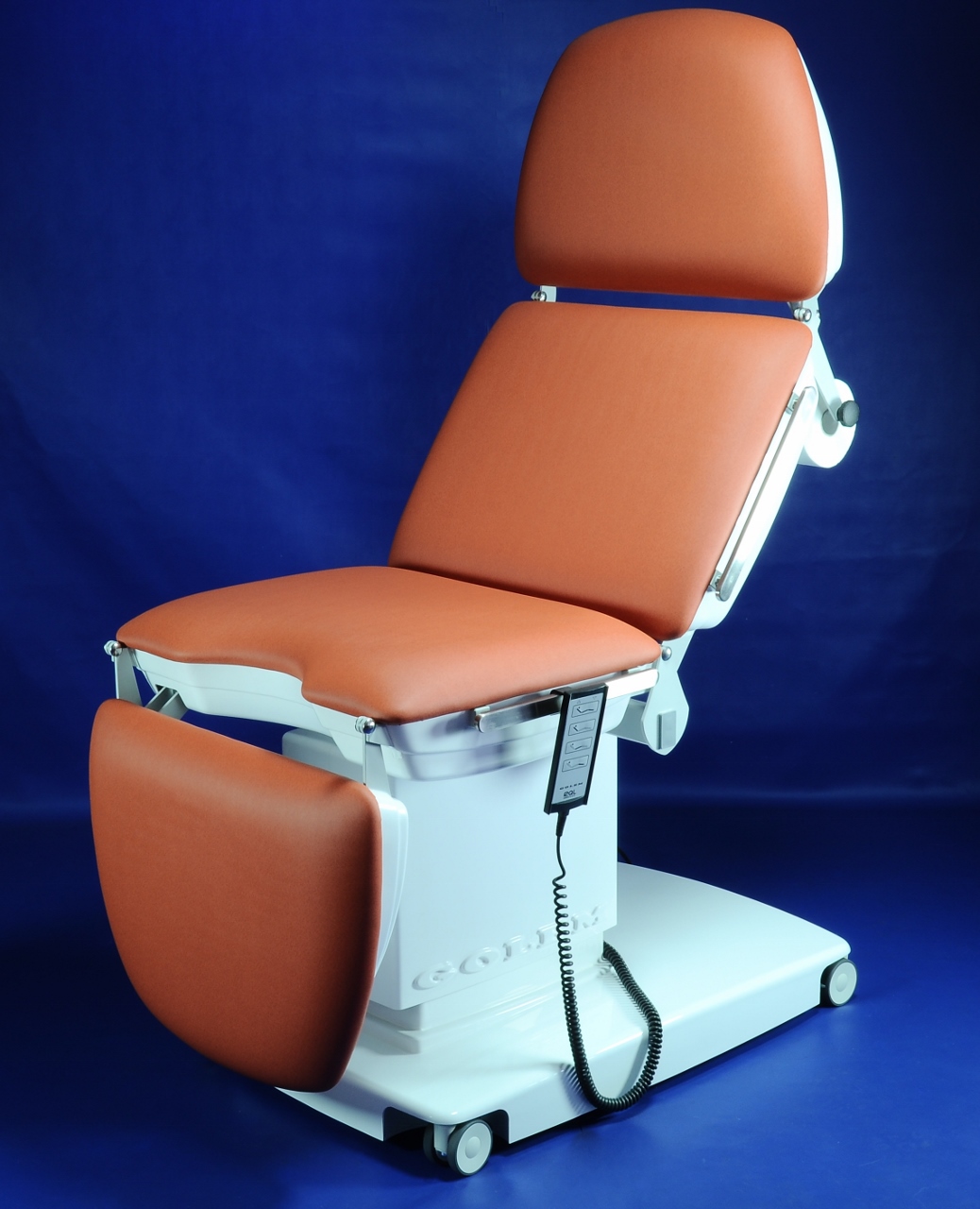

EUROrails on seat segment (pair)
D 04 09
Staniless steel bowl on EUROrail
D 04 08

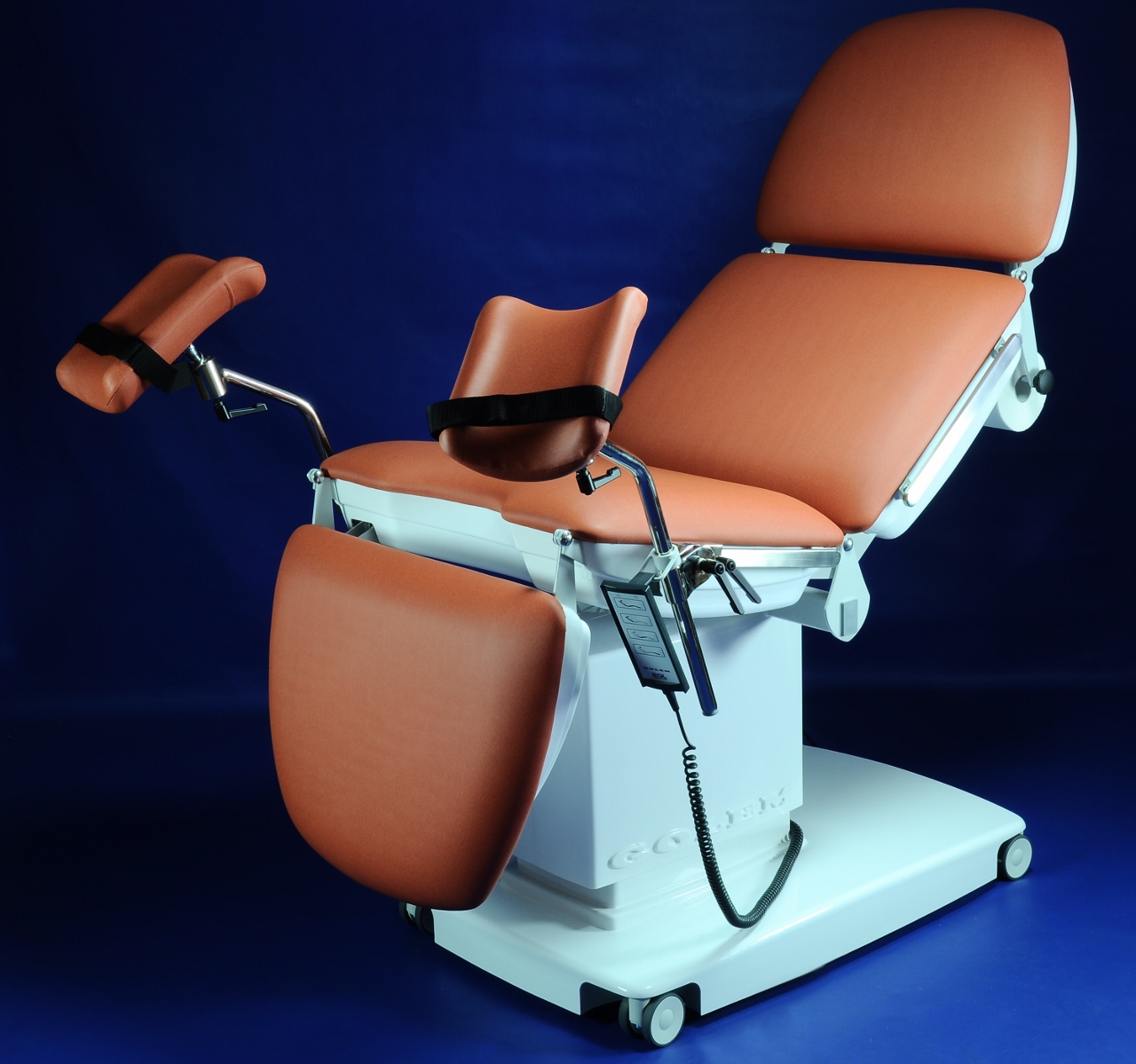

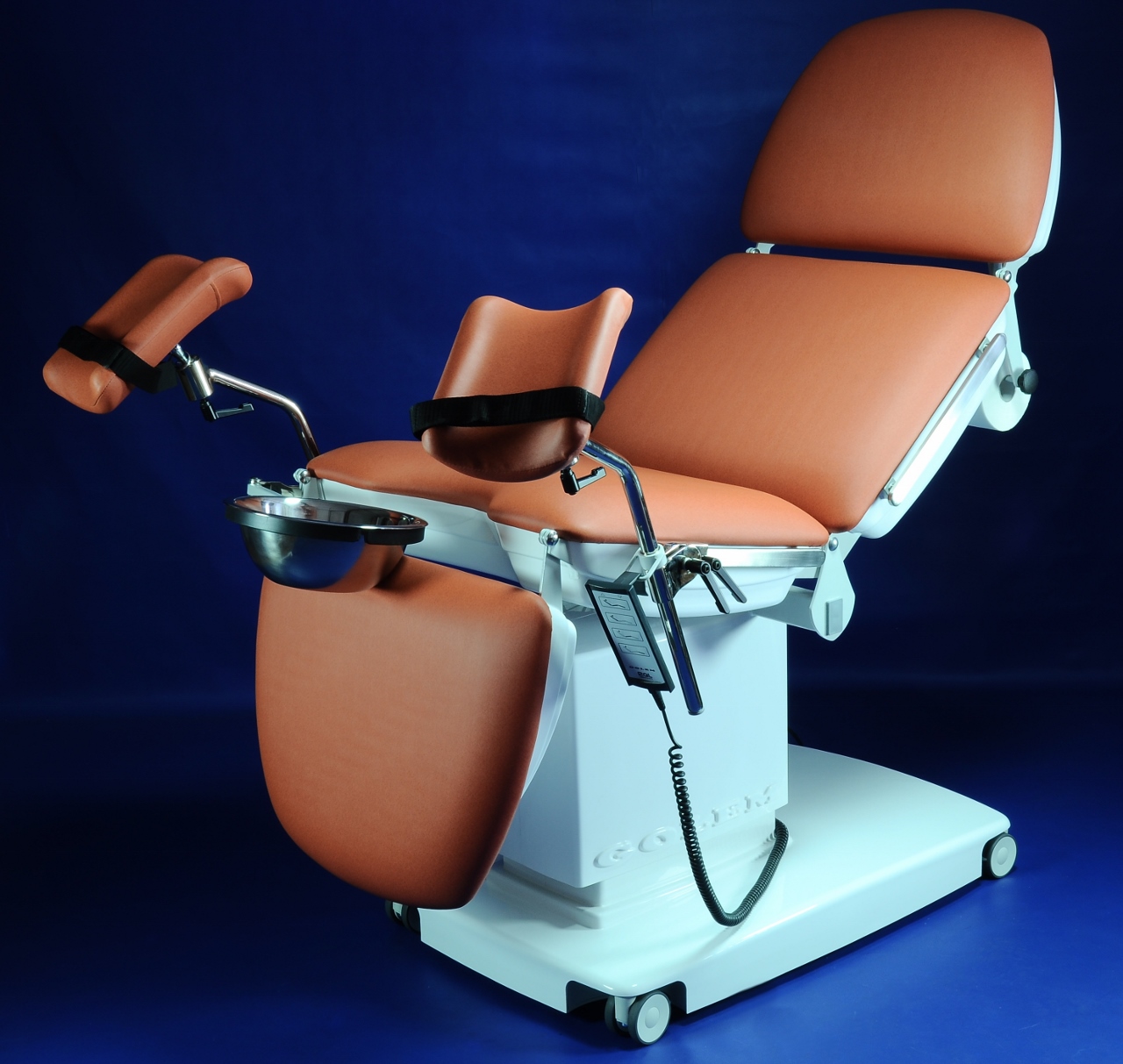

Removable polyurethane Gopel leg supports with a jointed fixture
D 04 11
Leg segment adjustable manually
D 04 93
Leg segment adjustable electric drive
D 04 05
Leg segment whole
D 04 92
Separate leg segments (divided)
D 04 06
Seat segment without GYN opening
D 04 96
Seat segment with GYN opening
D 04 07
Without memory for operating positions
D 04 91
Memory for 3 operating positions
D 04 12
Hand control
D 06 29

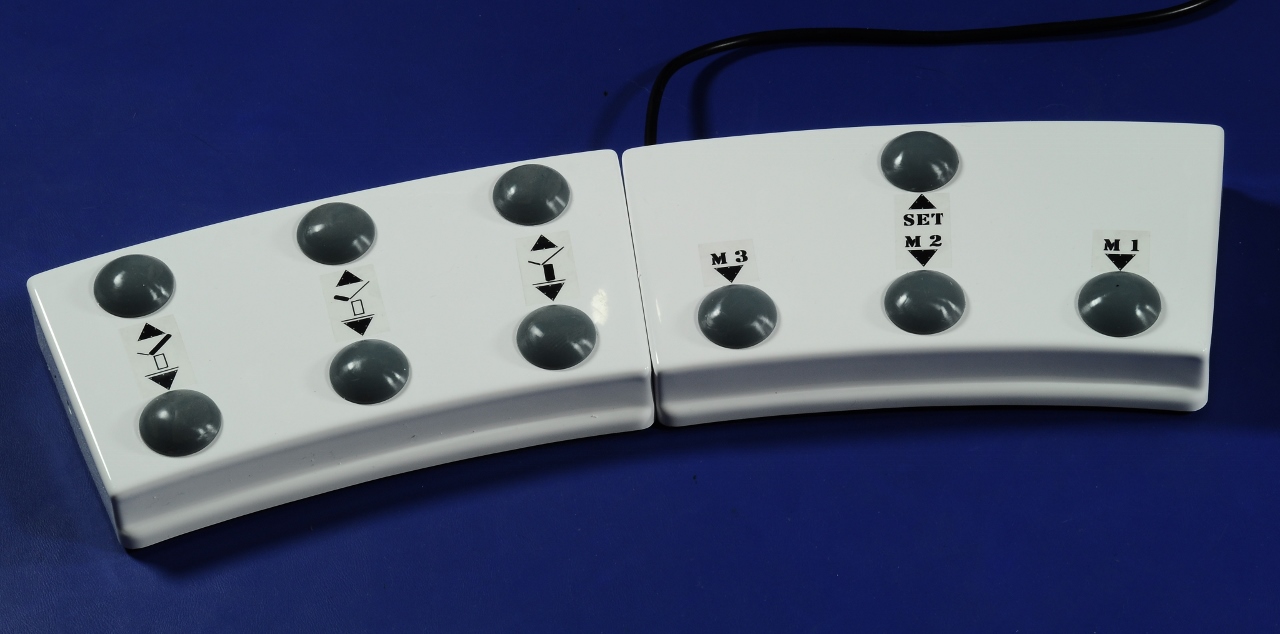

Separate pedal panel instead of hand control
D 06 31
Control by pedal board + hand control together
Small step
D 04 04
Standart head segment

adjustable by gas spring

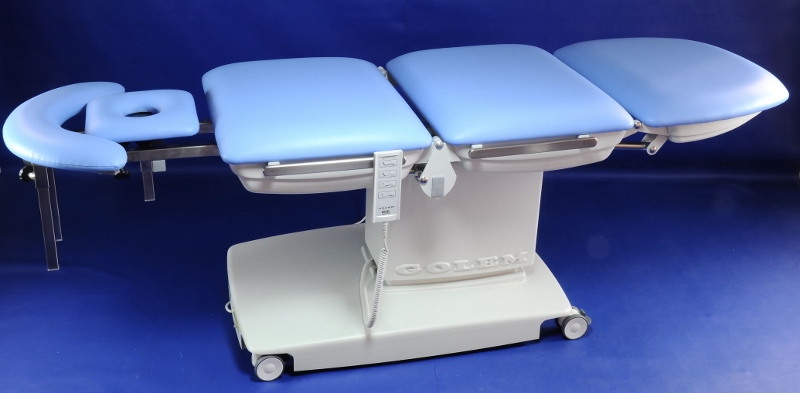

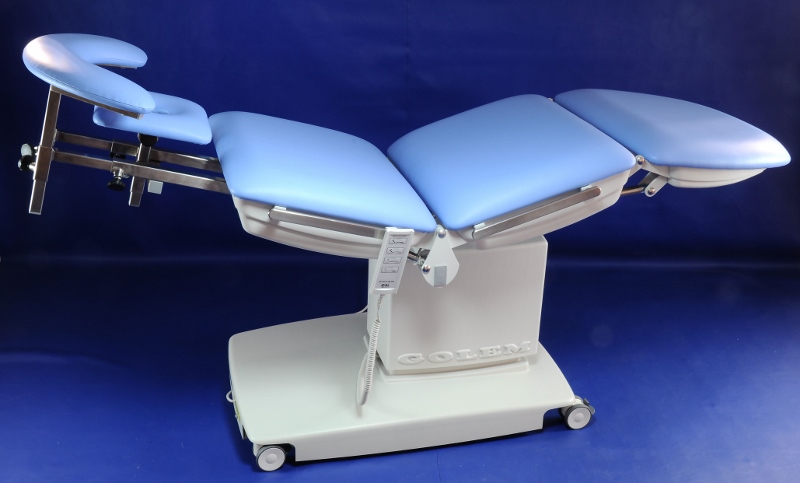

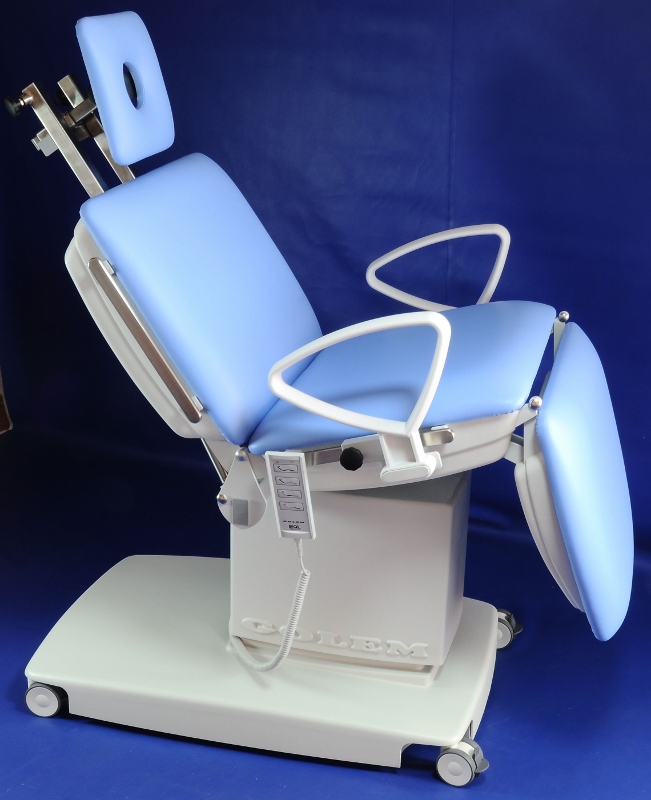

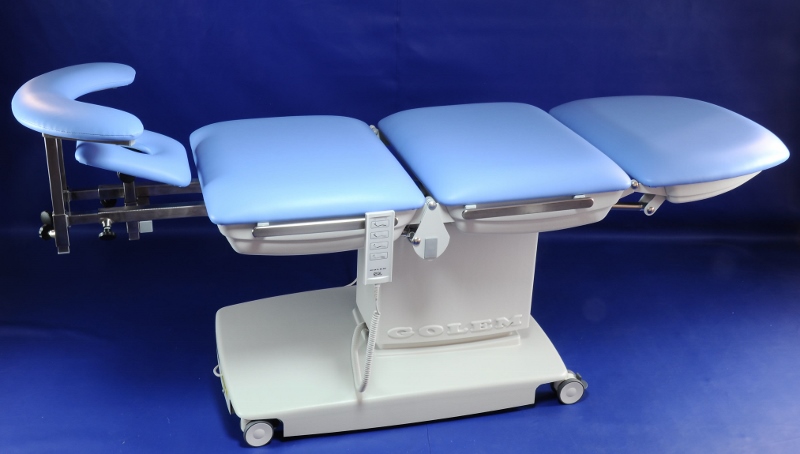

Head holder for eye surgery

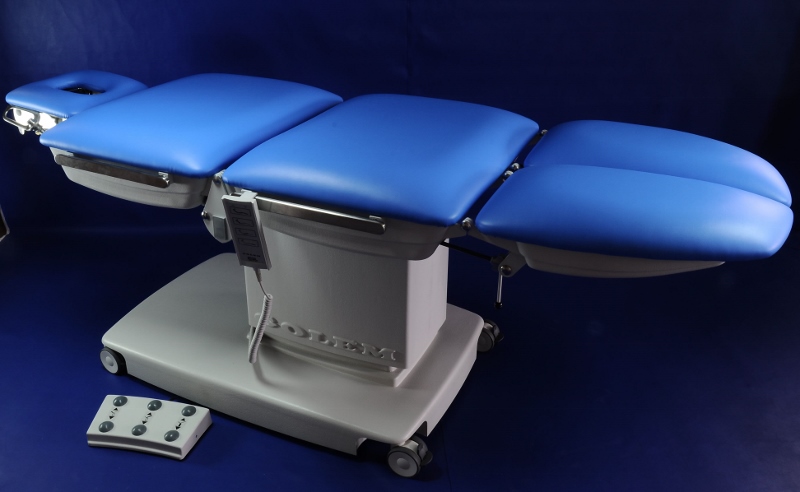

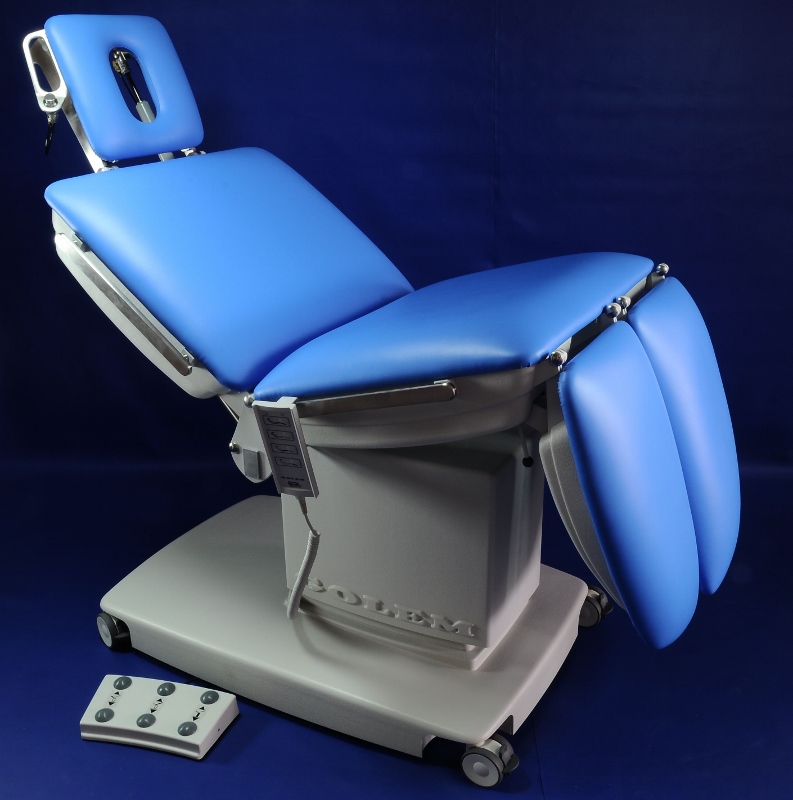

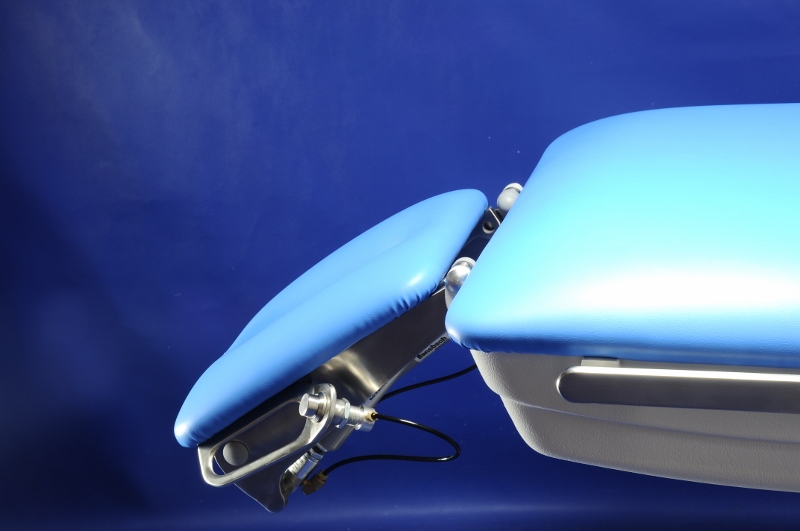

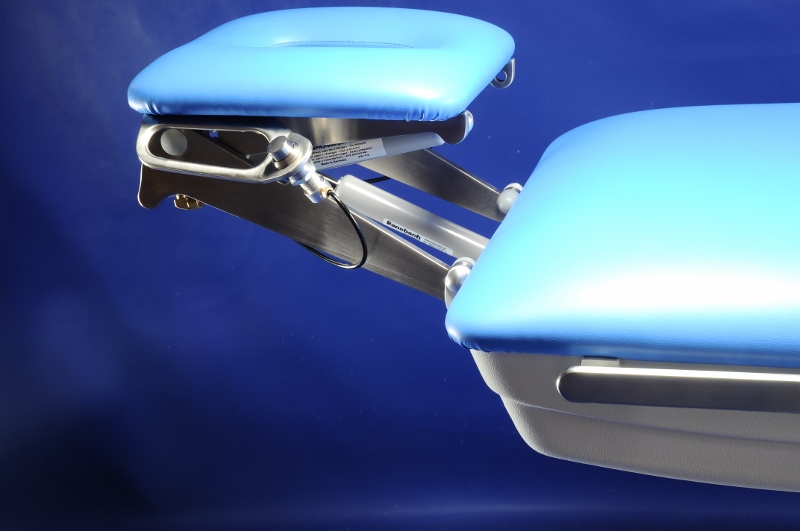

Head holder from operating table

adjustable by 2 gas springs

Sampler

1B


2C


2D


3F


4A


5B


5C


6D


8D


9B


9C


11H


11K


12D


12E


12F


13A


2A


9D


9E


Sampler S1

S1


S2


S3


S4


S5


S6


S7


S8



(download PDF version of your configuration)

Basic information











Billing address










Delivery address












Basic information







Contact person











Billing address










Delivery address











* Required fields
Delivery time is 6 weeks, please contact your distributor for official offer include all details.
