GOLEM 2S – treatment table

271 (1280x1046)272 (1280x893)DSC_3388 (1280x850)DSC_3390 (1280x850)DSC_3394 (1280x850)DSC_3397 (1280x850)DSC_3395 (1280x850)
Configure product

Medical treatment tables are designed for the performing of procedures in all medical areas. You can select a version satisfying all your specific requirements for your and your patient’s optimal position. The number of segments and the method of their adjusting depend purely on your choice. According to your request, the table can be equipped with EUROrails for the fastening of various accessories. Functionality and comfort for you and your patient are always in the first place.

A high level of operator and patient safety and operating hygiene is ensured by the covering of the bottom frame and moving mechanism of the table with washable plastic casings.

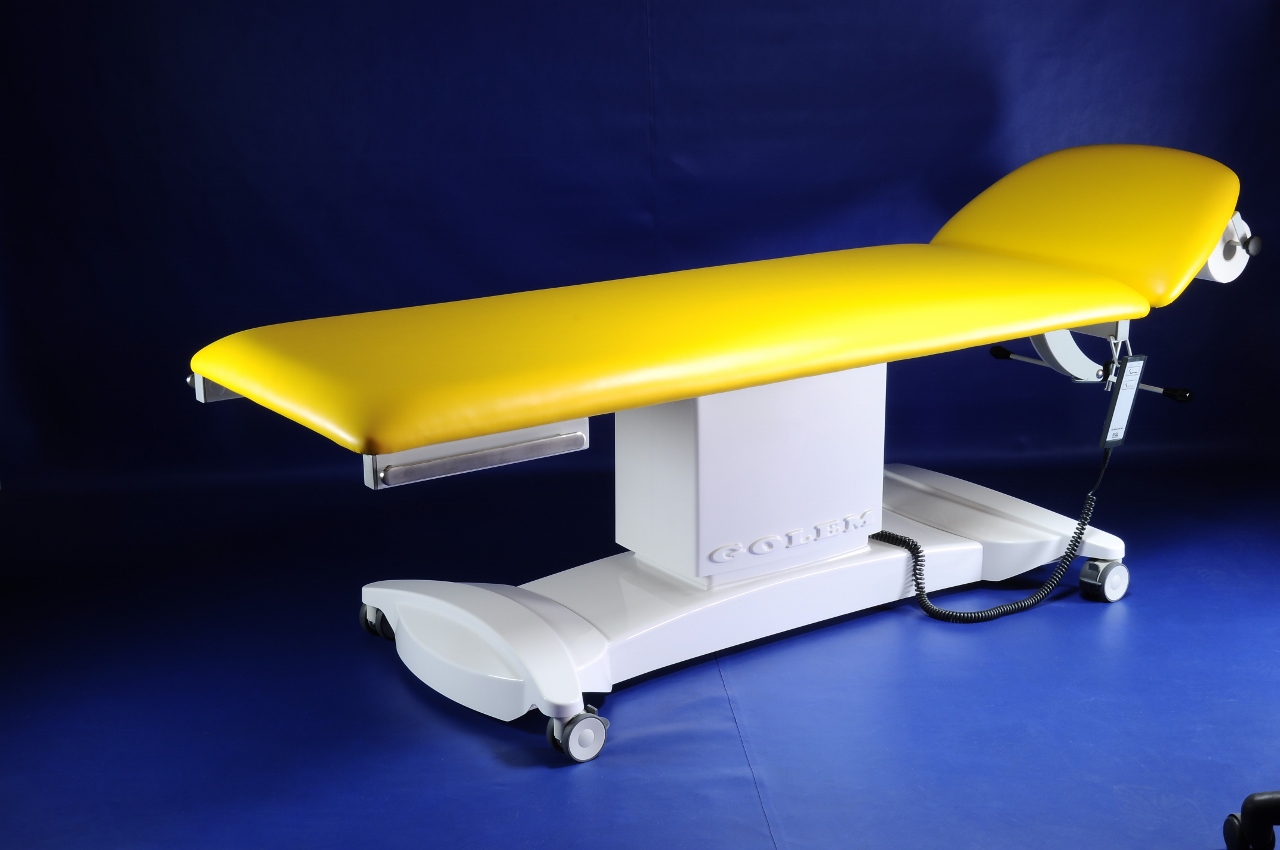

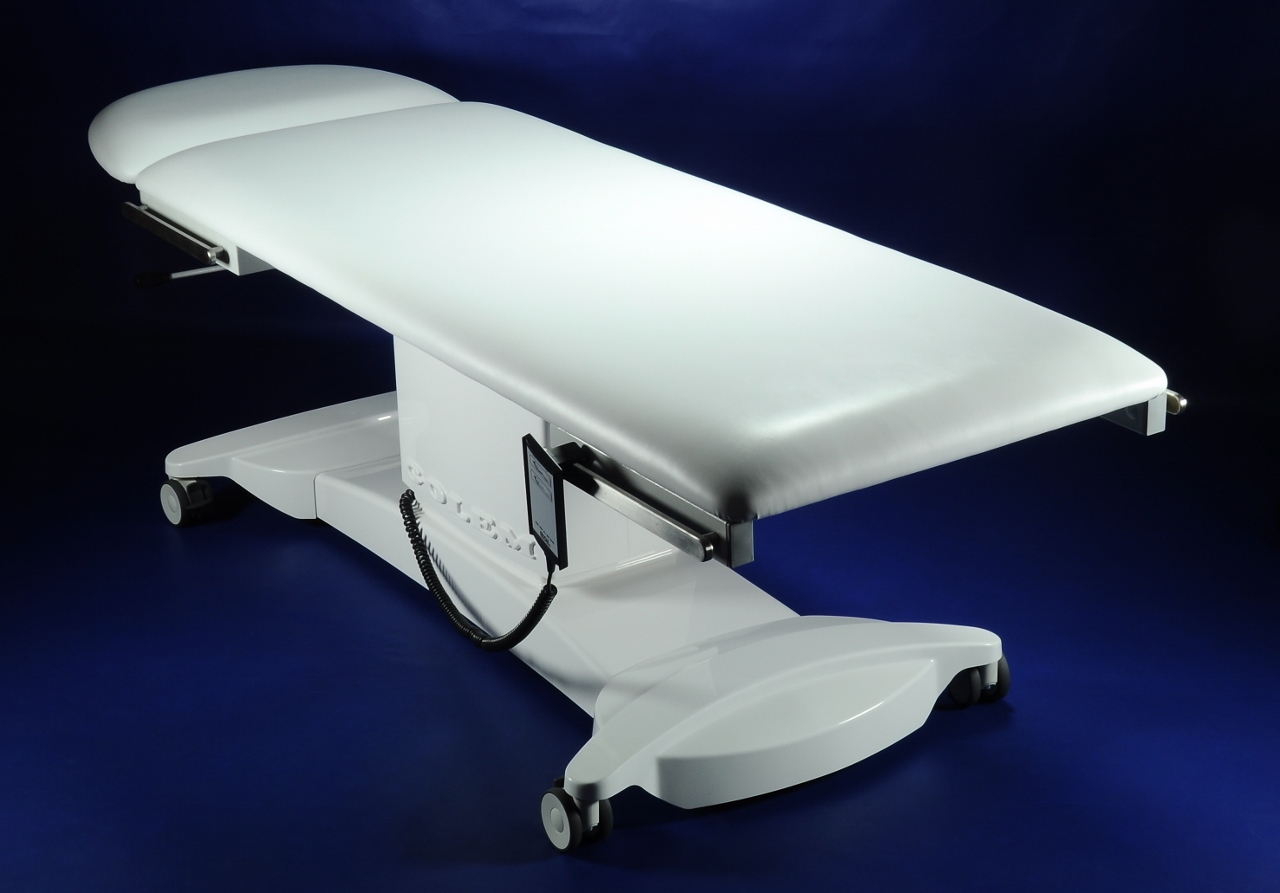

The GOLEM 2S medical treatment table is suitable for the lying position of the patient, but it can also be used for occasional treatment in the gynaecological position. The 630 x 2 000 mm operating surface is covered with artificial leather in a colour of your choice; it is divided into a body and a head segment. All electric drives are operated manually and the positions can be changed even if the table is fully loaded.

The basic version is stationary, it has a paper roll holder under the head, and it is ready for the installation of further elements you request and need for your work (EUROrails and other elements must be specified separately).

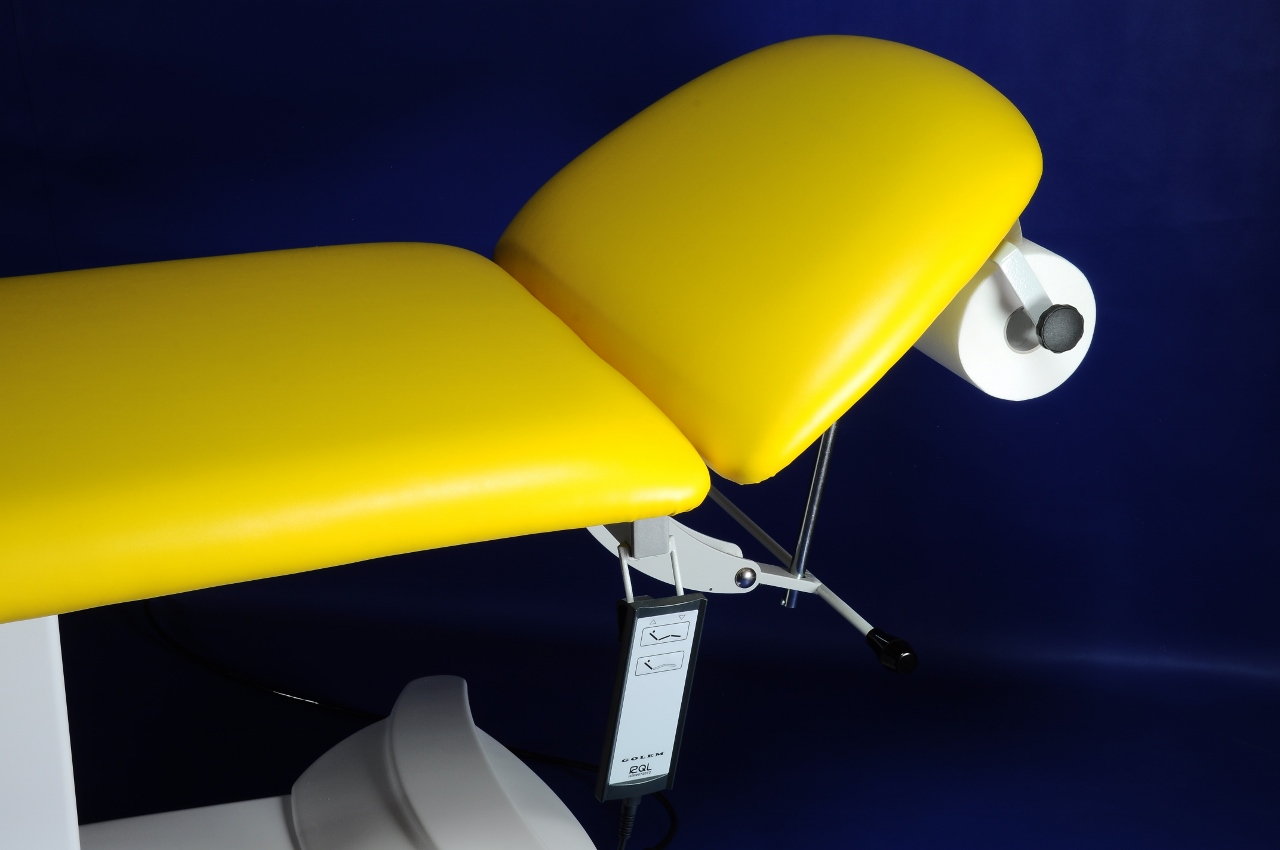

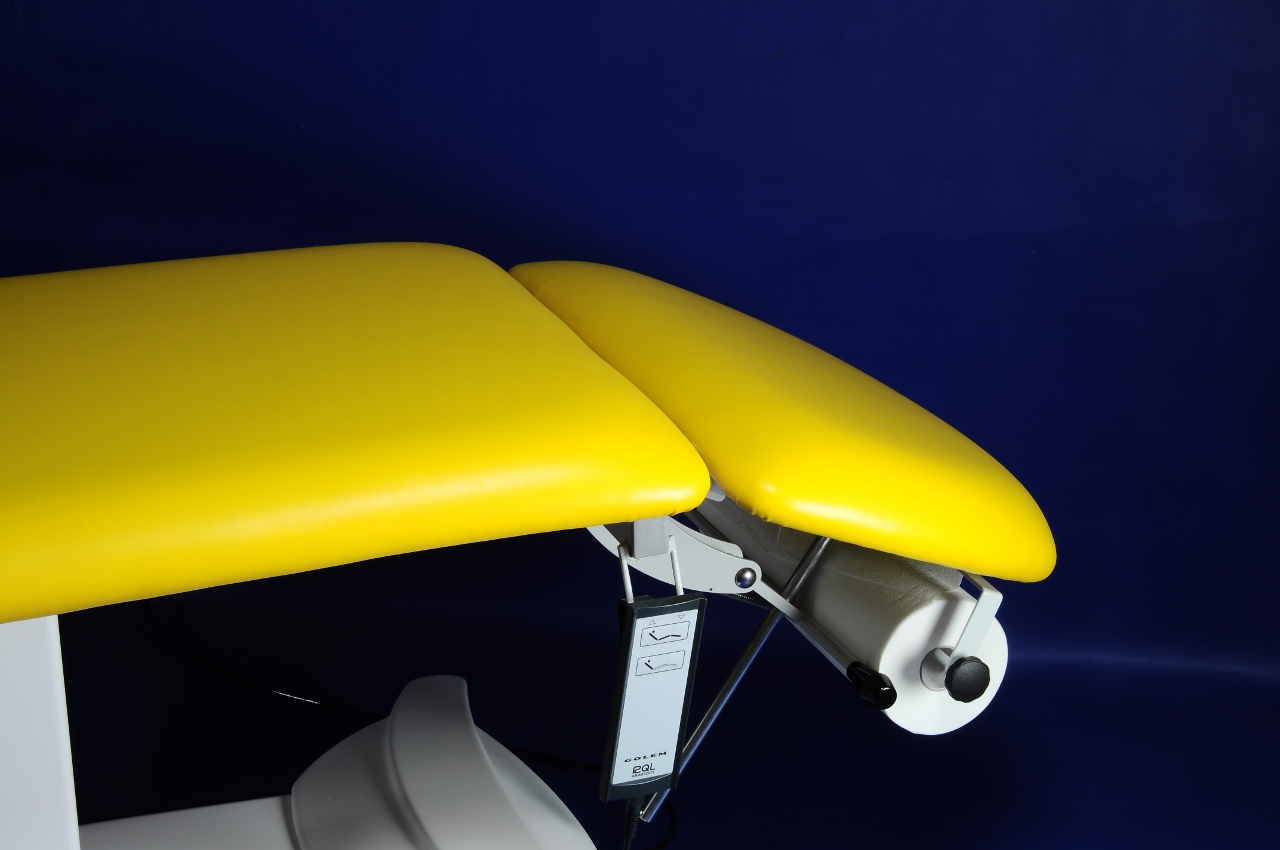

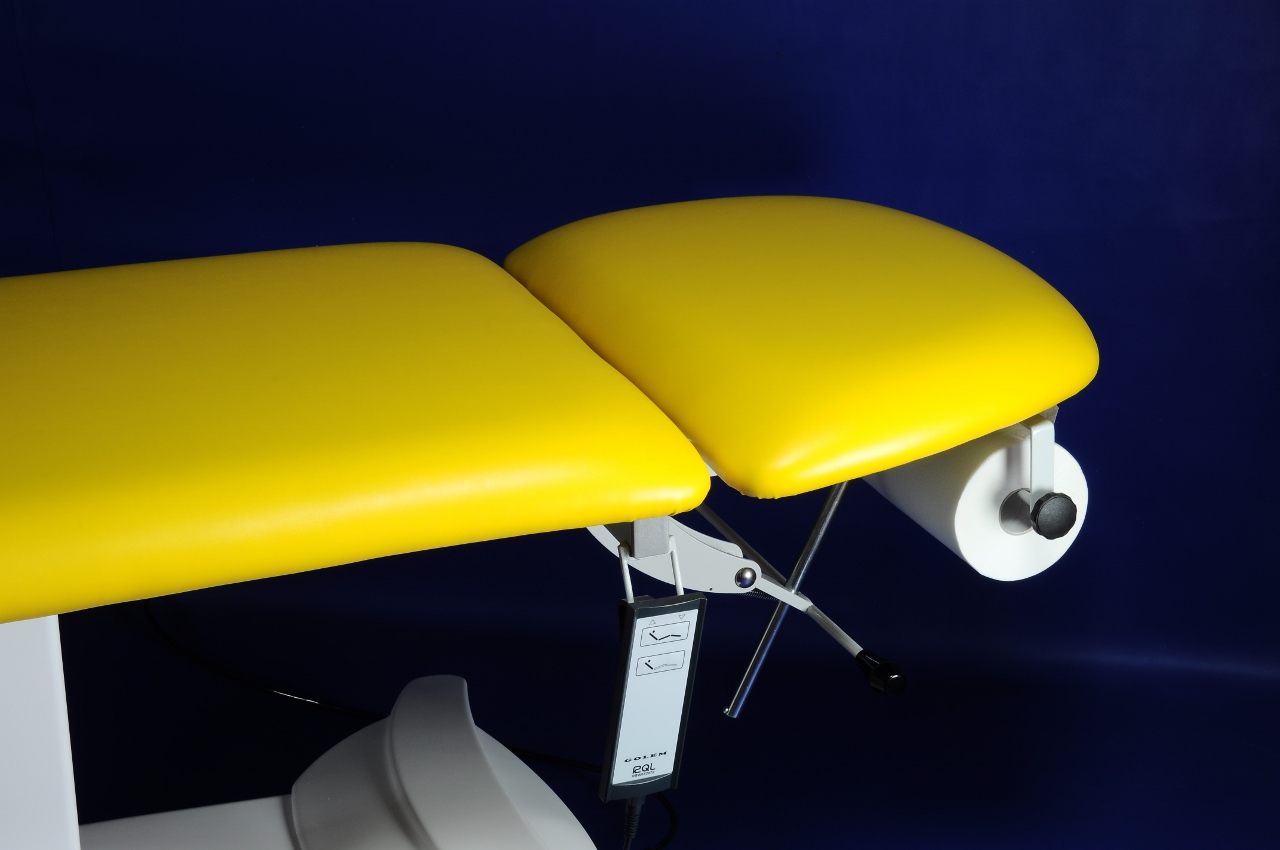

Electric drive adjustable height of 620 – 920 mm, manually adjustable head segment tilt of +- 30°.

The build-in dimensions of the table are approx. 630 x 2 000 mm.

The weight of the table is 94 kg, the carrying capacity is 150 kg.



Brochure GOLEM 2S medical treatment table (PDF)

Product configurator GOLEM 2S – treatment table

Name Picture ID Select
Golem 2S
G 04 01
Stationary with adjustable legs
Braked wheels Ø 75 mm
D 04 01
Without trendelenburg
Electric drive adjustable Trendelenburg 0°+30°
D 04 02
Hand control
Pedal board on cable instead hand control
D 06 31
Small step
D 04 04
Gynecological opening
D 04 07
Without EUROrails around legs
EUROrails around legs (pair)
D 04 09

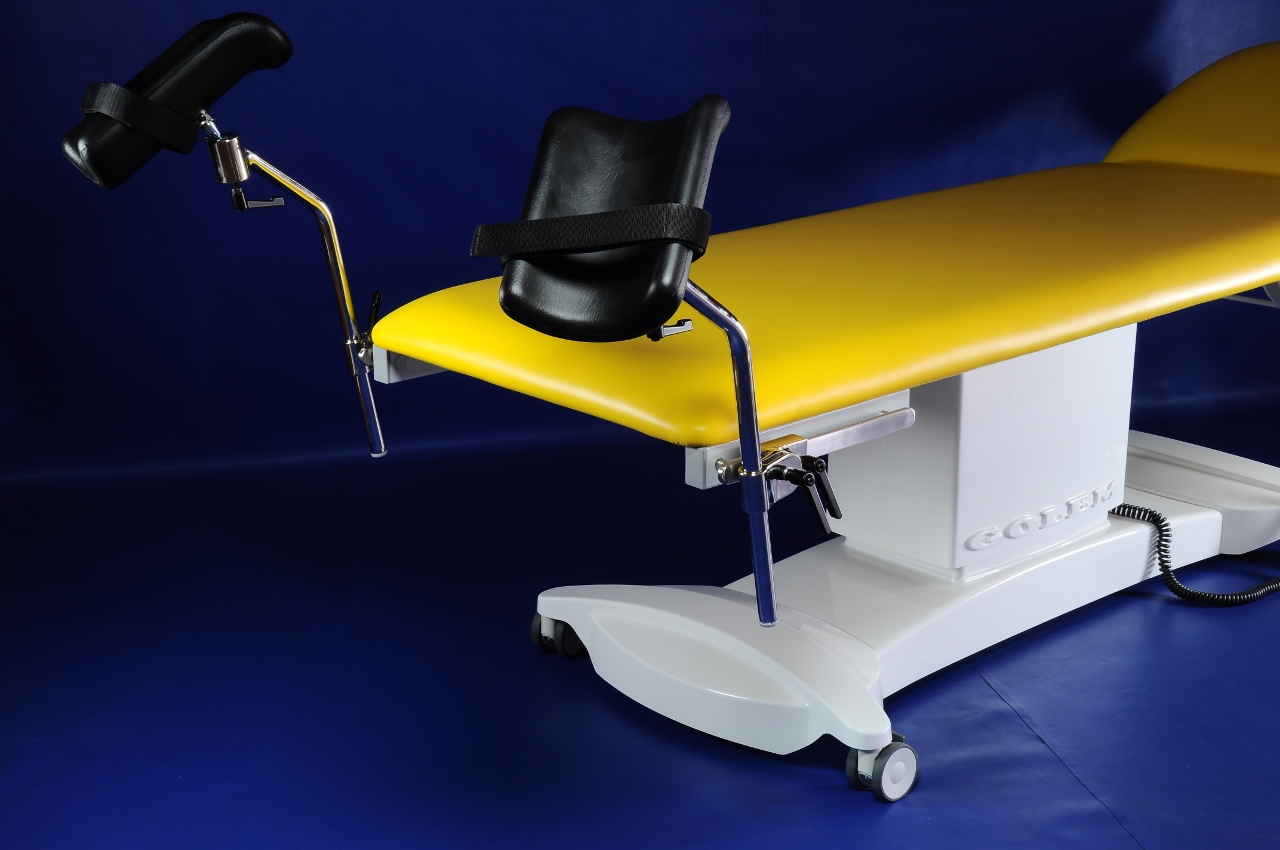

Removable polyurethane Goepel leg supports with a jointed fixture
D 04 11
Without EUROrails around arms
EUROrails around arms (pair)
D 04 10
Hand holder used during infusion
D 06 12
Infusion holder
D 06 13
Mouthpiece holder
D 06 14
Fastening strap
D 06 15

Sampler

1B


2C


2D


3F


4A


5B


5C


6D


8D


9B


9C


11H


11K


12D


12E


12F


13A


2A


9D


9E


Sampler S1

S1


S2


S3


S4


S5


S6


S7


S8



(download PDF version of your configuration)

Basic information











Billing address










Delivery address












Basic information







Contact person











Billing address










Delivery address











* Required fields
Delivery time is 6 weeks, please contact your distributor for official offer include all details.
